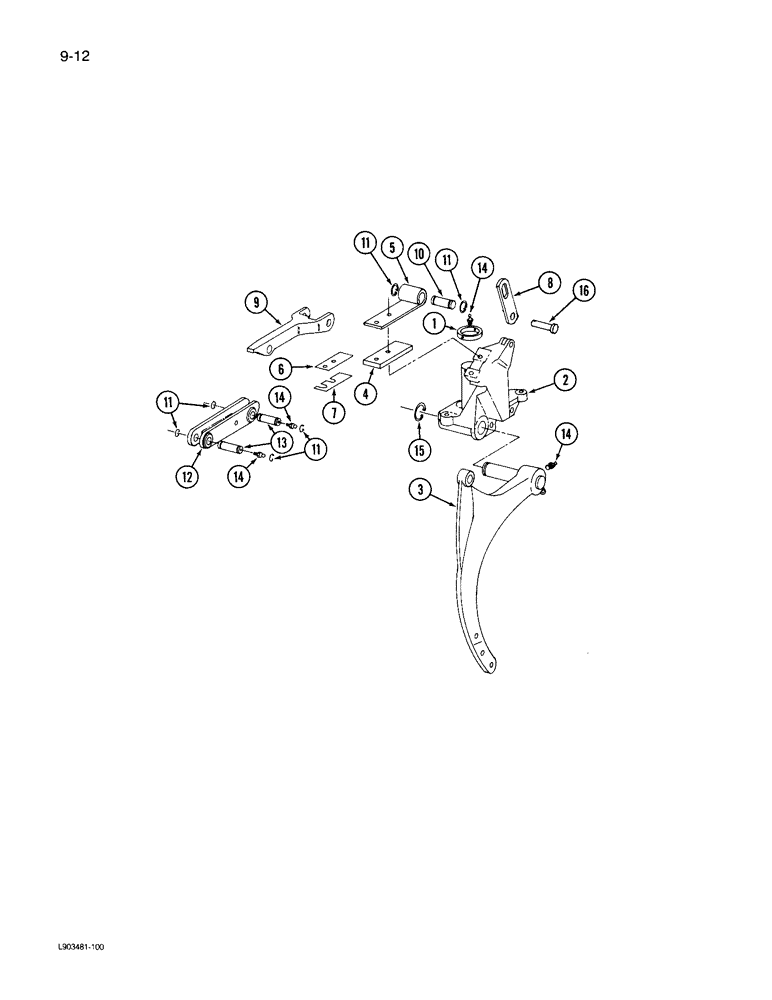

Запчасти Case IH 735 (9-12) - TOGGLE TRIP BEAM UNIT

1

122657C1

SPACER

- bracket pin

1шт.

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

2

122963C1

BRACKET

- toggle trip

1шт.

495-81233

WASHER,2 17/32" x 3 1/2" x .060"

- flat, 2-17/32 x 3-1/2 x 1/16 inch

1шт.

3

122965C2

BEAM

- toggle trip

1шт.

4

62431C1

LARGE PLATE

BAR - spring

1шт.

5

62432C1

SPRING

- toggle trip

1шт.

6

112460C1

SPACER

1шт.

7

112459C2

SHIM

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - lock, external tooth, 3/4 inch

2шт.

8

122999C1

BAR

- restrictor

1шт.

9

61911C4

LINK

- front toggle

1шт.

10

62430C1

PIN

- front toggle link

1шт.

11

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

6шт.

12

131918C1

LINK

- rear toggle (See note A)

1шт.

13

131948C1

PIN

- toggle pivot

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

15

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

16

22928R1

HEADED PIN,3/4" x 2"

PIN - clevis, 3/4 x 2 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.
