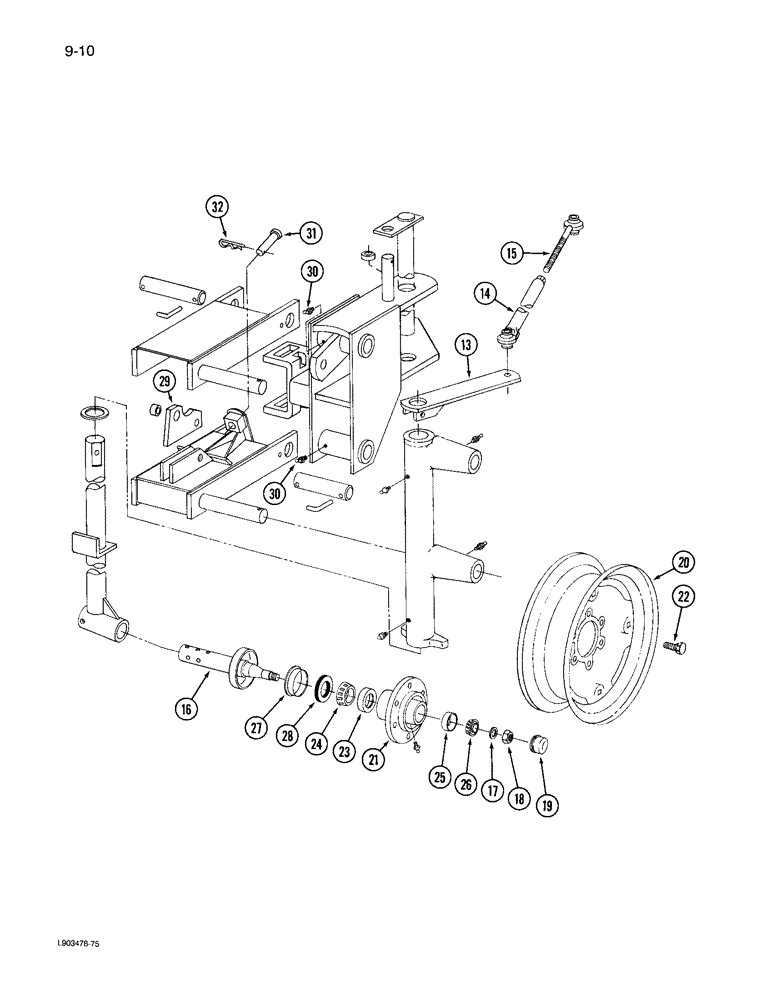

Запчасти Case IH 735 (9-10) - REAR FURROW WHEEL

13

122743C1

ARM

- rear steering

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

1шт.

22244R1

LOCK NUT

- hex lock, 3/4 inch NC

1шт.

14

224124C1

ROD ASSY.

ROD - steering, rear

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

2шт.

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

2шт.

Ref #14 - (680 mm)

1шт.

15

489858R2

LINK ASSY.

LINK - steering

1шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

16

486378R1

SPINDLE

- wheel

1шт.

17

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

1шт.

18

69442D

NUT

- slotted hex, 3/4 inch NF

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

19

663908R1

CAP

- hub

1шт.

20

481344R91

WHEEL

- 14 x 8 inch (Use 9.50L x 14 tire)

1шт.

810768C1

VALVE

- tubeless tire steel

1шт.

21

465493R2

HUB

- wheel, 6 bolt

1шт.

19588R1

FITTING

- grease, straight, 1/4 inch NF

1шт.

22

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

6шт.

23

G57451

BEARING, CUP

CUP - bearing

1шт.

24

G57452

ROLLER BEARING

CONE - bearing

1шт.

25

371883R1

BEARING CUP

Outer

1шт.

26

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

1шт.

27

667564R2

SLEEVE

RING - wear sleeve

1шт.

28

667599R92

SEAL

- wheel hub oil

1шт.

29

131510C2

SUPPORT

- furrow cylinder plate

1шт.

30

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 65 degree, 1/4 inch NF

2шт.

31

22106R1

HEADED PIN,3/4" x 3 3/4"

PIN - 3/4 x 3-3/4 inch

1шт.

495-11081

WASHER,3/4", SAE

6шт.

32

1978738C1

HAIR PIN COTTER

3/16"

1шт.
