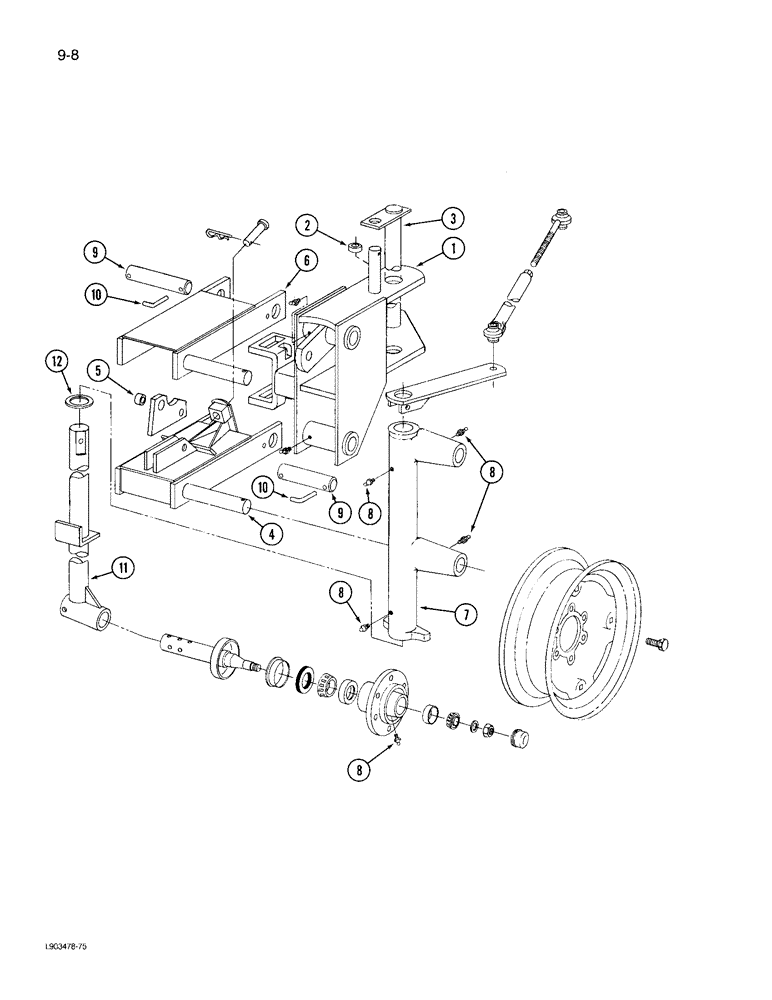

Запчасти Case IH 735 (9-08) - REAR FURROW WHEEL

1

122679C1

CLEVIS

BRACKET - furrow wheel (Used with machines built from 1978 through 1982)

1шт.

1

224268C1

BRACKET

- furrow wheel (Used with machines built after 1982)

1шт.

Ref #1 - (S/B break at 3355 May 1981)

1шт.

2

64601C1

BUSHING

- tension

1шт.

3

122716C1

PIN

- furrow wheel

1шт.

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

432-2440

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

1шт.

4

122719C2

SUPPORT

LINK - lower furrow

1шт.

5

28676R1

SPACER

- 3/4 x 1 inch (Replaces C13756)

1шт.

6

122723C3

SUPPORT

LINK - upper furrow

1шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - 3/4 x 2-1/4 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

7

131518C1

HOUSING

- rear axle

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

5шт.

9

122729C1

PIN

- rear furrow

2шт.

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

6шт.

10

491601R2

PIN

- pivot lock

2шт.

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

11

122739C2

AXLE

- rear

1шт.

12

488175R1

WASHER

- rear furrow wheel (Use one below housing and as required above housing)

1шт.
