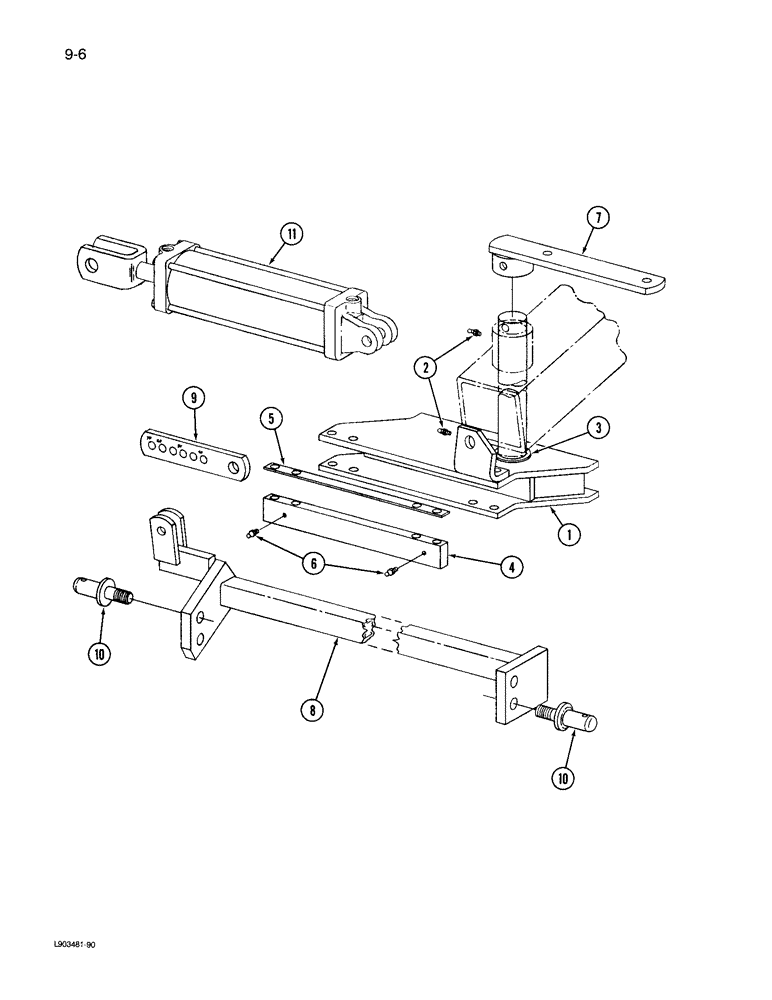

Запчасти Case IH 735 (9-06) - HITCH

1

122732C1

PIVOT

- drawbar

1шт.

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

2шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

4шт.

495-81231

WASHER,2 17/32" x 3 1/4" x .060"

- flat, 2-17/32 x 3-1/4 x 1/16 inch

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

2шт.

3

61625C1

WASHER

- flat, 2-17/32 x 3-1/4 x 7/64 inch

1шт.

4

1344930C1

BAR

- shifting hitch

1шт.

5

122738C1

SHIM

- shifting

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

2шт.

7

543269R1

ARM

- front steering

1шт.

485-16220

SET SCREW,Sq Hd, 5/8"-11 x 1 1/4"

SCREW - set, hex socket, 5/8 x 1-1/4 inch

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

28-1268

BOLT,Hex, 3/4" - 16 x 4-1/4", Gr 8

- hex, 3/4 NF x 4-1/4 inch

1шт.

144424H

LOCK NUT,3/4"-16, GB

NUT - hex, 3/4 inch NF

1шт.

8

122771C1

BAR

CROSSBAR - category III hitch

1шт.

8

224045C1

BAR

CROSSBAR - category II hitch (5 furrow plow)

1шт.

9

122754C1

BAR

- shift

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

1шт.

10

483659R1

STUD

PIN - hitch, category III

1шт.

10

472790R2

STUD

PIN - hitch, category II (5 furrow plow)

1шт.

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.

492-11112

LOCK WASHER,1 1/8"

1 1/8"

2шт.

11

REF

INSTRUCTION

CYLINDER - 3 x 8 inch (See page 8-9)

1шт.
