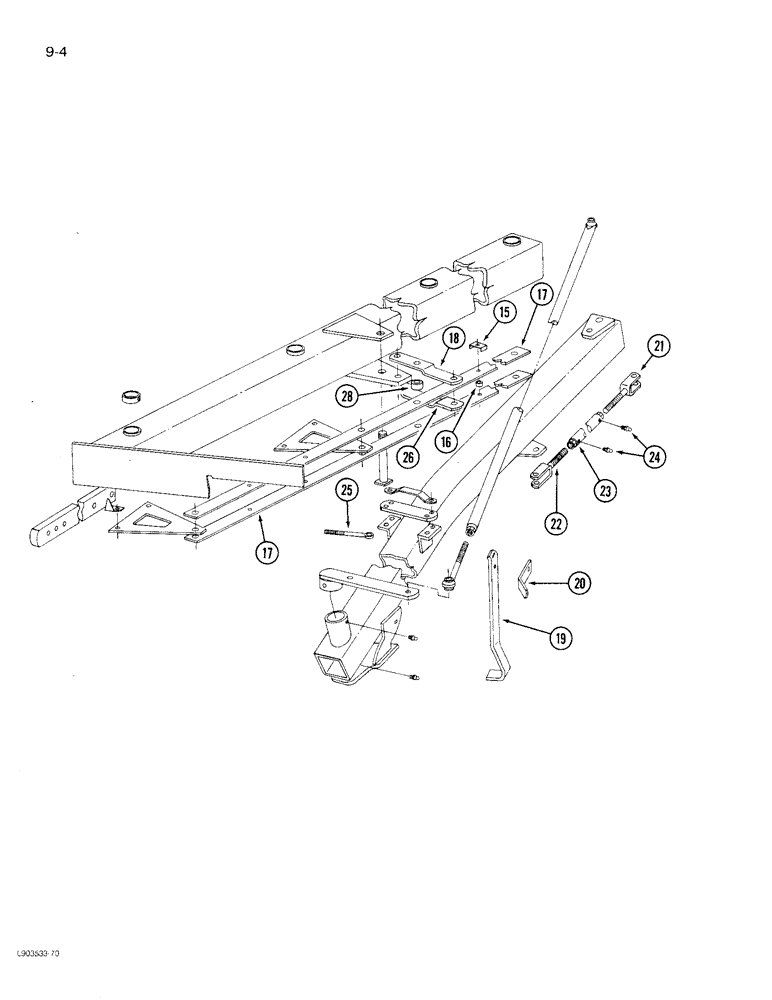

Запчасти Case IH 730 (9-04) - MAIN FRAME, BUILT AFTER 1980

15

131960C1

CLAMP

- hose (4 furrow)

2шт.

15

131960C1

CLAMP

- hose (5 furrow)

3шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

16

304529R1

SPACER

- parallel bar, 5/8 inch (4 furrow)

5шт.

16

304529R1

SPACER

- parallel bar, 5/8 inch (5 furrow)

7шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(4 furrow) Hex, 1/2"-13 x 2", G5

3шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(5 furrow) Hex, 1/2"-13 x 2", G5

4шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch (4 furrow)

2шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch (5 furrow)

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (4 furrow) 1/2"

5шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (5 furrow) 1/2"

7шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (4 furrow) 1/2"-13, G5

5шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (5 furrow) 1/2"-13, G5

7шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC (4 furrow)

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC (5 furrow)

3шт.

17

122947C1

BAR

- parallel (4 furrow)

2шт.

17

131592C1

BAR

- parallel (5 furrow)

2шт.

22983R1

HEADED PIN,1" x 2"

PIN - clevis, 1 x 2 inch (4 furrow)

4шт.

22983R1

HEADED PIN,1" x 2"

PIN - clevis, 1 x 2 inch (5 furrow)

5шт.

18

122942C1

SUPPORT

- cylinder rockshaft

1шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch

1шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32" (4 furrow)

10шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32" (5 furrow)

12шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2" (4 furrow)

6шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2" (5 furrow)

7шт.

19

224024C1

STAND

BAR - stand

1шт.

433-1052

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 3-1/4 inch

1шт.

20

544098R1

SUPPORT

HANDLE - stand

1шт.

21

488287R1

FORK

YOKE - turnbuckle, left

1шт.

22

488288R1

FORK

YOKE - turnbuckle, right

1шт.

516773R1

NUT

- special jam

1шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN - clevis, 1 x 2-7/16 inch

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

23

480249R1

TRUSS ROD

TURNBUCKLE

1шт.

24

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

25

131961C1

BOLT

EYEBOLT - landing

1шт.

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

26

131959C1

SUPPORT

- lower

1шт.

28

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

1шт.
