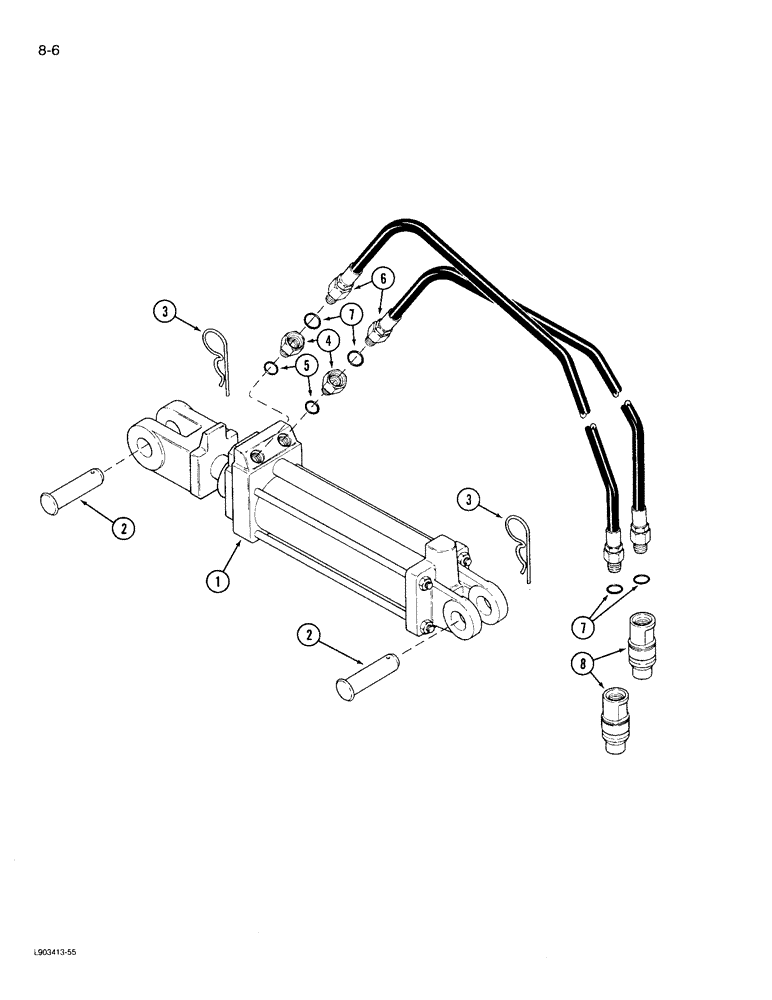

Запчасти Case IH 730 (8-6) - HYDRAULIC EQUIPMENT, WIDTH ADJUSTING

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - 2-1/2 bore x 8 inch stroke (See page 8-9)

1шт.

2

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

2шт.

3

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

2шт.

4

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female o-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

407094R91

HOSE ASSY.

HOSE - hydraulic, 1/2 x 84 inch

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

8

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

1шт.

8

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

1шт.

8

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 thread (ISO Standard)

1шт.

8

1285718C2

QUICK MALE COUPLING

- self sealing male, 3/4-16 thread (ISO Standard)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used with 7/8-14 thread coupler

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 3/4"-16 thread coupler

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 3/4-16 x 7/8-14 thread (Adapt 3/4-16 fitting to 7/8-14 coupler)

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 7/8-14 x 3/4-16 thread (Adapt 7/8-14 fitting to 3/4-16 coupler)

1шт.

1282459C1

PACKAGE

KIT - coupler tag, color coded

1шт.
