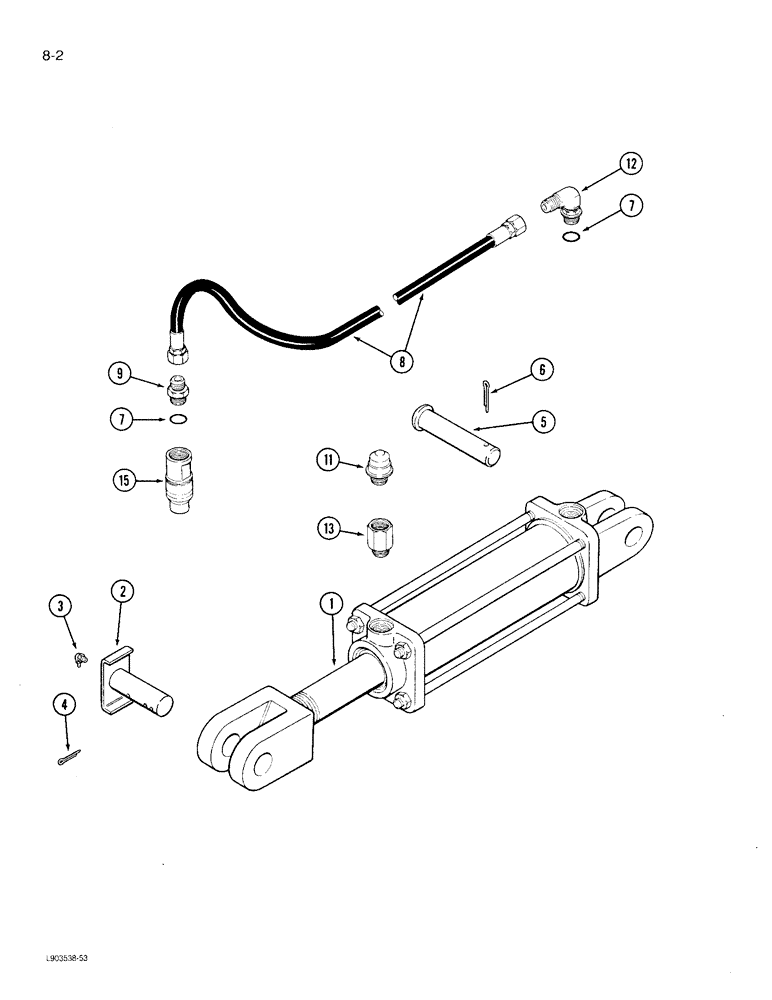

Запчасти Case IH 730 (8-2) - HYDRAULIC EQUIPMENT, REAR FURROW WHEEL

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, 3 x 8 inch (See page 8-5)

1шт.

2

1256856C1

PIN

- non-rotating

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

4

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

5

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

1шт.

6

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

1284330C1

HOSE

- hydraulic, 3/8 x 240 inch (4 furrow plows)

1шт.

8

129673C2

HOSE

- 3/8 x 280 inch (5 furrow plows)

1шт.

9

1284339C1

CONNECTOR, ELEC

REDUCER - straight, 7/8-14 flare x 9/16-18 inch flare (4 furrow plows)

1шт.

11

65970C2

BREATHER ASSY.

FILTER - breather, 3/8 inch PT

1шт.

12

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj o-ring

1шт.

13

1344872C1

FITTING

ADAPTER - 3/4-16 male x 3/8 inch female PT

1шт.

15

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

1шт.

15

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

1шт.

15

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 thread (ISO Standard)

1шт.

15

1285718C2

QUICK MALE COUPLING

- self sealing male, 3/4-16 thread (ISO Standard)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used with 7/8-14 thread coupler

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 3/4"-16 thread coupler

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 3/4-16 x 7/8-14 thread (Adapt 3/4-16 fitting to 7/8-14 coupler)

1шт.

407545R1

FITTING

BUSHING - reducer, 7/8-14 x 3/4-16 thread (Adapt 7/8-14 fitting to 3/4-16 coupler)

1шт.

1282459C1

PACKAGE

KIT - coupler tag, color coded

1шт.
