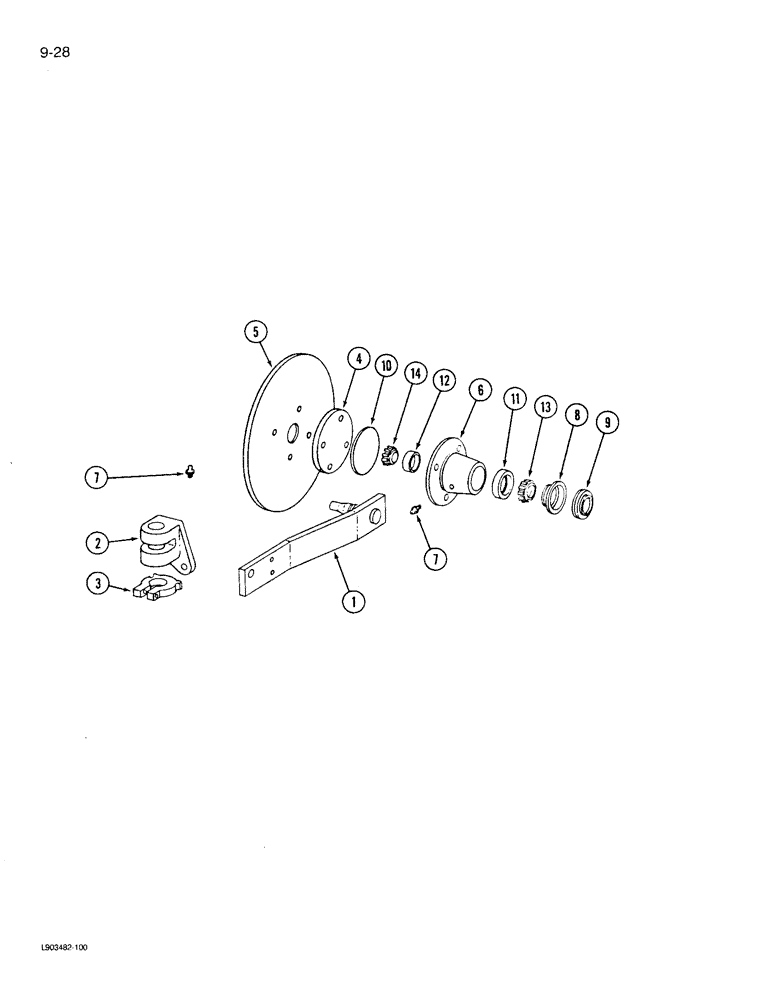

Запчасти Case IH 730 (9-28) - ROLLING COLTER, SHEAR BOLT TYPE WITH 22 INCH DISC

1

112540C1

ARM

- colter

1шт.

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

69442D

NUT

- slotted hex, 3/4 inch NF

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

1шт.

2

462273R3

SUPPORT ASSY.

SUPPORT - colter arm

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

3

112844C1

COLLAR CLAMP

CLAMP - colter stop

1шт.

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

4

112524C1

COVER

- reinforcing plate

1шт.

5

112538C1

DISC

- colter, 22 inch plain

1шт.

5

122567C1

DISC

- colter, 22 inch ripple edge

1шт.

6

122711C1

HUB

- wheel

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

2шт.

8

472222R1

SLEEVE

- oil seal

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

10

41-3044

PLUG,Exp, 2 3/4"

- wheel hub, 2-3/4 inch

1шт.

11

651817R1

BEARING CUP

CUP - bearing

1шт.

12

651814R1

BEARING CUP

CUP - bearing

1шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing

1шт.

14

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing

1шт.

14

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.
