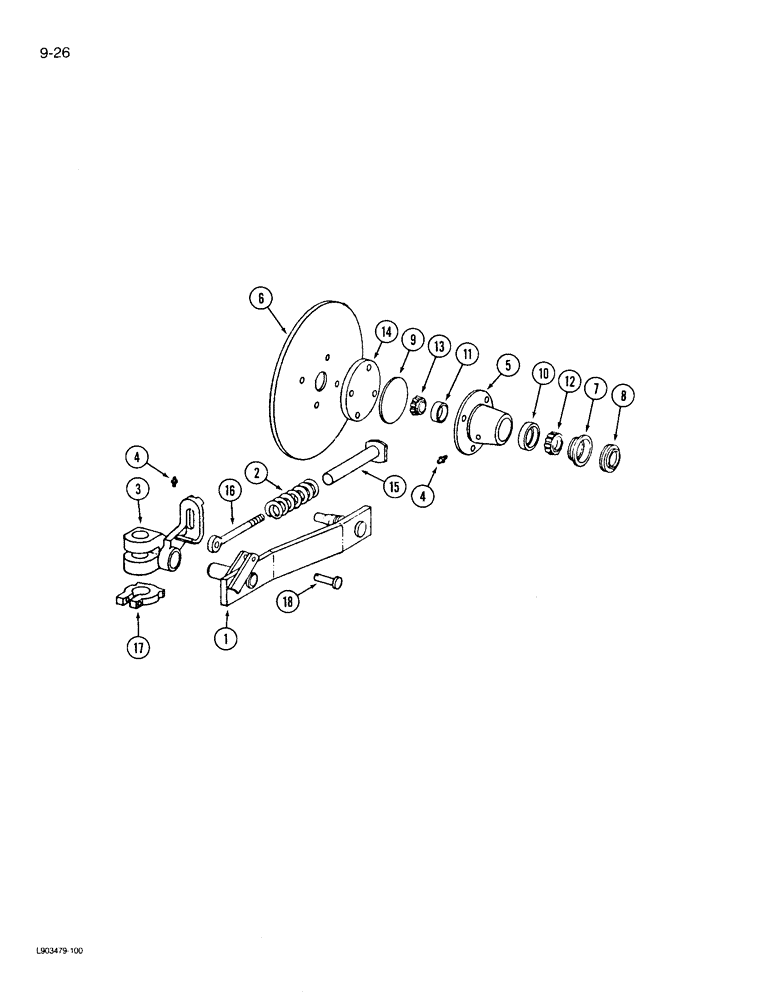

Запчасти Case IH 730 (9-26) - ROLLING COLTER, HIGH LIFT SPRING CUSHION TYPE WITH 22 INCH DISC

1

112535C1

ARM

- colter

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/32 inch

1шт.

69442D

NUT

- slotted hex, 3/4 inch NF

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

1шт.

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

2

112536C1

SPRING

- cushion

1шт.

3

122520C1

SUPPORT

- colter mounting

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

2шт.

5

122711C1

HUB

- wheel

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

112538C1

DISC

- colter, 22 inch plain

1шт.

6

122567C1

DISC

- colter, 22 inch ripple edge

1шт.

7

472222R1

SLEEVE

- oil seal

1шт.

8

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

9

172602

SUPPORT

- wheel hub, 2-3/4 inch

1шт.

10

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing

1шт.

11

651814R1

BEARING CUP

CUP - bearing

1шт.

12

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing

1шт.

13

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing

1шт.

13

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

14

112524C1

COVER

- reinforcing plate

1шт.

15

109058C1

TUBE,16 - 22 mm ID, 35 mm OD

- spring adjusting

1шт.

16

131669C1

BOLT

- eye

1шт.

17

112844C1

COLLAR CLAMP

CLAMP - colter stop

1шт.

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

18

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN - clevis, 1/2 x 1-3/4 inch

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.
