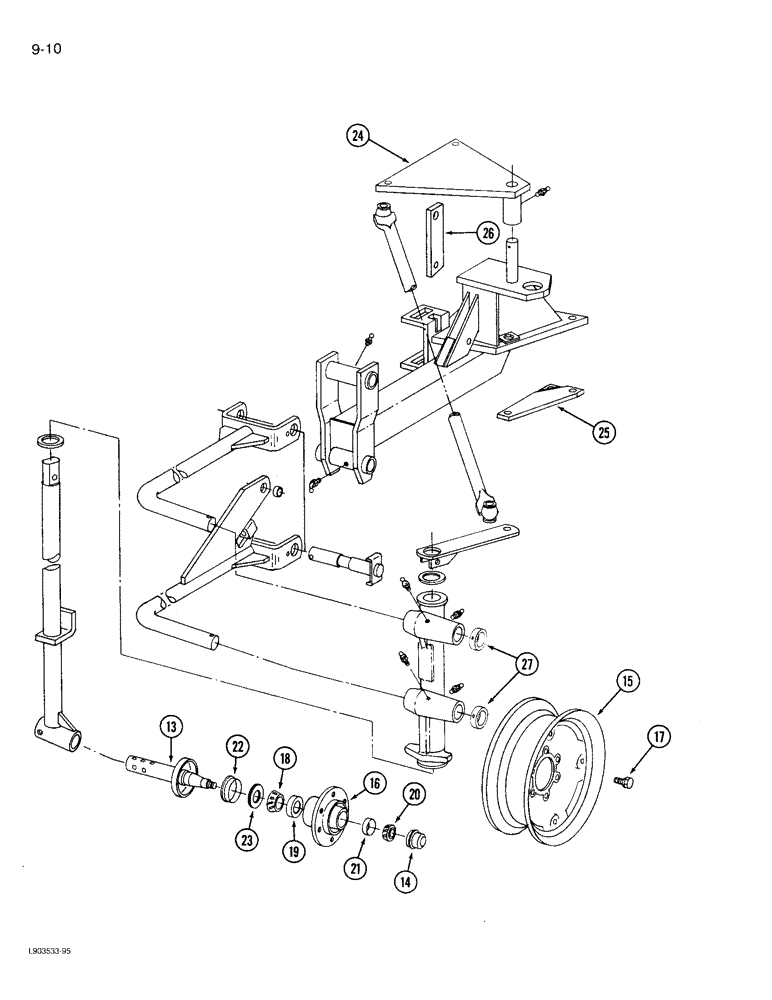

Запчасти Case IH 730 (9-10) - REAR FURROW WHEEL

13

486378R1

SPINDLE

- wheel

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

1шт.

69442D

NUT

- slotted hex, 3/4 inch NF

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

14

663908R1

CAP

- hub

1шт.

15

481344R91

WHEEL

- 14 x 8 inch (Use 9.5L-14 6 ply tire)

1шт.

810768C1

VALVE

- tubeless tire steel

1шт.

16

465493R2

HUB

- wheel, 6 bolt

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

17

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

6шт.

18

G57452

ROLLER BEARING

CONE - bearing, inner

1шт.

19

G57451

BEARING, CUP

CUP - bearing, inner

1шт.

20

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

1шт.

21

371883R1

BEARING CUP

Outer

1шт.

22

667564R1

RING

- oil seal wear

1шт.

23

667599R91

OIL SEAL

- wheel hub oil

1шт.

24

224135C1

ARM

- center steering

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

25

131942C1

PLATE

- bracket reinforcing

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

1шт.

26

122931C1

BAR

- cylinder arm

1шт.

21377R1

HEADED PIN,3/4" x 2"

PIN - clevis, 3/4 x 2 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

366112R1

WASHER

- flat, 25/32 x 1-1/4 x 7/64 inch

2шт.

27

224279C1

SPACER

- link end bushing

2шт.
