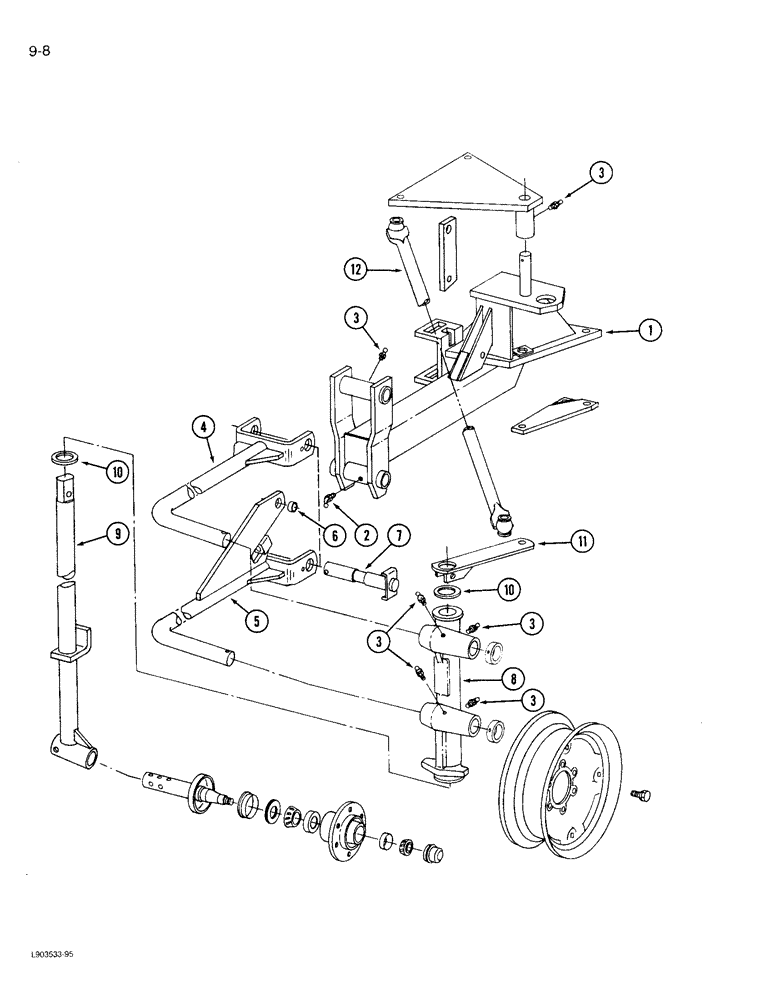

Запчасти Case IH 730 (9-08) - REAR FURROW WHEEL

1

122924C1

FRAME

- furrow wheel

1шт.

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4 NC x 3 inch, Grade 8

2шт.

23053R1

NUT

- hex lock, 3/4 inch NC, Grade 8

2шт.

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

4шт.

2

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch long

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

5шт.

4

224014C1

LINK

- rear wheel, upper

1шт.

5

224013C91

LINK

- rear wheel, lower

1шт.

6

64601C1

BUSHING

- tension

1шт.

22909R1

HEADED PIN,3/4" x 3"

PIN - clevis, 3/4 x 3 inch

1шт.

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch

5шт.

1978738C1

HAIR PIN COTTER

3/16"

1шт.

PO11463

SPACER,3/4" Pipe x 11/16"

- 21/32 inch

1шт.

7

224031C1

PIN

- pivot lock

2шт.

495-81204

WASHER,1 9/32" x 2" x .036"

- flat, 1-9/32 x 2 x 1/32 inch

1шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

432-2430

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

2шт.

8

61248C2

HOUSING

- rear axle

1шт.

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

2шт.

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 3/32 inch

1шт.

9

61249C2

CENTER AXLE

AXLE - rear

1шт.

10

488175R1

WASHER

- rear axle (Use 1 below rear axle housing and as required above housing)

1шт.

11

224133C2

ARM

- rear steering

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

1шт.

21621R1

LOCK NUT,3/4"-10

NUT - hex lock, 3/4 inch NC

1шт.

12

224137C2

LINK

- rear steering

1шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

2шт.

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

2шт.
