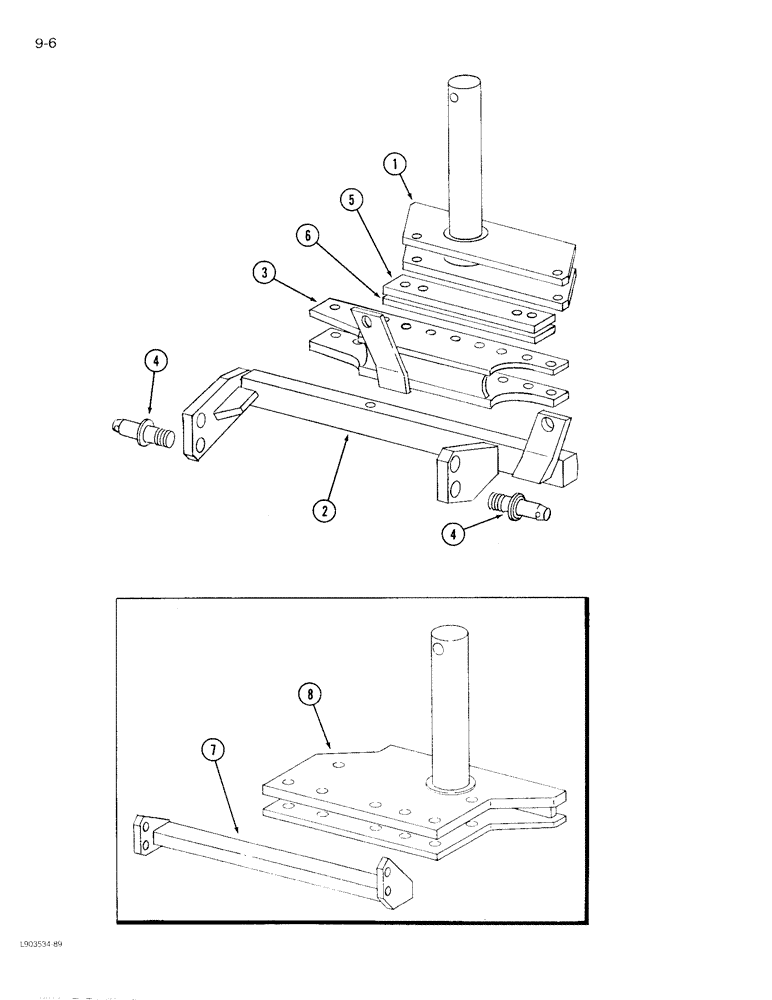

Запчасти Case IH 730 (9-06) - HITCH
№
Артикул
Название
Примечание
Количество
1
541190R1
PIVOT
- hitch (Cat. II Shifting)
1шт.
495-81231
WASHER,2 17/32" x 3 1/4" x .060"
- flat, 2-17/32 x 3-1/4 x 1/16 inch (See note)
1шт.
61625C1
WASHER
- flat, 2-17/32 x 3-1/4 x 7/64 inch
1шт.
28-1268
BOLT,Hex, 3/4" - 16 x 4-1/4", Gr 8
- hex, 3/4 NF x 4-1/4 inch, Grade 8
1шт.
144424H
LOCK NUT,3/4"-16, GB
NUT - hex lock, 3/4 NF, Grade 8
1шт.
2
492254R1
BAR
- hitch (Cat. II Shifting)
1шт.
3
492263R1
GUIDE
- hitch (Cat. II Shifting)
1шт.
Ref # 3 (492263R1) is a poor picture. The correct picture can be found in the 700 Moldboard Plow book on page AG-24 (in Support Pro), ref # 9. SMA 10/12/98
1шт.
426-1276
BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 8
- hex, 3/4 NC x 4-3/4 inch, Grade 8
2шт.
492-11075
LOCK WASHER,3/4"
3/4"
2шт.
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC
2шт.
16964R91
FITTING
- grease, 1/4 inch 90 degree
1шт.
19688R1
LUBE NIPPLE,1/4"-28 x .44" lg
FITTING - grease, 1/4 inch NF without check ball
1шт.
4
472790R2
STUD
PIN - hitch (Cat. II and Cat. II shifting)
2шт.
4
483659R1
STUD
PIN - hitch (Cat. III)
2шт.
425-1118
NUT,1 1/8"-12, G5
- hex, 1-1/8 inch NC
2шт.
492-11112
LOCK WASHER,1 1/8"
1 1/8"
2шт.
5
541152R1
BAR
- guide, top (Cat. II Shifting)
1шт.
6
541153R1
BAR
- guide, bottom (Cat. II Shifting)
1шт.
7
541158R1
BAR
CROSSBAR - Cat. II
1шт.
413-1260
BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5
- hex, 3/4 NC x 3-3/4 inch
6шт.
492-11075
LOCK WASHER,3/4"
3/4"
6шт.
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC
6шт.
7
541160R1
BAR
CROSSBAR - Cat. III
1шт.
413-1260
BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5
- hex, 3/4 NC x 3-3/4 inch
6шт.
492-11075
LOCK WASHER,3/4"
3/4"
6шт.
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC
6шт.
8
541106R2
PIVOT
- hitch (Cat. II and III)
1шт.
495-81231
WASHER,2 17/32" x 3 1/4" x .060"
- flat, 2-17/32 x 3-1/4 x 1/16 inch (See note)
1шт.
61625C1
WASHER
- flat, 2-17/32 x 3-1/4 x 7/64 inch
1шт.
28-1268
BOLT,Hex, 3/4" - 16 x 4-1/4", Gr 8
- hex, 3/4 NF x 4-1/4 inch, Grade 8
1шт.
144424H
LOCK NUT,3/4"-16, GB
NUT - hex lock, 3/4 NF, Grade 8
1шт.
Выбрано товаров: 32
