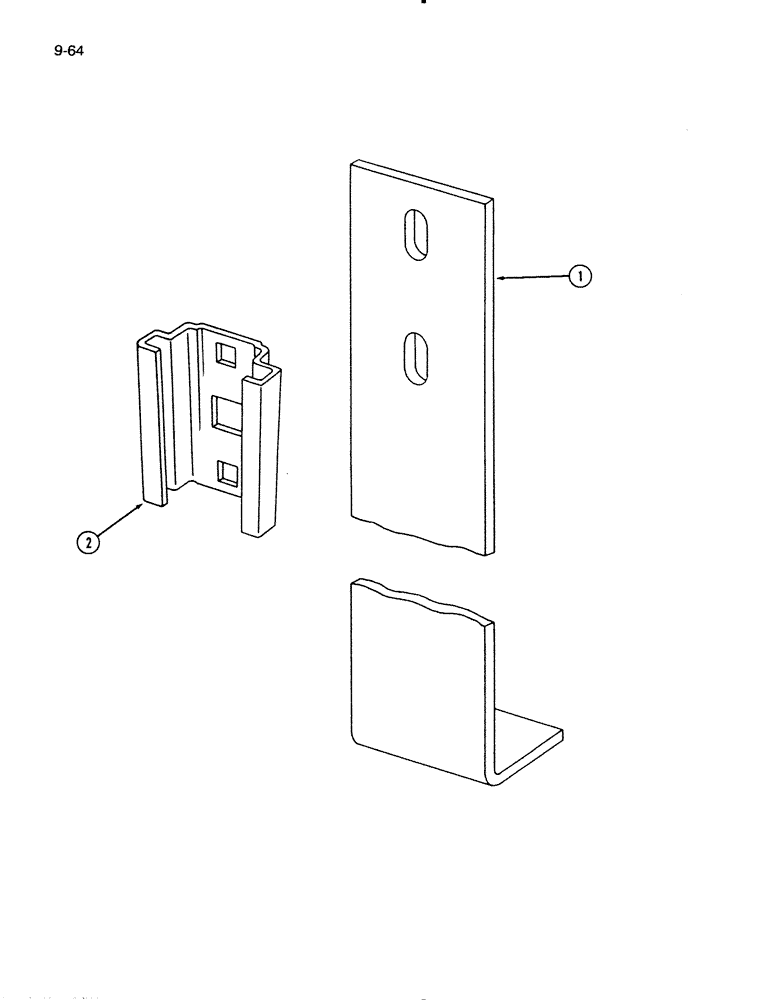

Запчасти Case IH 720 (9-64) - SAFETY LAMP SOCKET UNIT, PLOWS BUILT PRIOR TO JUNE 1983 (09) - CHASSIS/ATTACHMENTS

1

131946C1

SUPPORT

BRACKET - SMV and safety lamp

1шт.

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

2

A59457

BRACKET

SOCKET - safety lamp bracket (Replaces 398976R1)

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
