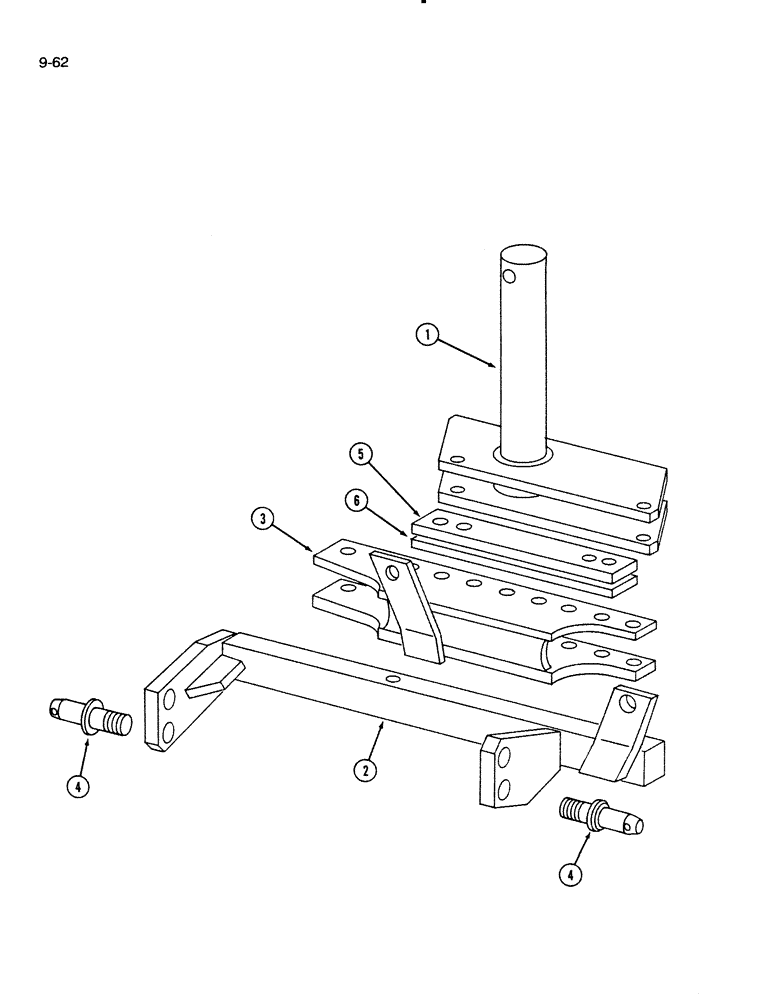

Запчасти Case IH 720 (9-62) - THREE-POINT SHIFTING HITCH, IN THE FURROW (09) - CHASSIS/ATTACHMENTS

1

541190R1

PIVOT

ASSEMBLY - shifting hitch

1шт.

495-81231

WASHER,2 17/32" x 3 1/4" x .060"

- flat, 2-17/32 x 3-1/4 x 1/16 inch

1шт.

61625C1

WASHER

- flat, 2-17/32 x 3-1/4 x 7/64 inch

1шт.

28-1268

BOLT,Hex, 3/4" - 16 x 4-1/4", Gr 8

- hex, 3/4 NF x 4-1/4 inch

1шт.

144424H

LOCK NUT,3/4"-16, GB

NUT - lock, 3/4 inch NF

1шт.

2

492254R1

BAR

ASSEMBLY - shifting hitch, Category II

1шт.

3

492263R1

GUIDE

ASSEMBLY - shifting hitch

1шт.

Ref # 3 (492263R1) is a poor picture. The correct picture can be found in the 700 Moldboard Plow book on page AG-24 (in Support Pro), ref # 9. SMA 10/12/98

1шт.

426-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 8

- hex, 3/4 NC x 4-3/4 inch, Grade 8

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING - grease, straight, 1/4-28 NF

1шт.

4

472790R2

STUD

- hitch lower

2шт.

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.

492-11112

LOCK WASHER,1 1/8"

1 1/8"

2шт.

5

541152R1

BAR

- guide top

1шт.

6

541153R2

BAR

- guide lower

1шт.
