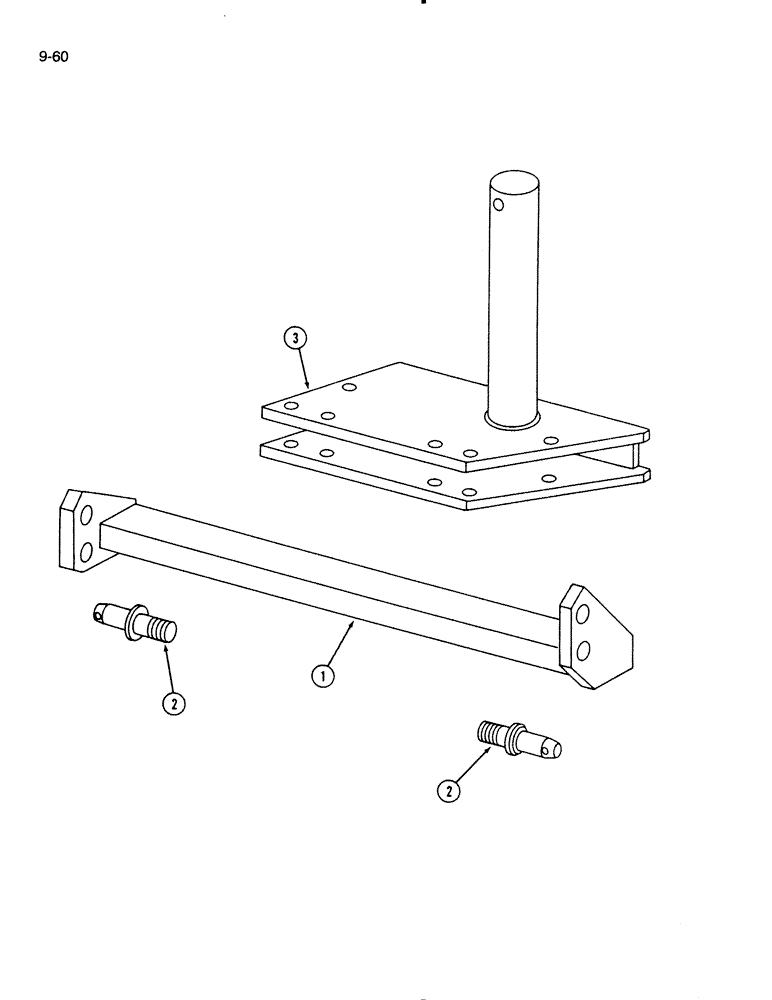

Запчасти Case IH 720 (9-60) - THREE-POINT HITCH, RIGID (09) - CHASSIS/ATTACHMENTS

1

122864C91

BAR

CROSSBAR ASSEMBLY

1шт.

For use on 5 and 6 furrow with Category II on the land type plows and three-point hitch tractors.

1шт.

1

122865C91

BAR

CROSSBAR ASSEMBLY

1шт.

For use on 5 and 6 furrow with Category II on the land type plows and three-point hitch tractors.

1шт.

For use on 7 and 8 furrow with Category III on the land type plows and three-point hitch tractors.

1шт.

50061K

SPACER,1" Tube x 3/4"

- 1 x 3/4 inch

2шт.

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex, 3/4 NC x 6 inch, grade 8

1шт.

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, Grade 8

1шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

1шт.

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

2шт.

1

541158R1

BAR

CROSSBAR ASSEMBLY

1шт.

For use on 4 to 6 furrow with Category II spread in the furrow type plows and three-point hitch tractors.

1шт.

1

541160R1

BAR

CROSSBAR ASSEMBLY

1шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch

6шт.

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

425-1012

NUT,3/4"-10, G5

6шт.

2

472790R2

STUD

- hitch lower

2шт.

For use on 5 and 6 furrow with Category II on the land type plows and three-point hitch tractors.

1шт.

For use on 4 to 6 furrow with Category II spread in the furrow type plows and three-point hitch tractors.

1шт.

2

483659R1

STUD

- hitch lower

2шт.

For use on 5 and 6 furrow with Category II on the land type plows and three-point hitch tractors.

1шт.

For use on 7 and 8 furrow with Category III on the land type plows and three-point hitch tractors.

1шт.

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.

492-11112

LOCK WASHER,1 1/8"

1 1/8"

2шт.

3

541106R2

PIVOT

ASSEMBLY - drawbar

1шт.

For use on 4 to 6 furrow with Category II spread in the furrow type plows and three-point hitch tractors.

1шт.

495-81231

WASHER,2 17/32" x 3 1/4" x .060"

- flat, 2-17/32 x 3-1/4 x 1/16 inch

1шт.

61625C1

WASHER

- flat, 2-17/32 x 3-1/4 x 7/64 inch

1шт.

28-1268

BOLT,Hex, 3/4" - 16 x 4-1/4", Gr 8

- hex, 3/4 NF x 4-1/4 inch

1шт.

144424H

LOCK NUT,3/4"-16, GB

NUT - lock, 3/4 inch NF

1шт.
