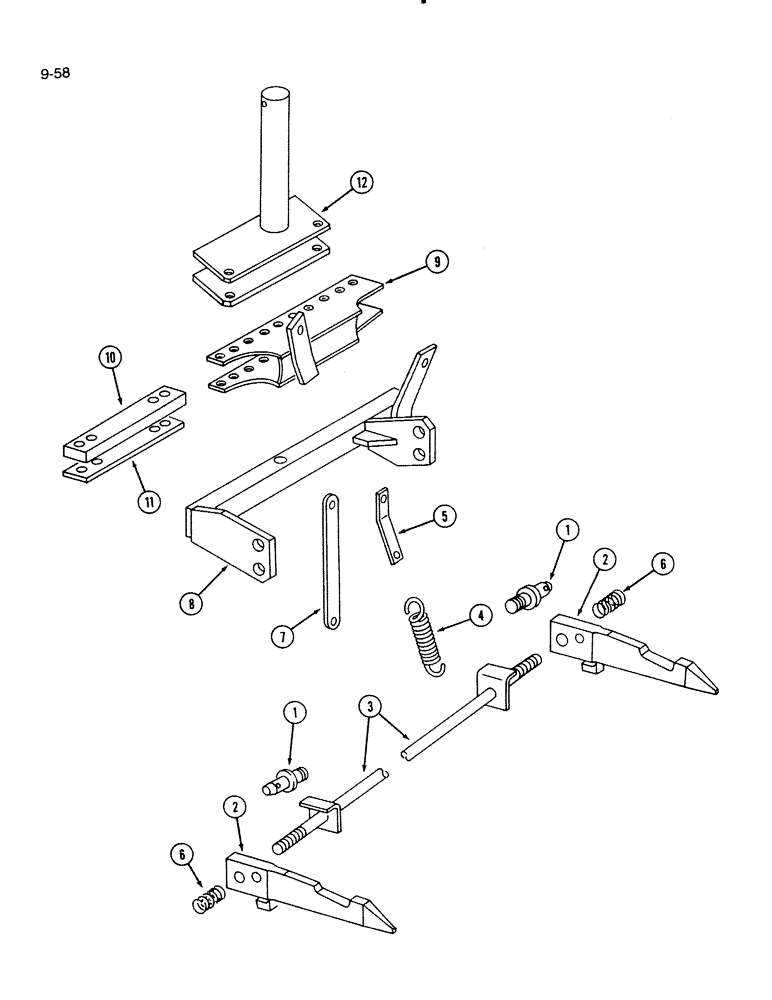

Запчасти Case IH 720 (9-58) - TWO-POINT FAST SHIFTING HITCH (09) - CHASSIS/ATTACHMENTS

1

472790R2

STUD

- hitch lower

2шт.

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.

492-11112

LOCK WASHER,1 1/8"

1 1/8"

2шт.

2

471367R11

BEAM

ASSEMBLY - coupling

2шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

3

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie

1шт.

615168R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.

462248R1

LOCK NUT

- hex lock, 3/4 inch

2шт.

4

PO193

SPRING

- hold-up

1шт.

5

471369R2

LINK

- hold-up spring

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

6

MA22649

SPRING

- cushion, 7-1/2 coils

1шт.

7

541162R1

LINK - hold-up spring

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

8

481884R92

BAR

DRAWBAR ASSEMBLY

1шт.

9

481879R92

SUPPORT ASSY.

GUIDE ASSEMBLY - shifting hitch

1шт.

426-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 8

- hex, 3/4 NC x 4-3/4 inch, Grade 8

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING - grease, straight, 1/4-28 NF

1шт.

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

10

541152R1

BAR

- guide top

1шт.

11

541153R2

BAR

- guide lower

1шт.

12

541190R1

PIVOT

ASSEMBLY - shifting hitch

1шт.

21720R1

WASHER

- flat, 2-17/32 x 3-1/4 x 3/32 inch

3шт.

61625C1

WASHER

- flat, 2-17/32 x 3-1/4 x 7/64 inch

1шт.

21386R1

BOLT,3/4" x 4 1/4", Gr 8

SCREW - 3/4-10 x 4-1/4 inch

1шт.

22244R1

LOCK NUT

- hex lock, 3/4 inch NC

1шт.
