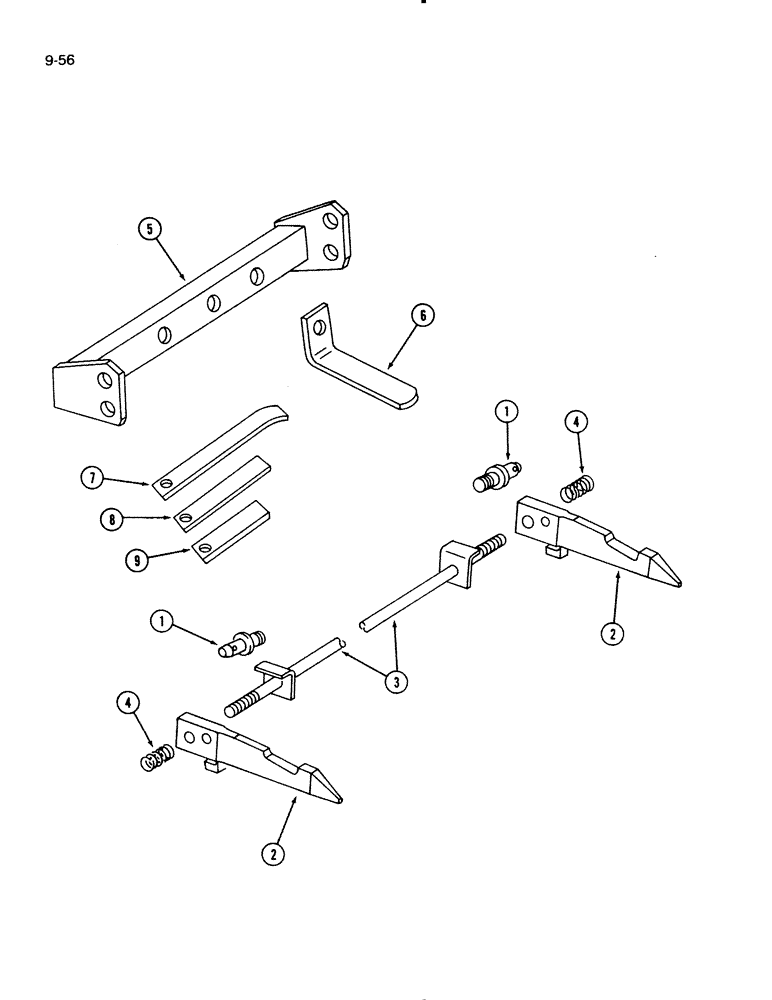

Запчасти Case IH 720 (9-56) - TWO-POINT FAST HITCH, ON THE LAND PLOWS (09) - CHASSIS/ATTACHMENTS

1

472790R2

STUD

- hitch lower

2шт.

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.

492-11112

LOCK WASHER,1 1/8"

1 1/8"

2шт.

2

427367R11

BEAM ASSEMBLY - coupling

2шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch

6шт.

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

425-1012

NUT,3/4"-10, G5

6шт.

3

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie

1шт.

615168R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.

462248R1

LOCK NUT

- hex lock, 3/4 inch

2шт.

4

MA22649

SPRING

- cushion, 7-1/2 coils

2шт.

5

NSS

NOT SOLD SEPARAT

CROSSBAR ASSEMBLY

1шт.

See page 9-60 for item #5 , crossbar assy. cam djo 10/19/98

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - hold-up

1шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - upper support

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - middle support

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - lower support

1шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
