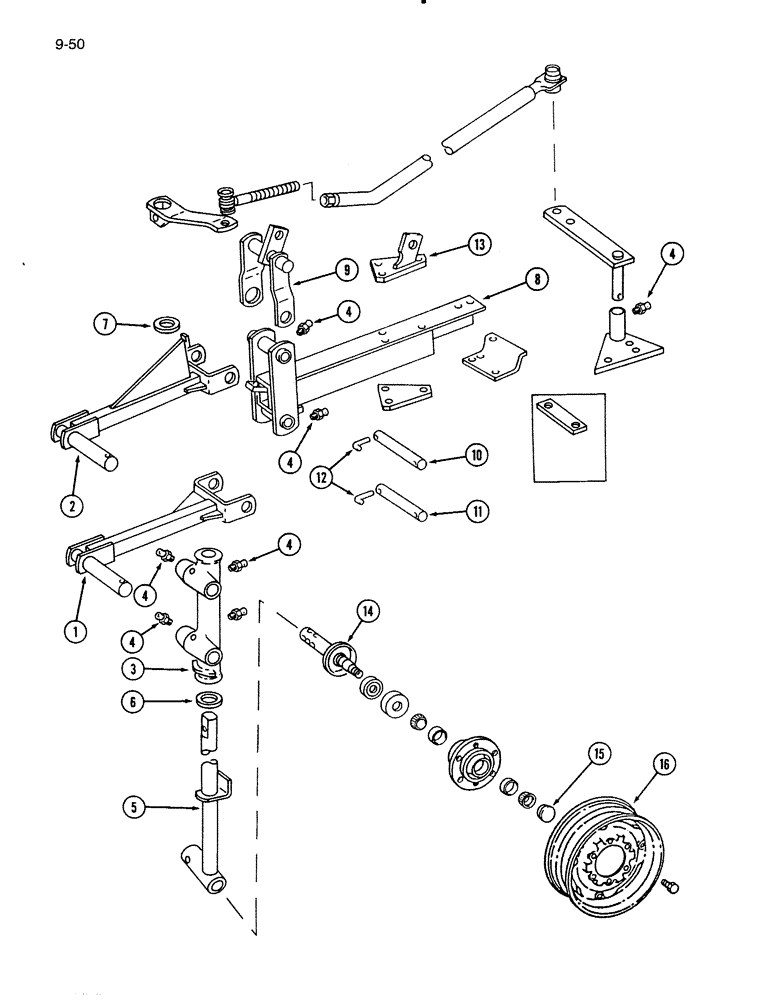

Запчасти Case IH 720 (9-50) - REAR FURROW WHEEL (09) - CHASSIS/ATTACHMENTS

1

484986R3

ARM

ASSEMBLY - lower

1шт.

2

484989R3

ARM

ASSEMBLY - upper

1шт.

3

61248C2

HOUSING

- rear axle

1шт.

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 3/32 inch

2шт.

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

432-2436

COTTER PIN,3/8" x 2 1/4"

Pin, Split (Cotter), 3/8" x 2 1/4"

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

7шт.

5

61249C2

CENTER AXLE

AXLE ASSEMBLY - rear

1шт.

5

122519C3

AXLE

ASSEMBLY - rear (If used)

1шт.

6

488175R1

WASHER

- rear furrow wheel (Below rear housing)

1шт.

7

488175R1

WASHER

- rear furrow wheel (Between housing and steering arm)

1шт.

8

100869C1

BRACKET

ASSEMBLY - rear wheel (4, 5 and 6 furrow 16 and 18 inch)

1шт.

8

131703C1

BRACKET

ASSEMBLY - rear wheel (5 and 6 furrow 20 inch 7 and 8 furrow)

1шт.

485708R1

BOLT,Hex, 3/4" - 10 x 3", Full Thd

SCREW - hex special, 3/4 x 3 inch

1шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

1шт.

9

482800R91

ROCKSHAFT

ASSEMBLY

1шт.

10

482805R1

PIN

BAR - top

1шт.

11

482806R2

BAR

- lower

1шт.

12

471323R1

LINCH PIN

PIN - pivot lock

2шт.

432-2430

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

2шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

13

482807R92

BRACKET

ASSEMBLY - cylinder anchor (4, 5 and 6 furrow 16 and 18 inch)

1шт.

13

547217R2

BRACKET

ASSEMBLY - cylinder anchor (5 and 6 furrow 20 inch 7 and 8 furrow)

1шт.

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch

1шт.

426-12192

BOLT,Hex, 3/4" - 10 x 12", Gr 8

- hex, 3/4 x 12 inch (4, 5 and 6 furrow)

3шт.

426-12192

BOLT,Hex, 3/4" - 10 x 12", Gr 8

- hex, 3/4 x 12 inch (5 and 6 furrow 20 inch 7 and 8 furrow)

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC (4, 5 and 6 furrow)

3шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC (5 and 6 furrow 20 inch 7 and 8 furrow)

4шт.

14

486378R1

SPINDLE

ASSEMBLY - wheel

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, 25/32 x 1/4 x 1/8 inch

1шт.

69442D

NUT

- slotted hex, 3/4 inch NF

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

15

663908R1

CAP

- wheel hub

1шт.

16

481344R91

WHEEL

- steel (For 9.5-14 tire)

1шт.

810768C1

VALVE

- tubeless tire steel

1шт.
