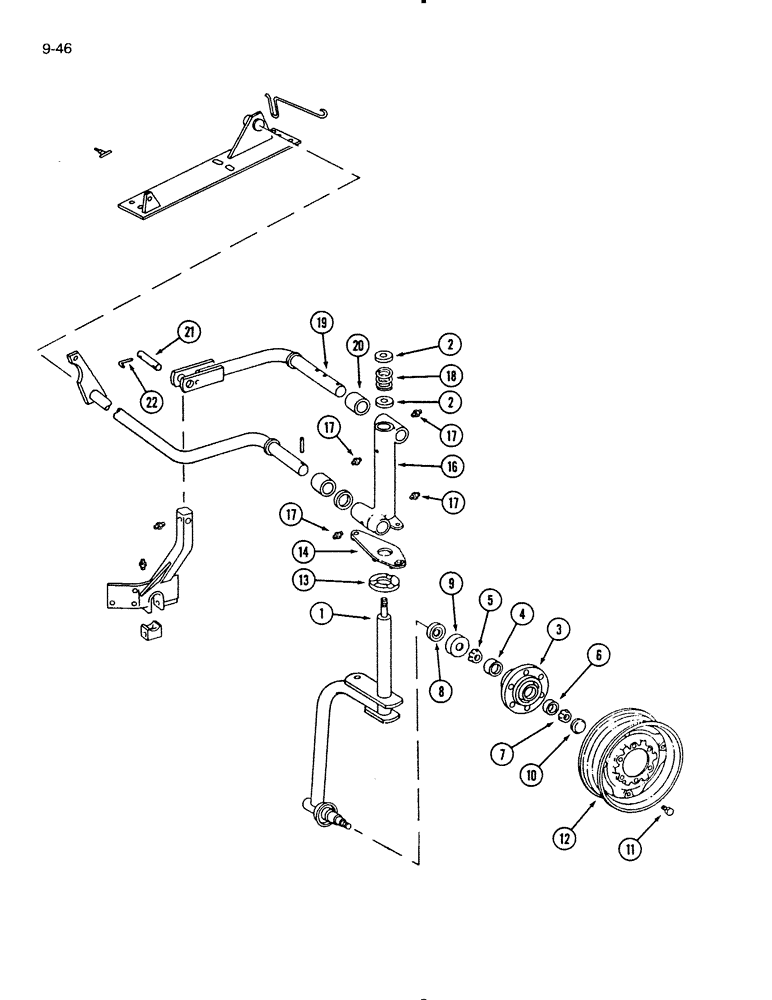

Запчасти Case IH 720 (9-46) - FRONT FURROW WHEEL, FOR 5 THRU 8 FURROW, ON THE LAND (09) - CHASSIS/ATTACHMENTS

1

61024C1

AXLE

ASSEMBLY - caster wheel (Early production), Includes: Collar

1шт.

1

1337963C1

CENTER AXLE

AXLE ASSEMBLY - caster wheel (Later production), Includes: Collar

1шт.

490909R1

COLLAR

- sand

1шт.

21212R1

WASHER

- flat, 29/32 x 2 x 7/64 inch

1шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

2

491554R1

WASHER

- retainer

2шт.

3

465496R11

HUB

ASSEMBLY - wheel, 6 bolt (Early production)

1шт.

3

606468R21

HUB

ASSEMBLY - wheel, 6 bolt (Later production)

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

4

663558R1

BEARING CUP

CUP - bearing, hub, inner

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, hub, innner

1шт.

6

651817R1

BEARING CUP

CUP - bearing, hub, outer

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, hub, outer

1шт.

8

654674R91

OIL SEAL

- hub oil,(Early production)

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - hub oil (Later production, order 606556R91)

1шт.

Part of oil seal with wear sleeve kit P/N 606556R91

1шт.

9

654675R1

RING

- oil seal wear (Early production)

1шт.

9

NSS

NOT SOLD SEPARAT

RING - oil seal wear (Later production, order 606556R91)

1шт.

Part of oil seal with wear sleeve kit P/N 606556R91

1шт.

10

663906R1

CAP

- wheel hub

1шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.

12

481344R91

WHEEL

- steel (For 9.5-14 tire)

1шт.

810768C1

VALVE

- tubeless tire steel

1шт.

13

491555R1

CAM

- caster wheel bottom

1шт.

14

491556R1

CAM

- caster wheel top

1шт.

16

61020C1

HOUSING

- front caster wheel

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

18

U13661

VALVE SPRING

SPRING - axle compression

1шт.

19

485647R3

ARM

ASSEMBLY - front furrow wheel (5 furrow 18 inch, 6 and 7 furrow 16 and 18 inch)

1шт.

19

122634C1

ARM

ASSEMBLY - front furrow wheel (6 furrow 20 inch)

1шт.

495-81098

WASHER,2 1/32" x 2 3/4" x .120"

- flat, 2-1/32 x 2-3/4 x 1/8 inch

5шт.

432-2444

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

20

488439R1

SPACER

- front furrow wheel arm

1шт.

20

493745R1

SPACER

- front furrow wheel arm, 1-1/2 inch

1шт.

21

485644R1

PIN

- front furrow

1шт.

432-2432

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

22

471323R1

LINCH PIN

PIN - front furrow wheel arm lock

1шт.

606556R91

OIL SEAL

KIT - oil seal, with wear sleeve, Includes: Ref. 8 NSS and 9 NSS - Later production

1шт.
