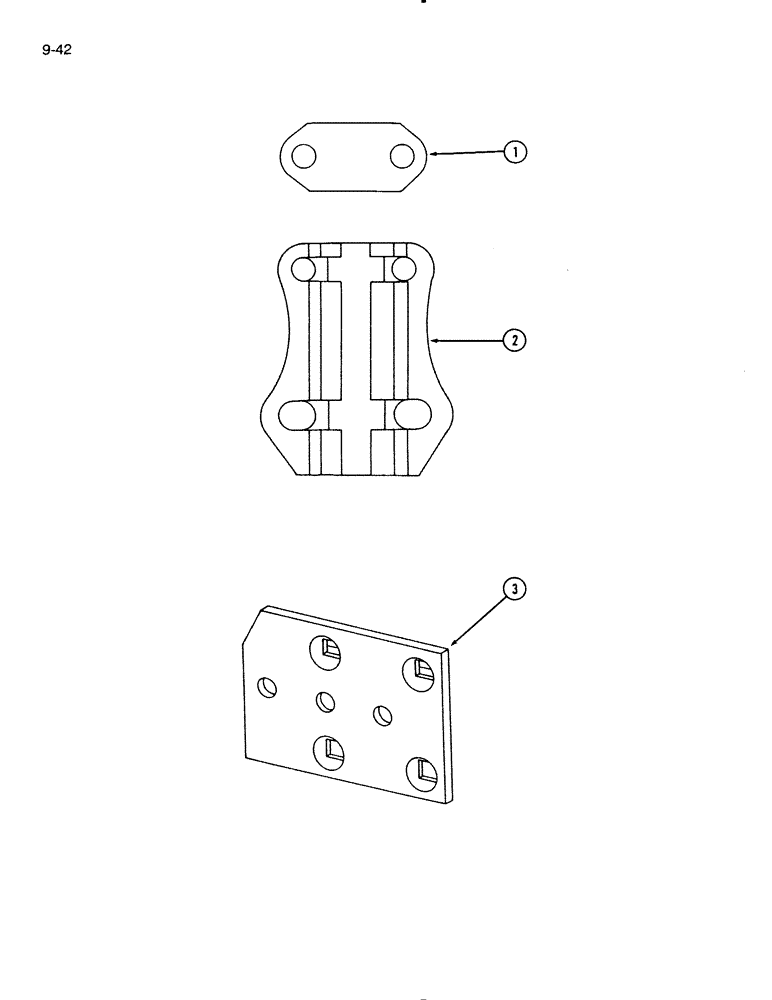

Запчасти Case IH 720 (9-42) - COLTER CLAMPS AND ADAPTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

CAP - auxiliary clamp (Last used 1978)

1шт.

2

NSS

NOT SOLD SEPARAT

CLAMP - colter outer (Last used 1978)

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

3

100896C2

ADAPTER

BAR ASSEMBLY - disc colter

1шт.

475394R1

BOLT,5/8"-11 x 3 1/2", G5

- round head square neck, 5/8 x 3-1/2 inch

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 x 4 inch, Course Threads

2шт.

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

425-1010

NUT,5/8"-11, G5

7шт.
