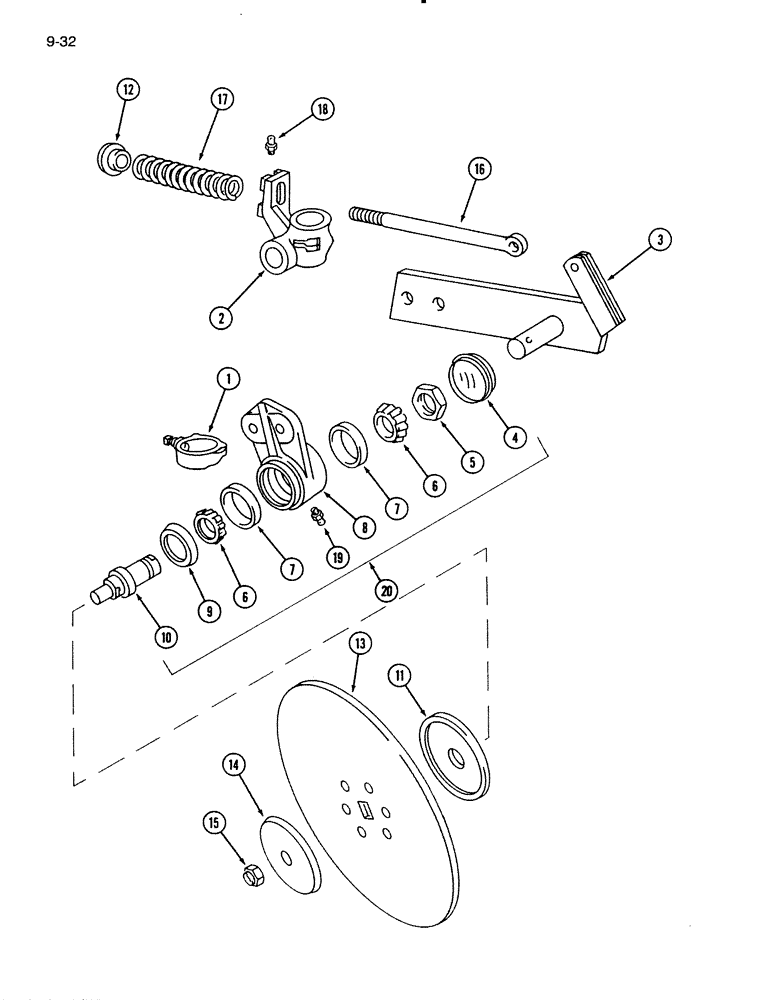

Запчасти Case IH 720 (9-32) - ROLLING COLTER, CUSHION TYPE (09) - CHASSIS/ATTACHMENTS

1

523345R21

COLLAR CLAMP

COLLAR - stop, Includes: Screw

1шт.

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - set, square head, 1/2 NC x 1-1/4 inch, cup point

1шт.

2

492815R3

BUSHING

- colter

1шт.

3

492812R1

ARM

ASSEMBLY - colter

1шт.

4

518842R1

CAP

- hub

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

5

519250R1

SLOTTED NUT

- slotted hex, 1-1/4 inch NF

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, housing

2шт.

Part of colter spindle assembly P/N 549827R92

1шт.

7

651817R1

BEARING CUP

CUP - bearing, housing

2шт.

Part of colter spindle assembly P/N 549827R92

1шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING - right bearing

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

9

472222R1

SLEEVE

- oil seal

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

9

472222R1

SLEEVE

- oil seal

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

10

541480R1

SPINDLE

- colter

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

10

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

10

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

11

523020R3

SUPPORT ASSY.

SUPPORT - inside blade (For 17 inch blade)

1шт.

11

59158C1

SUPPORT ASSY.

SUPPORT - inside blade (For 20 inch blade)

1шт.

12

487697R1

CENTERING RING

SPACER - spring plug

1шт.

13

523025R2

HALF BLADE

BLADE - colter, plain edge, 17 inch

1шт.

13

469191R3

BLADE

- colter, rippled edge, 17 inch

1шт.

13

474251R1

DISC

BLADE - colter, plain edge, 20 inch

1шт.

13

474252R2

COULTER

RIPPLED 20"

1шт.

14

523021R2

SUPPORT ASSY.

SUPPORT - outside blade (For 17 inch blade)

1шт.

14

59159C1

SUPPORT ASSY.

SUPPORT - outside blade (For 20 inch blade)

1шт.

15

429-1314

NUT,7/8"-14, G8

NUT - slotted hex, 7/8 inch NF, Grade 8

1шт.

16

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT - spring eye

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN - clevis, 1/2 x 1-3/4 inch

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

1шт.

17

487698R1

SPRING

- cushion, 13-1/2 coils

1шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

19

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch taper drive thread

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

20

549827R92

HUB CAP

SPINDLE ASSEMBLY - colter, Includes: Ref. 4, 5, 6, 7, 8, 9, 10 and 19

1шт.
