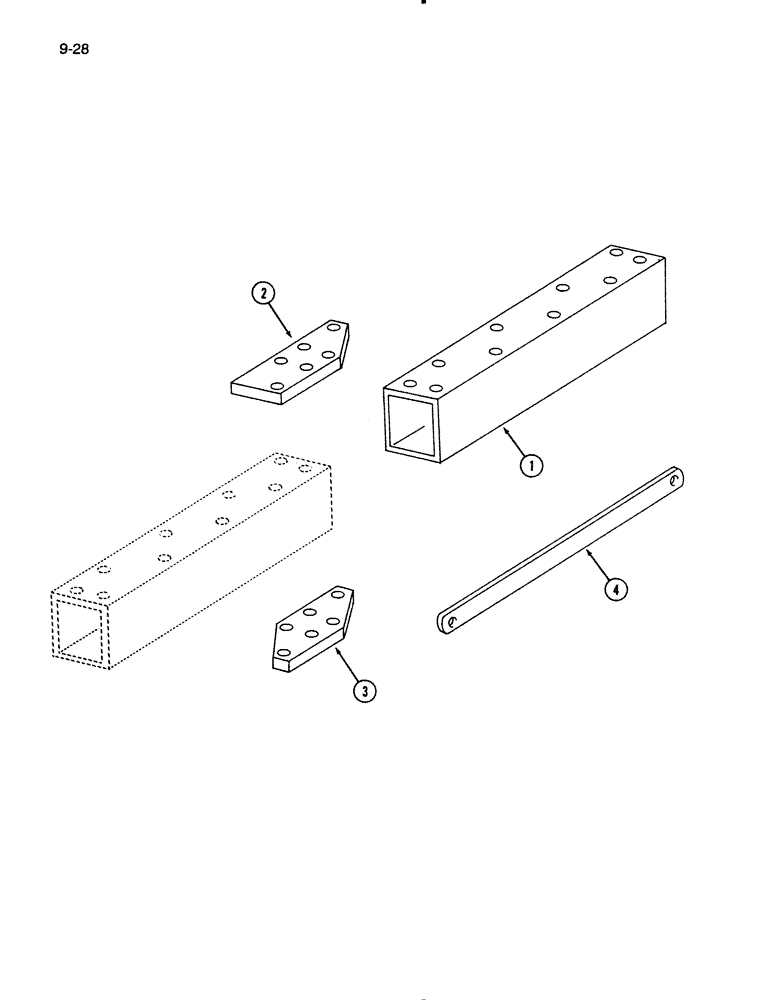

Запчасти Case IH 720 (9-28) - BEAM EXTENSION, FOR AUTOMATIC AND TOGGLE TRIP PLOWS (09) - CHASSIS/ATTACHMENTS

1

122828C1

EXTENSION

TUBE ASSEMBLY - extension 16 inch, 6 x 6 inch

1шт.

(Replaces 112716C1)

1шт.

1

122829C1

TUBE,18" Length

ASSEMBLY - extension 18 inch, 6 x 6 inch

1шт.

(Replaces 112717C1)

1шт.

1

122833C1

EXTENSION

TUBE ASSEMBLY - extension 20 inch, 6 x 8 inch

1шт.

(Replaces 61246C1)

1шт.

1

122832C1

TUBE

ASSEMBLY - extension 18 inch, 6 x 8 inch

1шт.

(For 8 furrow 18 inch)

1шт.

2

482915R1

BAR

PLATE - frame splice top (5, 6, and 7 furrow 16 and 18 inch)

1шт.

2

55277C1

PLATE

- frame splice top (20 inch and 8 furrow 18 inch)

1шт.

3

482916R1

BAR

PLATE - frame splice bottom (5, 6 and 7 furrow 16 and 18 inch)

1шт.

3

55278C1

PLATE

- frame splice bottom (20 inch and 8 furrow 18 inch)

1шт.

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, Grade 8

6шт.

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

425-1012

NUT,3/4"-10, G5

6шт.

4

543245R1

BAR

- tie rod extension (16 inch)

2шт.

4

543246R1

BAR

- tie rod extension (18 inch)

2шт.

4

61247C1

BAR

- tie rod extension (20 inch)

2шт.

22936R1

PIN,3/4" x 1 3/4"

- 3/4 x 1-3/4 inch

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.
