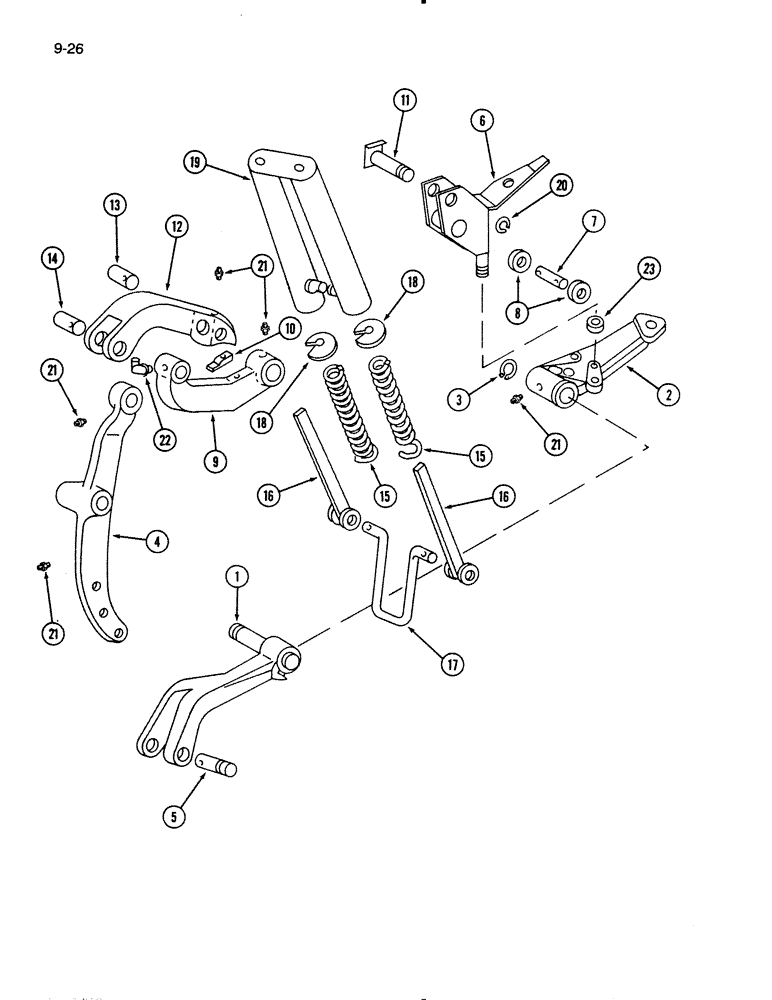

Запчасти Case IH 720 (9-26) - AUTOMATIC TRIP BEAM UNIT (09) - CHASSIS/ATTACHMENTS

1

55366C3

BEAM

ASSEMBLY - lower link

1шт.

2

485556R1

BRACKET

- pivot casting (Machines built, Serial Range: 1975-1976)

1шт.

2

112752C3

BRACKET

- pivot casting (Machines built 1976 and after)

1шт.

3

468371R1

RING

- retaining, external heavy 1-27/32 inch ID

1шт.

4

61056C2

BEAM

- recovery trip, high clear

1шт.

5

485526R1

SHAFT

- pivot bracket

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

471323R1

LINCH PIN

PIN - pivot lock

1шт.

519250R1

SLOTTED NUT

- slotted hex, 1-1/4 inch NF

1шт.

432-836

COTTER PIN,1/8" x 2 1/4"

1/8" x 2 1/4"

1шт.

6

547266R91

SUPPORT

- upper mounting, with bolt and lock nut (Machines built, Serial Range: 1975-1976)

1шт.

20331R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW - hex head cap, 5/8 x 2-1/2 inch

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

2шт.

7

485534R1

PIN

- upper mounting roller

1шт.

8

61561C1

SPACER

- stop roller

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

9

485537R4

SUPPORT

LINK - upper front

1шт.

10

489152R1

STRAP

ASSEMBLY - load adjusting

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, Grade 8

1шт.

11

485539R1

PIN

ASSEMBLY - upper front link

1шт.

12

485542R5

LEVER

LINK - upper rear

1шт.

13

485543R1

PIN

- upper link center

1шт.

21647R1

LOCK PIN,7/32" x 2 1/2", Slotted

Pin, 7/32" x 2 1/2", Slotted

1шт.

14

485524R1

PIN

- plow beam

1шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

21646R1

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

1шт.

15

485557R1

SPRING

- extension

2шт.

16

485545R1

BAR

ASSEMBLY - spring insert

2шт.

17

485544R1

HOLDER

- spring mounting hook

1шт.

486365R1

WASHER

- mounting hook

2шт.

460309R1

COTTER PIN

PIN - hair

2шт.

18

485548R2

WASHER

ADJUSTER - spring

2шт.

19

485551R3

TUBE

ASSEMBLY - spring

1шт.

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

- hex, 1/2 NC x 4-1/4 inch full thread

2шт.

495-81169

WASHER,17/32" x 2 1/2" x .120"

- flat, 17/32 x 2-1/2 x 7/64 inch

2шт.

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

2шт.

20

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

5шт.

22

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

(In rear of upper front link) 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

23

485535R1

WASHER

WASHER - upper mounting (Machines built, Serial Range: 1975-1976)

2шт.
