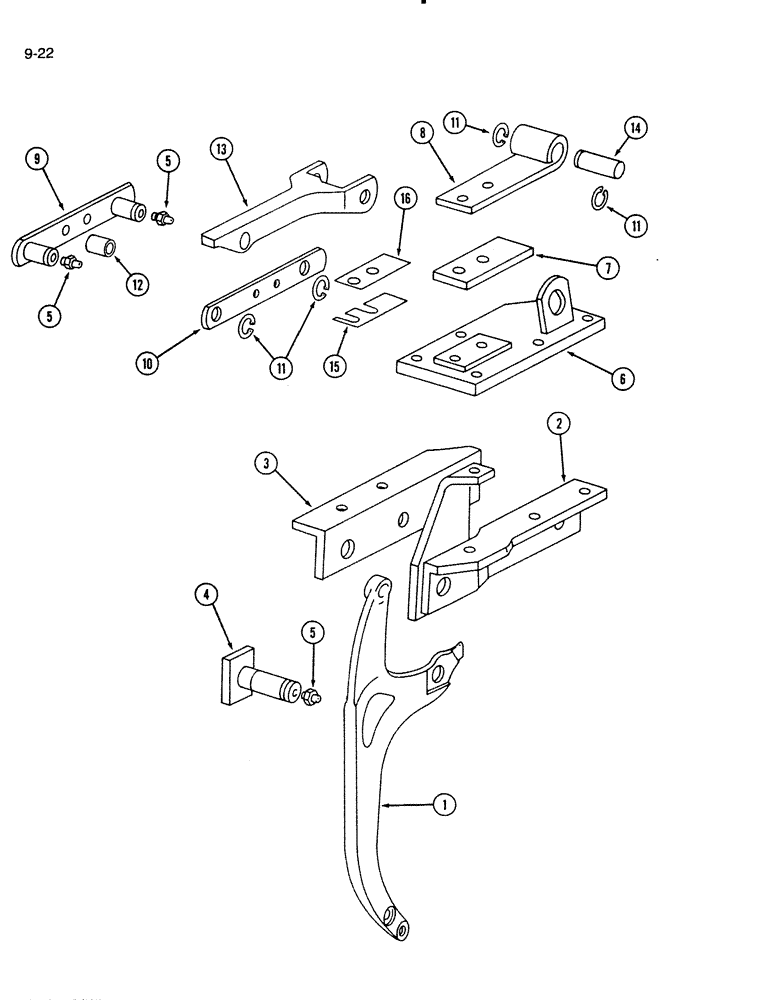

Запчасти Case IH 720 (9-22) - TOGGLE TRIP BEAM UNIT, MACHINES WITH TWO PIECE MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

61910C3

BEAM

- trip

1шт.

2

62427C1

BASE

MOUNTING ASSEMBLY - beam, right

1шт.

3

112434C1

ANGLE

ASSEMBLY - left

1шт.

4

112431C1

PIN

ASSEMBLY - pivot

1шт.

19499R1

LOCK NUT,1 1/4"-12, G5

NUT - hex lock, 1-1/4-12 NF

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

6

62420C1

PLATE

ASSEMBLY - top (4 furrow, 5 furrow 16 and 18 inch and 6 furrow)

1шт.

Ref #6 - (Last used 1982) 06/28/96

1шт.

7

62431C1

LARGE PLATE

BAR - spring

1шт.

8

62432C1

SPRING

- toggle trip

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

138506

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

2шт.

9

62424C1

LINK

ASSEMBLY - rear toggle (Also order 62425C1)

1шт.

10

62425C1

LINK

- rear toggle (Also order 62424C1)

1шт.

11

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

4шт.

12

358285R1

SPACER,3/8" Pipe x 1 3/8"

- 3/8 x 1-3/8 inch

1шт.

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

13

61911C4

LINK

- front toggle

1шт.

14

62430C1

PIN

- front toggle link

1шт.

15

112459C2

SHIM

- 0.015 inch

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

16

112460C1

SPACER

- 0.0652 inch

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.
