Запчасти Case IH 720 (9-20) - MAIN FRAME, SEVEN AND EIGHT FURROW, ON THE LAND, CONTINUED (09) - CHASSIS/ATTACHMENTS

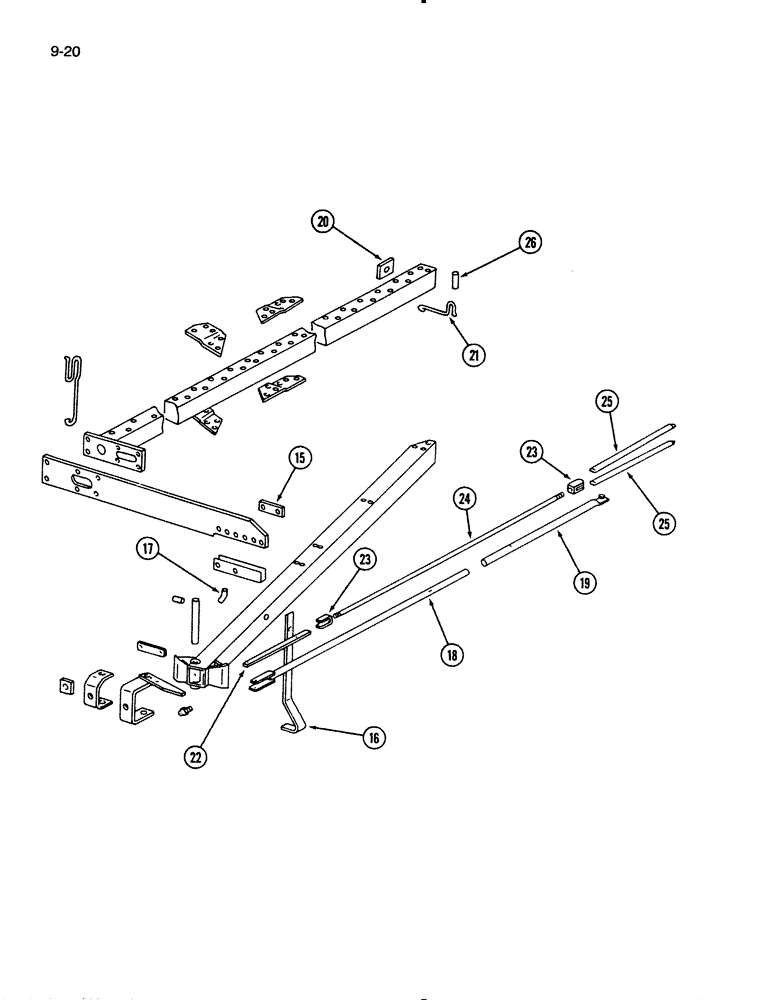

Схема запчастей Case IH 720 - (9-20) - MAIN FRAME, SEVEN AND EIGHT FURROW, ON THE LAND, CONTINUED (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

15

534240R1

GUSSET

SPACER - mounting

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

16

541111R1

BAR

- stand

1шт.

17

541112R1

HANDLE

- stand

1шт.

11-12120

CARRIAGE BOLT,Short NK, 3/4"-10 x 7 1/2", G2

BOLT - round head square neck, 3/4 x 7-1/2 inch

1шт.

18

543247R1

TUBE

PIPE ASSEMBLY - inside front steering

1шт.

21823R1

PIN,3/4" x 2 3/4"

- 3/4 x 2-3/4 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

19

547210R1

TUBE

ASSEMBLY - front steering (7 furrow)

1шт.

19

55046C1

TUBE ASSEMBLY - front steering (8 furrow 18 inch)

1шт.

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

1шт.

21621R1

LOCK NUT,3/4"-10

NUT - lock, 3/4 inch

1шт.

20

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (7 furrow)

13шт.

20

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (8 furrow)

15шт.

21

543221R1

SUPPORT

CLAMP - hose

3шт.

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 5/32 inch

1шт.

549953R1

LUG

- hose support

3шт.

22

543242R2

ANCHOR

- tie rod front

1шт.

23

541165R1

TURNBUCKLE

ASSEMBLY - rod, left

1шт.

23

541166R1

TURNBUCKLE

ASSEMBLY - rod, right

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

24

541170R1

ROD

- tie

1шт.

25

543246R1

BAR

- tie rod extension (7 furrow 18 inch)

2шт.

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

2шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

3шт.

25

543246R1

BAR

- tie rod extension (8 furrow 18 inch)

4шт.

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

2шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

26

517668R1

SPACER,3/4" Pipe x 5 1/8"

- 3/4 x 5-1/8 inch

2шт.

178375R1

WASHER

- flat, 25/32 x 1-1/4 x 3/64 inch

6шт.

Выбрано товаров: 36
