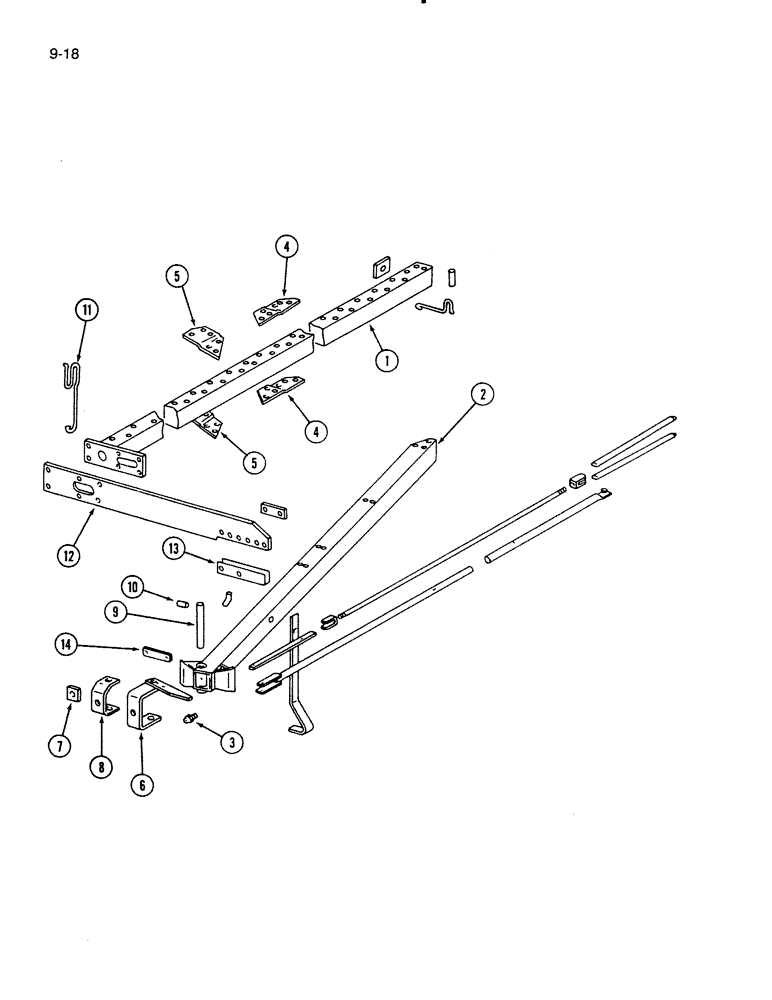

Запчасти Case IH 720 (9-18) - MAIN FRAME, SEVEN AND EIGHT FURROW, ON THE LAND (09) - CHASSIS/ATTACHMENTS

1

547192R91

FRAME

ASSEMBLY - main (7 furrow 16 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

547198R91

FRAME ASSY

FRAME ASSEMBLY - main (7 furrow 18 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 8-1/2 inch

2шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

4шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

8шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

13шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

28шт.

1

547198R91

FRAME ASSY

FRAME ASSEMBLY - main (8 furrow 18 inch) (Replaces 55043C91), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 8-1/2 inch

2шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

5шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

9шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

15шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

32шт.

2

547201R1

FRAME ASSY

FRAME ASSEMBLY - pull

1шт.

424-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 2

- hex, 5/8 NC x 9-1/2 inch

6шт.

24-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 2

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

7шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch taper drive thread

1шт.

4

547203R1

CONNECTOR, ELEC

CONNECTOR - pull beam top (7 and 8 furrow 18 inch)

1шт.

4

547204R1

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (7 and 8 furrow 18 inch)

1шт.

5

547205R1

CONNECTOR, ELEC

CONNECTOR - pull beam top (7 furrow 16 inch)

1шт.

5

547206R1

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (7 furrow 16 inch)

1шт.

6

543234R1

CHANNEL

YOKE ASSEMBLY - drawbar

1шт.

7

543233R1

WASHER

- pull beam

1шт.

8

543237R1

SUPPORT

- yoke

1шт.

9

543232R1

PIN

- front pivot

1шт.

10

491601R2

PIN

- pivot lock

1шт.

488175R1

WASHER

- flat, 2-1/32 x 3 x 3/64 inch

1шт.

432-2444

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

11

651793R2

SUPPORT

- hose

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 5/32 inch

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

1шт.

12

547207R1

BAR

- spreader

1шт.

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, Grade 8

2шт.

492-21075

LOCK WASHER,3/4"

3/4"

2шт.

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, Grade 8

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

6шт.

13

547208R1

FRAME

MOUNTING - pull frame

1шт.

14

547209R1

CLIP

- mounting

1шт.

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4 NC x 8-1/2 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.
