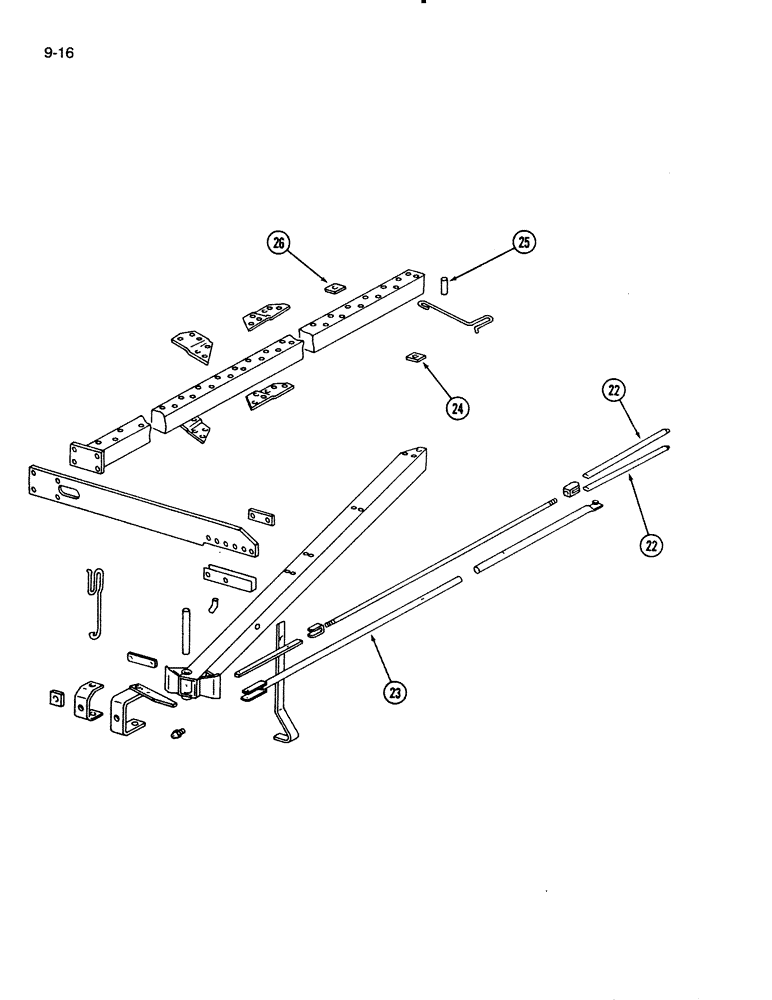

Запчасти Case IH 720 (9-16) - MAIN FRAME, FIVE AND SIX FURROW, ON THE LAND, CONTINUED (09) - CHASSIS/ATTACHMENTS

22

543245R1

BAR

- tie rod extension (6 furrow 16 inch)

2шт.

22

543246R1

BAR

- tie rod extension (6 furrow 18 and 20 inch)

2шт.

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

2шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

3шт.

23

543247R1

TUBE

PIPE ASSEMBLY - inside front steering

1шт.

21823R1

PIN,3/4" x 2 3/4"

- 3/4 x 2-3/4 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

24

549953R1

LUG

- hose support

2шт.

25

517668R1

SPACER,3/4" Pipe x 5 1/8"

- 3/4 x 5-1/8 inch

1шт.

178375R1

WASHER

- flat, 25/32 x 1-1/4 x 3/64 inch

3шт.

26

112831C1

WASHER

WASHER - main frame (5 furrow)

9шт.

26

112831C1

WASHER

WASHER - main frame (6 furrow)

11шт.

26

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (6 furrow 20 inch)

11шт.
