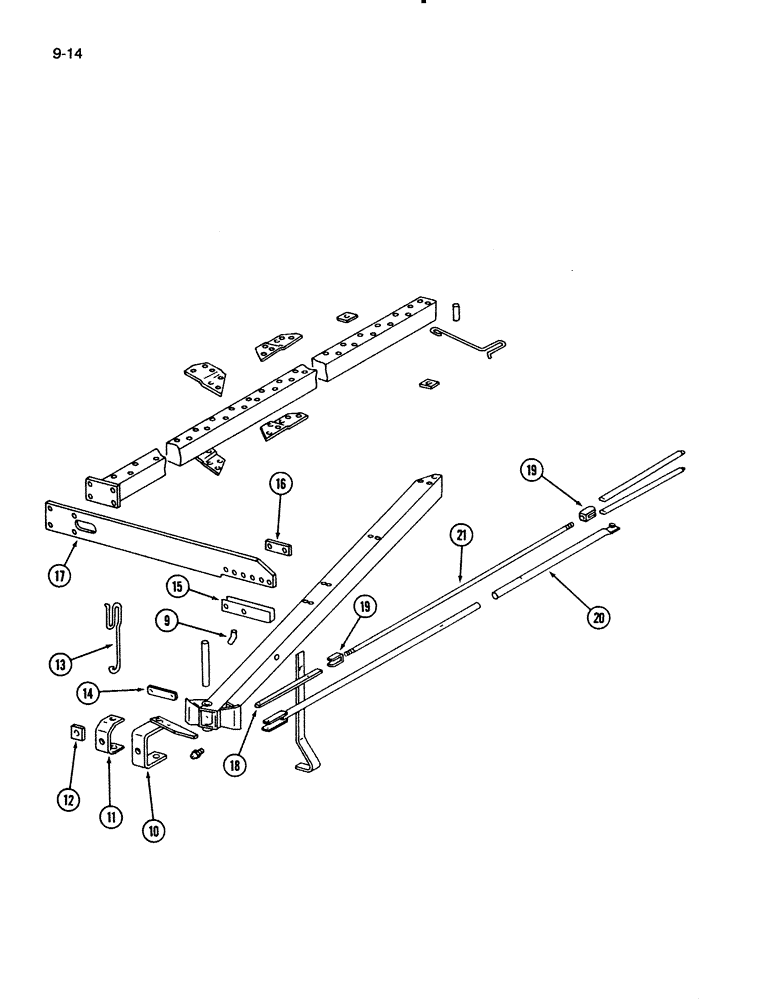

Запчасти Case IH 720 (9-14) - MAIN FRAME, FIVE AND SIX FURROW, ON THE LAND, CONTINUED (09) - CHASSIS/ATTACHMENTS

9

541112R1

HANDLE

- stand

1шт.

11-12120

CARRIAGE BOLT,Short NK, 3/4"-10 x 7 1/2", G2

BOLT - round head square neck, 3/4 x 7-1/2 inch

1шт.

10

543234R1

CHANNEL

YOKE ASSEMBLY - drawbar

1шт.

11

543237R1

SUPPORT

- yoke

1шт.

Spacer used between Ref. 11 and 12 is 50061K.

1шт.

12

543233R1

WASHER

- pull beam

1шт.

Spacer used between Ref. 11 and 12 is 50061K.

1шт.

13

651793R2

SUPPORT

- hose

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 5/32 inch

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

1шт.

14

547209R1

CLIP

- mounting

1шт.

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4 NC x 8-1/2 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

15

547208R1

FRAME

BRACKET - pull frame

1шт.

16

543240R1

SPACER

- mounting

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

17

543241R2

SUPPORT

BAR - spreader (5 furrow, 6 furrow 16 and 18 inch)

1шт.

17

122631C1

SUPPORT

BAR - spreader (6 furrow 20 inch)

1шт.

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, Grade 8

2шт.

492-21075

LOCK WASHER,3/4"

3/4"

2шт.

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, Grade 8

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch (6 furrow 20 inch)

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

6шт.

18

543242R2

ANCHOR

- tie rod front

1шт.

19

541165R1

TURNBUCKLE

ASSEMBLY - rod, right

1шт.

19

541166R1

TURNBUCKLE

ASSEMBLY - rod, left

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

20

543250R1

TUBE

ASSEMBLY - front steering (5 and 6 furrow 16 and 18 inch)

1шт.

20

122629C1

ROD

TUBE ASSEMBLY - front steering (6 furrow 20 inch)

1шт.

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

1шт.

21621R1

LOCK NUT,3/4"-10

NUT - lock, 3/4 inch

1шт.

21

543244R1

TURNBUCKLE

ROD - tie (5 furrow 18 inch, 6 furrow 16 and 18 inch)

1шт.

21

541171R1

ROD

- tie (6 furrow 20 inch)

1шт.
