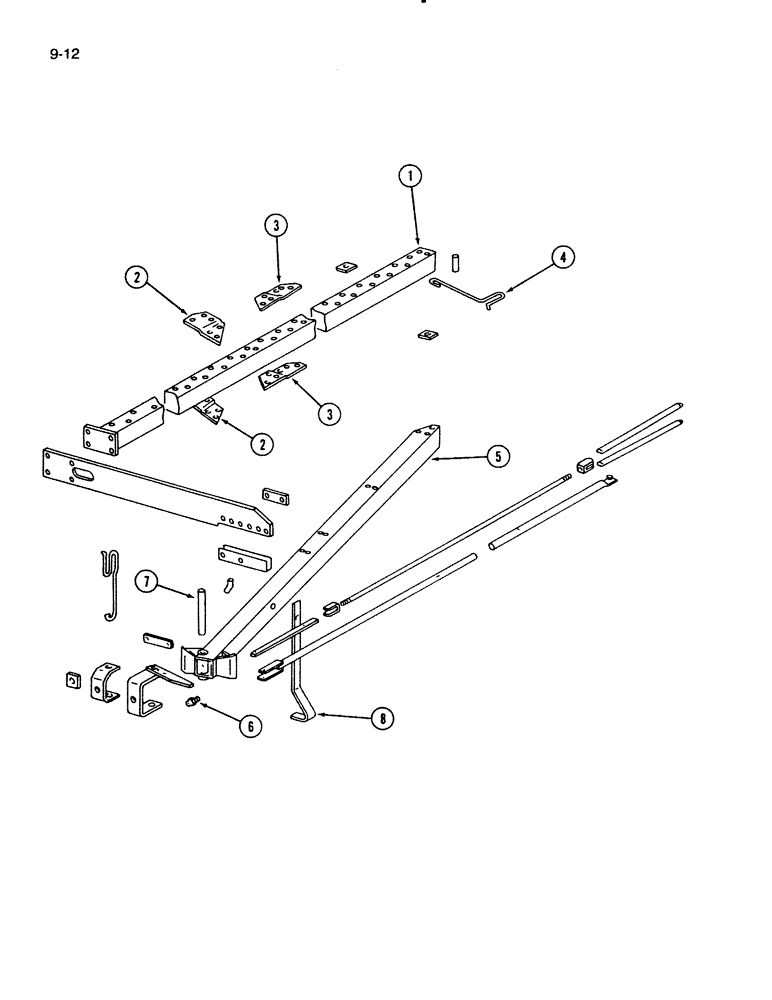

Запчасти Case IH 720 (9-12) - MAIN FRAME, FIVE AND SIX FURROW, ON THE LAND (09) - CHASSIS/ATTACHMENTS

1

62365C91

FRAME ASSEMBLY - main (5 furrow 18 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

6шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

3шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 8-1/2 inch

1шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

9шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

20шт.

1

62366C91

FRAME ASSEMBLY - main (6 furrow 16 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

62367C91

FRAME ASSEMBLY - main (6 furrow 18 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

63904C91

FRAME

ASSEMBLY - main (6 furrow 20 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

7шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

4шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 8-1/2 inch

1шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

11шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

24шт.

2

543222R2

CONNECTOR, ELEC

CONNECTOR - pull beam top (6 furrow 16 inch)

1шт.

2

547203R1

CONNECTOR, ELEC

CONNECTOR - pull beam top (6 furrow 20 inch)

1шт.

2

547204R1

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (6 furrow 20 inch)

1шт.

2

543223R2

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (6 furrow 16 inch)

1шт.

3

543224R2

CONNECTOR, ELEC

CONNECTOR - pull beam top (5 and 6 furrow 18 inch)

1шт.

3

543225R2

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (5 and 6 furrow 18 inch)

1шт.

4

543221R1

SUPPORT

CLAMP - hose

2шт.

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 5/32 inch

1шт.

5

100998C2

FRAME

ASSEMBLY - pull (5 furrow, 6 furrow 16 and 18 inch)

1шт.

424-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 2

- hex, 3/4 NC x 7-1/2 inch, Grade 2

3шт.

24-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 2

3шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

6шт.

5

122627C1

FRAME

ASSEMBLY - pull (6 furrow 20 inch)

1шт.

424-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 2

- hex, 3/4 NC x 7-1/2 inch, Grade 2

5шт.

24-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 2

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

6шт.

6

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch taper drive thread

1шт.

7

543232R1

PIN

- front pivot

1шт.

491601R2

PIN

- pivot lock

1шт.

432-2444

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

488175R1

WASHER

- flat, 2-1/32 x 3 x 3/64 inch

1шт.

8

541111R1

BAR

- stand

1шт.
