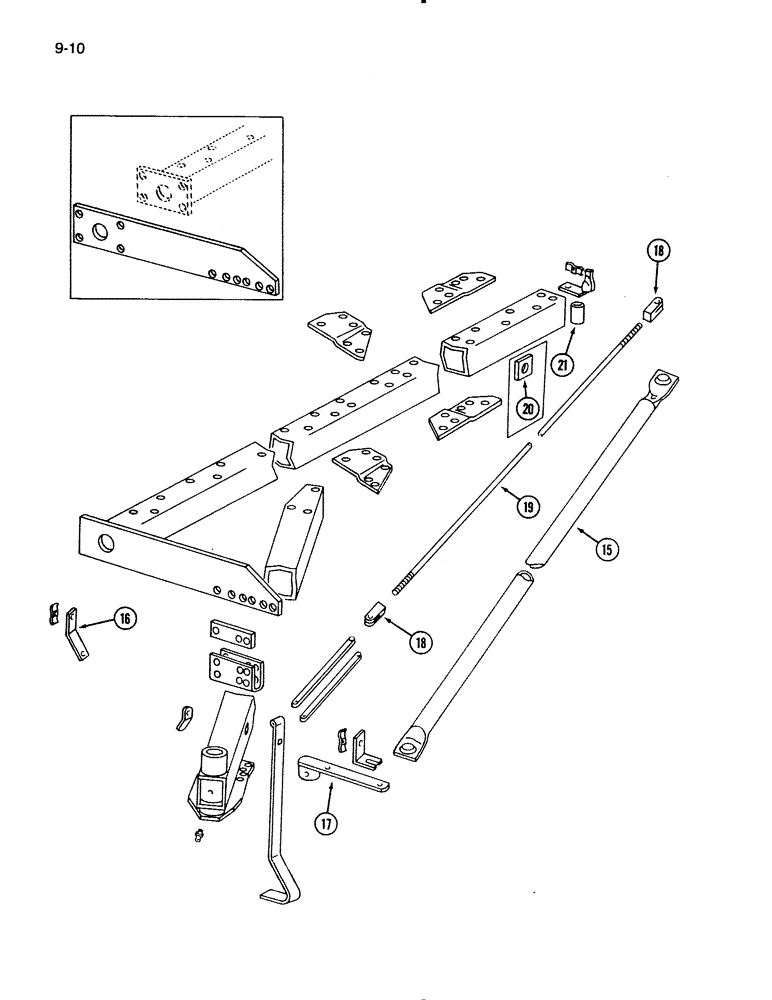

Запчасти Case IH 720 (9-10) - MAIN FRAME, FIVE, SIX AND SEVEN FURROW, IN THE FURROW, CONTINUED (09) - CHASSIS/ATTACHMENTS

15

131567C1

ROD

ASSEMBLY - front steering (7 furrow 18 inch)

1шт.

15

122538C1

ROD

ASSEMBLY - front steering (5 to 6 furrow 20 inch, with beam extension)

1шт.

15

224295C1

ROD

ASSEMBLY - front steering (7 furrow 16 inch)

1шт.

16

486693R1

REINFORCEMENT

MOUNTING - hose clamp

1шт.

17

543269R1

ARM

ASSEMBLY - front steering (5 and 6 furrow 16 and 18 inch)

1шт.

17

61241C1

ARM

ASSEMBLY - front steering (5 furrow 20 inch, 7 furrow, 16 and 18 inch)

1шт.

485-16220

SET SCREW,Sq Hd, 5/8"-11 x 1 1/4"

SCREW - set, square head, 5/8 NC x 1-1/4 inch, cup point

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

18

541165R1

TURNBUCKLE

ASSEMBLY - tie rod, right

1шт.

18

541166R1

TURNBUCKLE

ASSEMBLY - tie rod, left

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

19

541171R1

ROD

- tie (5 and 6 furrow 16 inch)

1шт.

19

541170R1

ROD

- tie (5 and 6 furrow 18 inch)

1шт.

19

61240C1

ROD

- tie (5 furrow 20 inch)

1шт.

19

122707C1

SPACER

ROD - tie (7 furrow 18 inch)

1шт.

19

61240C1

ROD

- tie (7 furrow 16 inch)

1шт.

20

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (5 furrow 20 inch)

9шт.

20

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (7 furrow)

13шт.

20

112831C1

WASHER

WASHER - main frame (5 furrow 16 and 18 inch)

9шт.

20

112831C1

WASHER

WASHER - main frame (6 furrow)

11шт.

21

517668R1

SPACER,3/4" Pipe x 5 1/8"

- 5-1/8 inch (5 and 6 furrow 16 and 18 inch)

1шт.

178375R1

WASHER

- flat, 25/32 x 1-1/4 x 3/64 inch

3шт.

21

517668R1

SPACER,3/4" Pipe x 5 1/8"

- 5-1/8 inch (5 furrow 20 inch)

2шт.

178375R1

WASHER

- flat, 25/32 x 1-1/4 x 3/64 inch

6шт.
