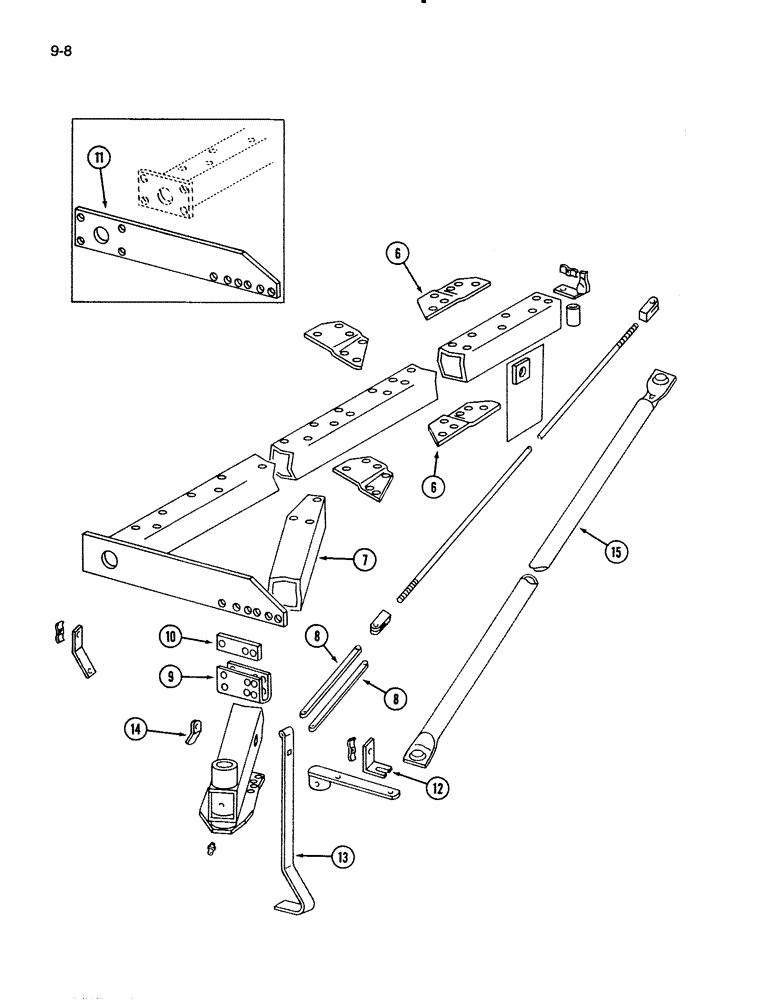

Запчасти Case IH 720 (9-08) - MAIN FRAME, FIVE, SIX AND SEVEN FURROW, IN THE FURROW, CONTINUED (09) - CHASSIS/ATTACHMENTS

6

56592C1

CONNECTOR, ELEC

CONNECTOR - pull beam top (5 and 6 furrow 18 inch)

1шт.

6

56593C1

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (5 and 6 furrow 18 inch)

1шт.

424-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 2

- hex, 3/4 NC x 7-1/2 inch, Grade 2

6шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

6шт.

7

122701C1

FRAME

ASSEMBLY - pull (5 and 6 furrow 16 and 18 inch)

1шт.

7

122702C1

FRAME

ASSEMBLY - pull (5 furrow 20 inch)

1шт.

7

122703C1

FRAME

ASSEMBLY - pull (7 furrow 18 inch)

1шт.

7

224049C1

FRAME

ASSEMBLY - pull (7 furrow 16 inch)

1шт.

8

543245R1

BAR

- tie rod extension (6 and 7 furrow 16 inch)

2шт.

8

543246R1

BAR

- tie rod extension (5 furrow 20 inch, 6 and 7 furrow, 18 inch)

2шт.

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

2шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

3шт.

9

56594C2

FRAME

MOUNTING - pull frame (5 and 6 furrow 16 and 18 inch)

1шт.

9

100932C1

MOUNTING PARTS

MOUNTING - pull frame (5 furrow 20 inch, 7 furrow, 16 and 18 inch)

1шт.

10

541104R2

SPACER

- frame mounting (5 and 6 furrow 16 and 18 inch)

1шт.

Ref #10A - (Grade 5 ZND) 06/28/96

1шт.

10

100866C1

SPACER

- frame mounting (5 furrow 20 inch, 7 furrow, 16 and 18 inch)

1шт.

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

519984R1

WASHER

- support

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

11

543266R2

BAR

FRAME - spreader (5 and 6 furrow 16 and 18 inch)

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 3/32 inch

2шт.

21621R1

LOCK NUT,3/4"-10

NUT - lock, 3/4 inch

2шт.

122708C1

BAR

FRAME - spreader (7 furrow 16 and 18 inch)

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

4шт.

12

471301R2

ANGLE

MOUNTING - hose clamp (Machines built, Serial Range: 1975-1978)

1шт.

13

100867C1

BAR

- stand

1шт.

14

541112R1

HANDLE

- stand

1шт.

11-12120

CARRIAGE BOLT,Short NK, 3/4"-10 x 7 1/2", G2

BOLT - round head square neck, 3/4 x 7-1/2 inch

1шт.

15

122533C1

ROD

ASSEMBLY - front steering (5 furrow 16 inch)

1шт.

15

122534C1

ROD

ASSEMBLY - front steering (5 furrow 18 inch)

1шт.

15

122536C1

ROD

ASSEMBLY - front steering (6 furrow 16 inch)

1шт.

15

122537C1

ROD

ASSEMBLY - front steering (6 furrow 18 inch)

1шт.

15

122535C1

ROD

ASSEMBLY - front steering (5 furrow 20 inch)

1шт.
