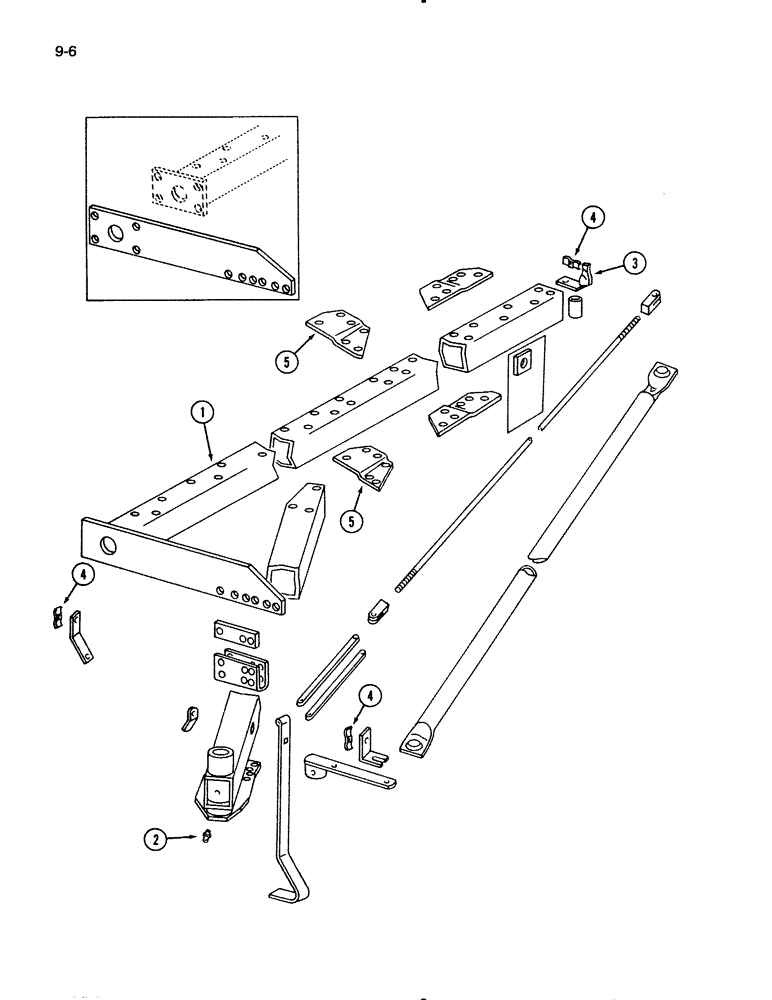

Запчасти Case IH 720 (9-06) - MAIN FRAME, FIVE, SIX AND SEVEN FURROW, IN THE FURROW (09) - CHASSIS/ATTACHMENTS

1

62364C91

FRAME

ASSEMBLY - main (5 furrow 16 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

62365C91

FRAME ASSEMBLY - main (5 furrow 18 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

62458C91

FRAME

ASSEMBLY - main (5 furrow 20 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

9шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

4шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

6шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 8-1/2 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

20шт.

1

62366C91

FRAME ASSEMBLY - main (6 furrow 16 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

62367C91

FRAME ASSEMBLY - main (6 furrow 18 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

11шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

5шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

7шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 8-1/2 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

24шт.

1

547192R91

FRAME

ASSEMBLY - main (7 furrow 16 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

547198R91

FRAME ASSY

FRAME ASSEMBLY - main (7 furrow 18 inch), Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

13шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

6шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

8шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 8-1/2 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

28шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

3

486694R1

SUPPORT

CLIP - rear hose

2шт.

4

515030R1

CLAMP

- hose

3шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT - round head square neck, 3/8 NC x 2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

5

56589C1

CONNECTOR, ELEC

CONNECTOR - pull beam top (5 and 6 furrow 16 inch)

1шт.

5

56590C1

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (5 and 6 furrow 16 inch)

1шт.

5

61231C1

CONNECTOR, ELEC

CONNECTOR - pull beam top (5 furrow 20 inch, 7 furrow 18 inch)

1шт.

5

61232C1

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (5 furrow 20 inch, 7 furrow 18 inch)

1шт.
