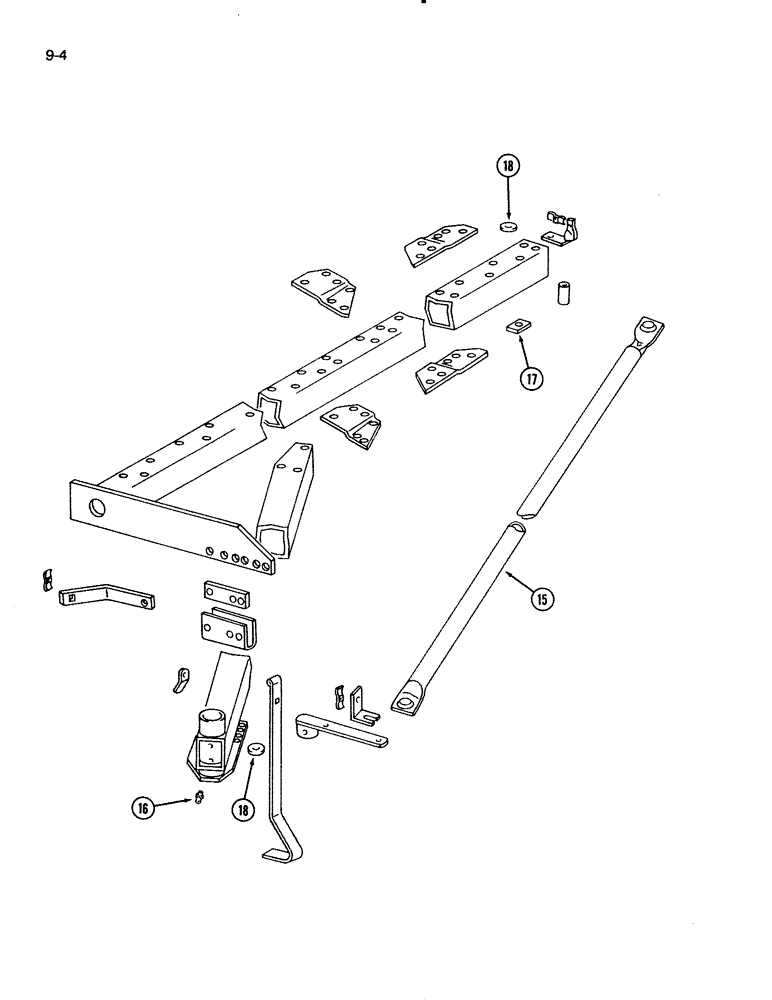

Запчасти Case IH 720 (9-04) - MAIN FRAME, FOUR FURROW, CONTINUED (09) - CHASSIS/ATTACHMENTS

15

122531C1

ROD

ASSEMBLY - front steering (4 furrow 16 inch) (Replaces inside rod 541113R1 and outside rod 56506R1)

1шт.

15

122532C1

ROD

ASSEMBLY - front steering (4 furrow 18 inch) (Replaces inside rod 541113R1 and outside rod 56506R1)

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

2шт.

21621R1

LOCK NUT,3/4"-10

NUT - lock, 3/4 inch

2шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

17

112831C1

WASHER

WASHER - main frame

7шт.

18

519984R1

WASHER

- support

2шт.
