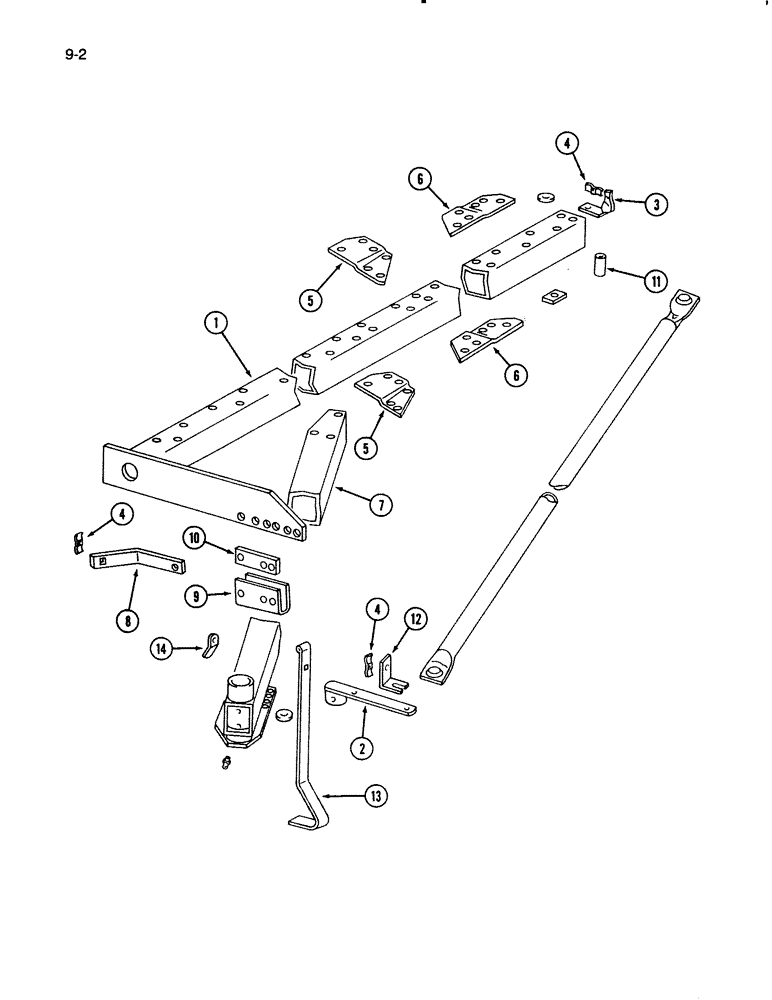

Запчасти Case IH 720 (9-02) - MAIN FRAME, FOUR FURROW (09) - CHASSIS/ATTACHMENTS

1

62368C91

FRAME

ASSEMBLY - main, 4 furrow 16 inch, Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

1

62369C91

FRAME

ASSEMBLY - main, 4 furrow 18 inch, Includes: Decal

1шт.

122878C1

DECAL

- caution

1шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

5шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

3шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

7шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 x 8-1/2 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

16шт.

2

543269R1

ARM

ASSEMBLY - front steering

1шт.

485-16220

SET SCREW,Sq Hd, 5/8"-11 x 1 1/4"

SCREW - set, square head, 5/8 NC x 1-1/4 inch, cup point

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

3

486694R1

SUPPORT

CLIP - rear hose

2шт.

4

515030R1

CLAMP

- hose

3шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT - round head square neck, 3/8 NC x 2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

5

56589C1

CONNECTOR, ELEC

CONNECTOR - pull beam top (4 furrow 16 inch)

1шт.

5

56590C1

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (4 furrow 16 inch)

1шт.

6

56592C1

CONNECTOR, ELEC

CONNECTOR - pull beam top (4 furrow 18 inch)

1шт.

6

56593C1

CONNECTOR, ELEC

CONNECTOR - pull beam bottom (4 furrow 18 inch)

1шт.

424-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 2

- hex, 3/4 NC x 7-1/2 inch, Grade 2

4шт.

24-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 2

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

6шт.

7

122701C1

FRAME

ASSEMBLY - pull

1шт.

8

486693R1

REINFORCEMENT

MOUNTING - hose clamp (Machines built 1978 and after)

1шт.

9

56594C2

FRAME

MOUNTING - pull frame

1шт.

10

541104R2

SPACER

- frame mounting

1шт.

Ref #10A - (Grade 5 ZND) 06/28/96

1шт.

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

11

517668R1

SPACER,3/4" Pipe x 5 1/8"

- 3/4 x 5-1/8 inch

1шт.

178375R1

WASHER

- flat, 25/32 x 1-1/4 x 3/64 inch

3шт.

12

471301R2

ANGLE

MOUNTING - hose clamp (Machines built, Serial Range: 1975-1978)

1шт.

13

100867C1

BAR

- stand

1шт.

14

541112R1

HANDLE

- stand

1шт.

11-12120

CARRIAGE BOLT,Short NK, 3/4"-10 x 7 1/2", G2

BOLT - round head square neck, 3/4 x 7-1/2 inch

1шт.
