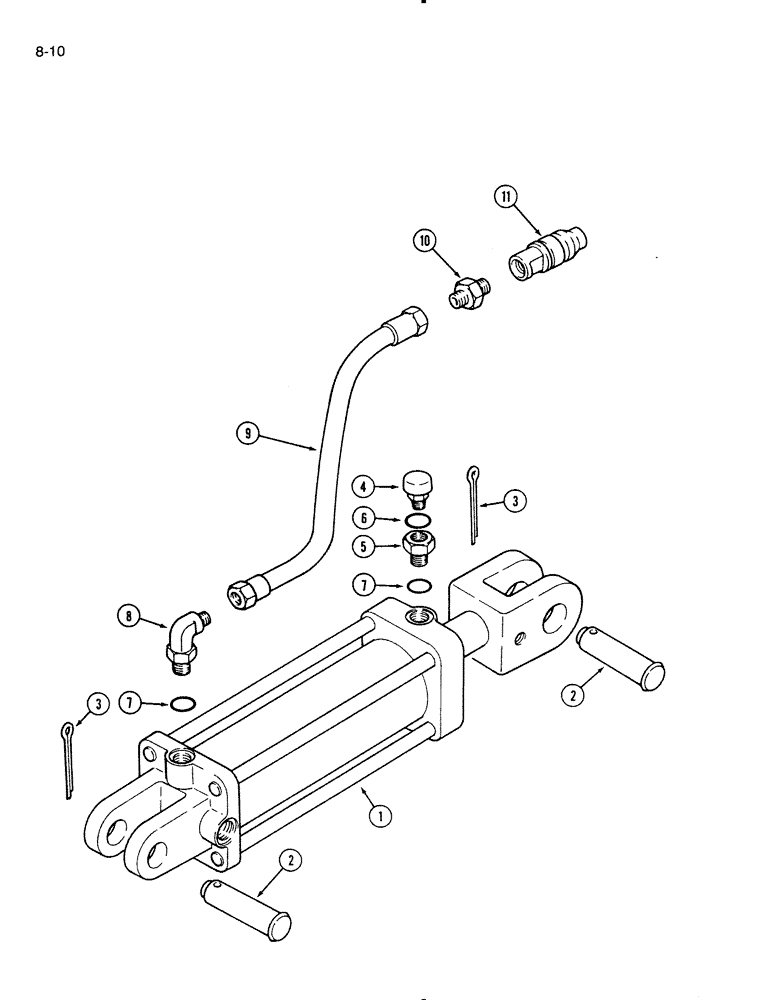

Запчасти Case IH 720 (8-10[B]) - REAR FURROW WHEEL HYDRAULIC EQUIPMENT, 5 FURROW 20 INCH, TOGGLE TRIP, IN THE FURROW (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - hydraulic, 3 x 8 inch (See Figure 8-12)

1шт.

2

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

2шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

4

65970C2

BREATHER ASSY.

FILTER - cylinder

1шт.

5

1344872C1

FITTING

ADAPTER - filter

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

1шт.

9

1284251C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 315 inch long

1шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

11

395149R1

QUICK MALE COUPLING

COUPLER - 7/8-14 thread poppet type

1шт.

11

544787R91

COUPLING, BREAK AWAY

COUPLER - 7/8-14 thread self sealing type

1шт.

11

1272399C2

QUICK MALE COUPLING

COUPLER - 7/8-14 thread self sealing type (ISO standard)

1шт.

11

1285718C2

QUICK MALE COUPLING

COUPLER - 3/4-16 thread self sealing type (ISO standard)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

407045R1

FITTING

BUSHING - reducer, 3/4-16 hose fitting to 7/8-14 coupler

1шт.

407545R1

FITTING

BUSHING - reducer, 7/8-14 hose fitting to 3/4-16 coupler

1шт.

1282459C1

PACKAGE

KIT - coupler tag, color coded

1шт.
