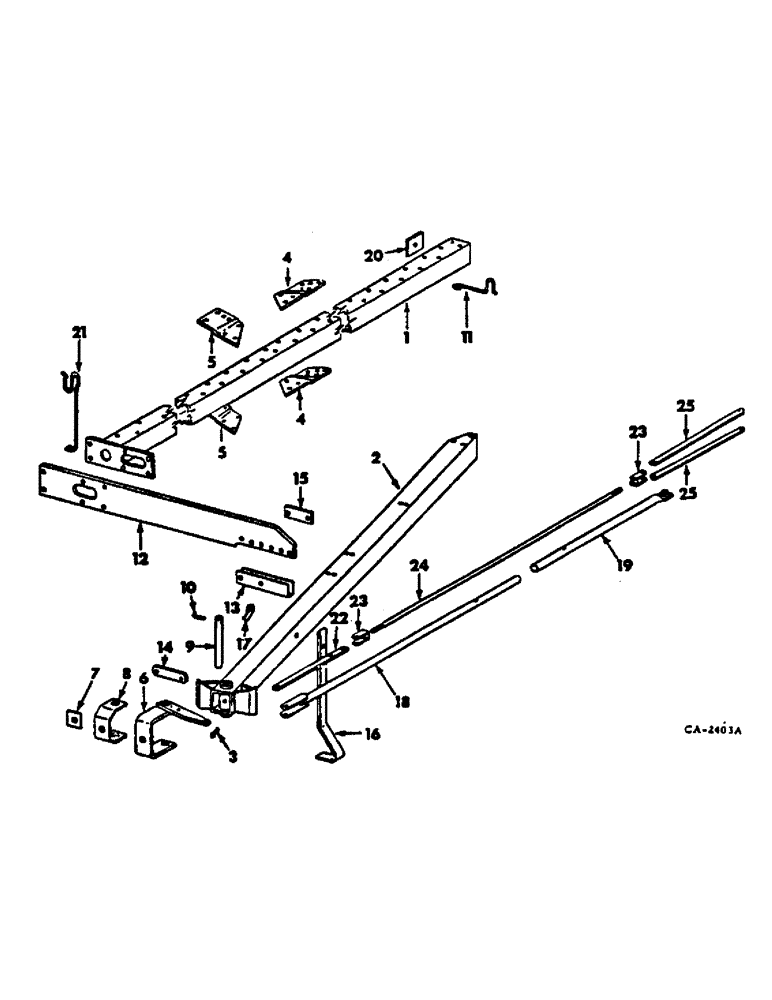

Запчасти Case IH 710 (AP-09) - MAIN FRAME, 7 AND 8 FURROW, ON THE LAND

1

547192R91

FRAME

ASSY, main, for 7 furrow 16 in.

1шт.

1

547198R91

FRAME ASSY

main, for 7 furrow 18 in.

1шт.

1

547212R91

FRAME ASSY, main, for 8 furrow 16 in.

1шт.

1

55043C91

FRAME

ASSY, main, for 8 furrow 18 in.

1шт.

18755R1

BOLT,Hex, 5/8"-11 x 7 1/2", G5

25 used for 7 furrow w/spring trips, 29 used for 8 furrow w/spring trips Hex, 5/8"-11 x 7 1/2", G5

1шт.

20331R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/2 hex-hd cap, 1 per furrow w/automatic trips

1шт.

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

SCREW, 5/8-11 x 8 hex-hd cap, 3 used for spring trips, 8 used for 7 furrow w/automatic trips, 9 used for 8 furrow w/automatic trips

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga, 1 per furrow w/spring trip

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 cdp two way hex. lock, 3 per furrow w/automatic trips, 4 per furrow w/spring trips

1шт.

2

547201R1

FRAME ASSY

pull

1шт.

3

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NF 2 45 deg lub

2шт.

4

547203R1

CONNECTOR, ELEC

CONNECTOR, pull beam top, for 7 and 8 furrow 18 in.

1шт.

4

547204R1

CONNECTOR, ELEC

CONNECTOR, pull beam bottom, for 7 and 8 furrow 18 in.

1шт.

5

547205R1

CONNECTOR, ELEC

CONNECTOR, pull beam top, for 7 and 8 furrow 16 in.

1шт.

5

547206R1

CONNECTOR, ELEC

CONNECTOR, pull beam bottom, for 7 and 8 furrow 16 in.

1шт.

17287R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 hex-hd cap

6шт.

17242R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW, 3/4-10 x 8 hex-hd cap

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z 2-way hex. lock

7шт.

6

543234R1

CHANNEL

YOKE ASSY, drawbar

1шт.

7

543233R1

WASHER

pull beam

1шт.

8

543237R1

SUPPORT

yoke

1шт.

22837R1

SCREW

1-8 x 5-1/2 znd hex-hd cap

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

489528R1

LOCK NUT

1-8 2-way hex. lock

1шт.

9

543232R1

PIN

frt pivot

1шт.

10

491601R2

PIN

pivot lock

1шт.

488175R1

WASHER

2.031 x 3.00 x 16 ga

1шт.

21656R1

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

11

651793R2

SUPPORT

hyd hose

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z 2-way hex. lock

1шт.

12

547207R1

BAR

spreader

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

4шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z 2-way hex. lock, 1 per screw

1шт.

13

547208R1

FRAME

MOUNTING, pull frame

1шт.

14

547209R1

CLIP

mounting

1шт.

19593R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

SCREW, 3/4-10 x 8-1/2 hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

15

534240R1

GUSSET

SPACER, mtg

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z 2-way hex. lock

7шт.

16

541111R1

BAR

stand

1шт.

17

541112R1

HANDLE

stand

1шт.

15369R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 7 1/2", Gr 2

BOLT, 3/4 x 7-1/2 sq-nk crg

1шт.

18

543247R1

TUBE

PIPE ASSY, frt str

1шт.

21823R1

PIN,3/4" x 2 3/4"

3/4 x 2-3/4 znd std-hd

1шт.

21645R1

PIN, 1/4 x 1-3/8 C-Z cot.

1шт.

19

547210R1

TUBE

ASSY, outside, for 7 and 8 furrow 16 in. and for 7 furrow 18 in.

1шт.

19

55046C1

TUBE ASSY, frt steering outside, for 8 furrow 18 in.

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 znd std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 znd hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

1шт.

20

547213R1

WASHER

main frame, 6 used for 7 furrow w/automatic trips, 7 used for 8 furrow w/automatic trips, 12 used for 7 furrow w/spring trips, 14 used for 8 furrow w/spring trips

1шт.

21

543221R1

SUPPORT

hose

3шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

2шт.

22

543242R2

ANCHOR

tie rod frt

1шт.

23

541165R1

TURNBUCKLE

RH

1шт.

23

541166R1

TURNBUCKLE

LH

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

24

541170R1

ROD

tie

1шт.

25

543245R1

BAR

16 in. tie rod extension

2шт.

25

543246R1

BAR

18 in. tie rod extension, 2 used for 7 furrow 18 in., 4 used for 8 furrow 18 in.

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2-1/2 C-Z std-hd

2шт.

22936R1

PIN,3/4" x 1 3/4"

3/4 x 1-3/4 znd std-hd, 1 used for 7 furrow, 2 used for 8 furrow

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4", 2 used for 7 furrow 16 in; 3 used for 7 furrow 18 in; 3 used for 8 furrow 16 in; 4 used for 8 furrow 18 in.

1шт.
