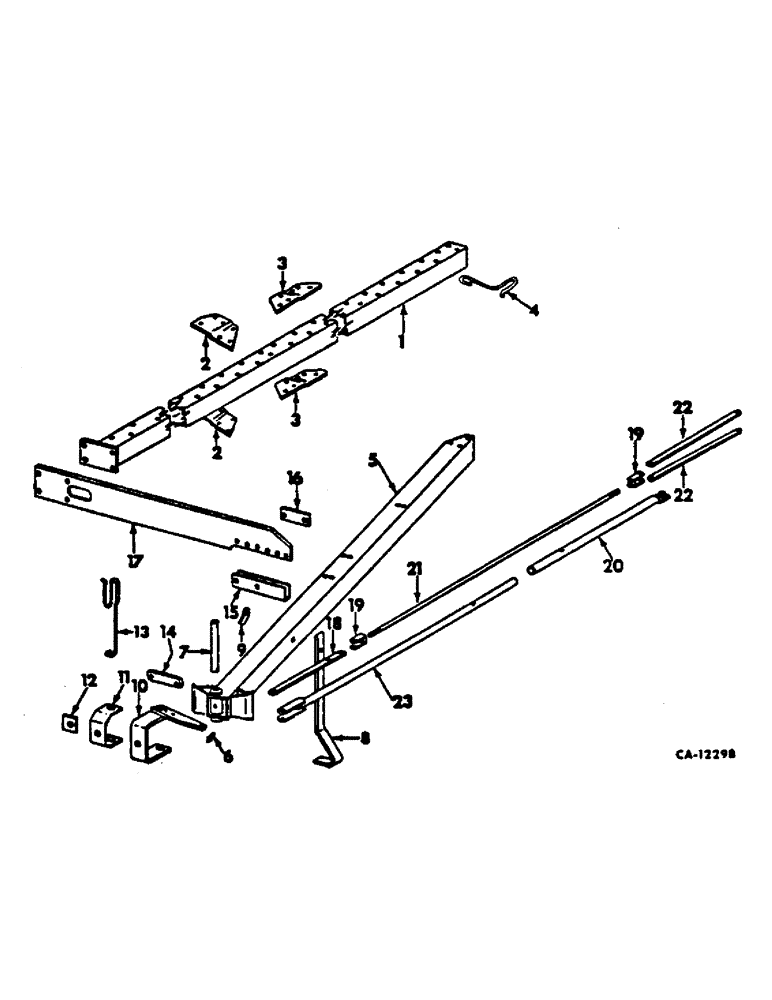

Запчасти Case IH 710 (AP-07) - MAIN FRAME, 5 TO 6 AND 6 FURROW NON-EXTENDABLE, ON THE LAND

1

543213R91

FRAME ASSY, 5-1/2 in. main, for 5 furrow 16 in.

1шт.

1

543215R91

FRAME ASSY, 5-1/2 in. main, for 5 furrow 18 in.

1шт.

1

543217R92

FRAME ASSY, 5-1/2 in. main, for 6 furrow 16 in.

1шт.

1

543219R92

FRAME ASSY, 5-1/2 in. main, for 6 furrow 18 in.

1шт.

1

62365C91

FRAME ASSY, 6 in. main, for 5 furrow 18 in.

1шт.

1

62366C91

FRAME ASSY, 6 in. main, for 6 furrow 16 in.

1шт.

1

62367C91

FRAME ASSY, 6 in. main, for 6 furrow 18 in.

1шт.

18755R1

BOLT,Hex, 5/8"-11 x 7 1/2", G5

4 for 5 furrow w/automatic trip, 5 for 6 furrow w/automatic trip, 19 for 5 furrow w/spring trip, 23 for 6 furrow w/spring trip Hex, 5/8"-11 x 7 1/2", G5

1шт.

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

SCREW, 5/8-11 x 8 hex-hd cap, 1 for spring trip, 10 for 5 furrow w/automatic trip, 12 for 6 furrow w/automatic trip

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 cdp 2-way hex. lock, 1 per screw

1шт.

2

543222R2

CONNECTOR, ELEC

CONNECTOR, pull beam top, for 5 and 6 furrow 16 in.

1шт.

2

543223R2

CONNECTOR, ELEC

CONNECTOR, pull beam bottom, for 5 and 6 furrow 16 in.

1шт.

3

543224R2

CONNECTOR, ELEC

CONNECTOR, pull beam top, for 5 and 6 furrow 18 in.

1шт.

3

543225R2

CONNECTOR, ELEC

CONNECTOR, pull beam bottom, for 5 and 6 furrow 18 in.

1шт.

17287R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 hex-hd cap

3шт.

17242R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW, 3/4-10 x 8 hex-hd cap

2шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cdp hex. lock, 1 per screw

1шт.

4

543221R1

SUPPORT

hose

3шт.

17242R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW, 3/4-10 x 8 hex-hd cap

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

SCREW, 5/8-11 x 8 hex-hd cap

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 cdp 2-way hex. lock

1шт.

5

100998C2

FRAME

ASSY, pull, replaces 543226R1 by also ordering the following, (1) bar 482809R1, (1) mounting 547208R1, (1) clip 547209R1, (2) screws 17242R1

1шт.

6

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg angle lub

1шт.

7

543232R1

PIN

front pivot

1шт.

491601R2

PIN

pivot lock

1шт.

21656R1

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

488175R1

WASHER

1шт.

8

541111R1

BAR

stand

1шт.

9

541112R1

HANDLE

stand

1шт.

15369R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 7 1/2", Gr 2

BOLT, 3/4-10 x 7-1/2 sq-nk crg

1шт.

10

543234R1

CHANNEL

YOKE ASSY, drawbar

1шт.

11

543237R1

SUPPORT

yoke

1шт.

12

543233R1

WASHER

pull beam

1шт.

22837R1

SCREW

1-8 x 5-1/2 znd hex-hd cap

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

489528R1

LOCK NUT

1-8 2-way lock

1шт.

13

651793R2

SUPPORT

hyd hose

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

14

547209R1

CLIP

mounting, replaces 543238R1

1шт.

17287R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

15

547208R1

FRAME

MOUNTING, pull frame, replaces 543239R1

1шт.

16

543240R1

SPACER

mounting

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

17

543241R2

SUPPORT

BAR, spreader

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cdp hex. lock

4шт.

18

543242R1

ANCHOR

tie rod front

1шт.

19

541165R1

TURNBUCKLE

ASSY, tie rod RH

1шт.

19

541166R1

TURNBUCKLE

ASSY, tie rod LH

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2-1/2 C-Z std-hd, 2 for 5 furrow, 3 for 6 furrow

1шт.

276326

KNIFE HEAD

PIN, 1/4 x 1-1/4 C-Z cot., 2 for 5 furrow, 3 for 6 furrow

1шт.

20

543250R1

TUBE

ASSY, outside frt str

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 znd hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 C-Z std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

522473R1

WASHER

.766 x 1.75 x .125 ht

1шт.

21

543244R1

TURNBUCKLE

ROD, tie

1шт.

22

543245R1

BAR

tie rod extension, for 6 furrow 16 in.

2шт.

22

543246R1

BAR

tie rod extension, for 6 furrow 18 in.

2шт.

23

543247R1

TUBE

PIPE ASSY, inside front steering

1шт.

21823R1

PIN,3/4" x 2 3/4"

3/4 x 2-3/4 C-Z std-hd

1шт.

21645R1

PIN, 1/4 x 1-3/8 C-Z cot.

1шт.
