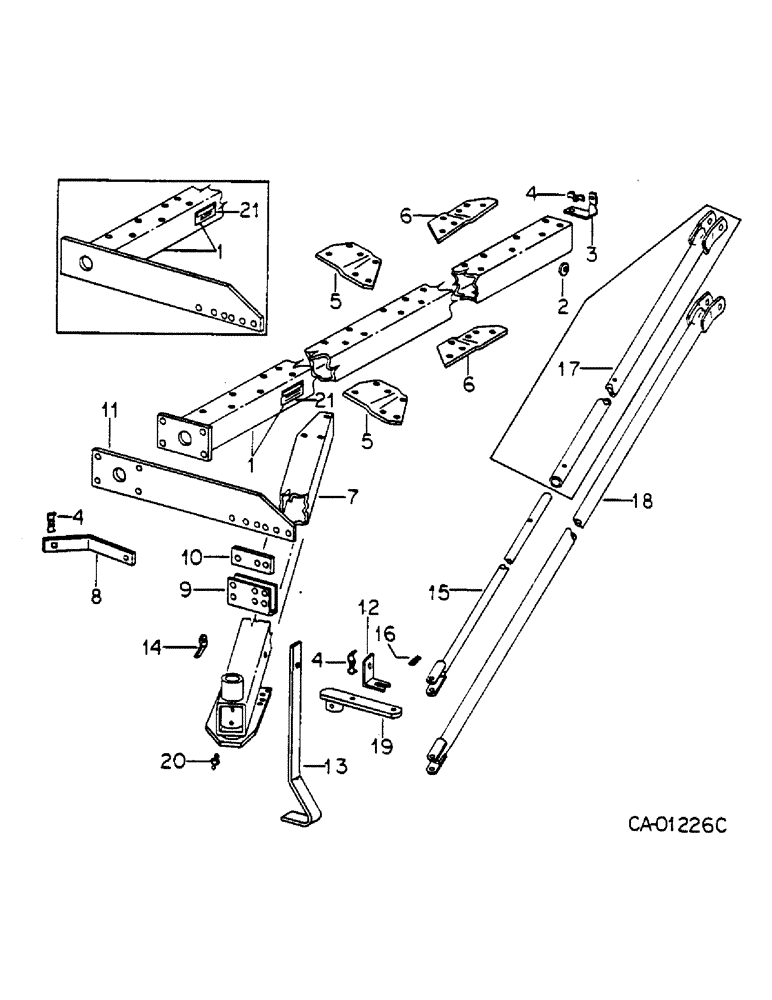

Запчасти Case IH 710 (AP-03) - MAIN FRAME, 3 TO 4, 4 TO 5 & 5 FURROW NON-EXTENDABLE IN THE FURROW PLOWS W/SINGLE PIVOT REAR WHEEL

1

541172R1

FRAME ASSY, 5-1/2 in. main, for 3 furrow 16 in.

1шт.

1

541176R1

FRAME ASSY, 5-1/2 in. main, for 4 furrow 16 in.

1шт.

1

541178R1

FRAME ASSY, 5-1/2 in. main, for 3 furrow 18 in.

1шт.

1

541182R1

FRAME ASSY, 5-1/2 in. main, for 4 furrow 18 in.

1шт.

1

543213R91

FRAME ASSY, 5-1/2 in. main, for 5 furrow 16 in.

1шт.

1

543215R91

FRAME ASSY, 5-1/2 in. main, for 5 furrow 18 in.

1шт.

2

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

trip beam, for spring trip plows

1шт.

3

486694R1

SUPPORT

CLIP, rear hose

1шт.

4

515030R1

CLAMP

hose

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8-11 x 7 hex-hd cap, 1 per furrow w/automatic trip, 11 for 3 furrow w/spring trip, 15 for 4 furrow w/spring trip, 19 for 5 furrow w/spring trip

1шт.

18755R1

BOLT,Hex, 5/8"-11 x 7 1/2", G5

3 for 4 furrow w/automatic trip, 4 for 5 furrow w/automatic trip, 5 for 6 furrow w/automatic trip, 15 for 4 furrow w/spring trip, 19 for 5 furrow w/spring trip, 23 for 6 furrow w/spring trip Hex, 5/8"-11 x 7 1/2", G5

1шт.

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8 x 8 pln type 5, 1 for spring trip, 9 for 4 furrow w/automatic trip, 11 for 5 furrow w/automatic trip, 13 for 6 furrow w/automatic trip

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 type 1

1шт.

614452R1

WASHER

.406 x 1.250 x .090

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

21259R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 hex-hd cap, 1 for spring trip, 2 per furrow w/automatic trip

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 CDP hex. lock, 1 per screw

1шт.

5

56589C1

CONNECTOR, ELEC

CONNECTOR, pull beam top, for 3.4 and 5 furrow 16 in. replaces 541095R1 by also ordering connector, 56590R1

1шт.

5

56590C1

CONNECTOR, ELEC

CONNECTOR, pull beam bottom, for 3, 4 and 5 furrow 16 in., replaces 541096R1 by also ordering connector, 56589C1

1шт.

6

56592C1

CONNECTOR, ELEC

CONNECTOR, pull beam top, for 3, 4 and 5 furrow 18 in., replaces 541109R1 by also ordering connector, 56593C1

1шт.

6

56593C1

CONNECTOR, ELEC

CONNECTOR, pull beam bottom, for 3, 4 and 5 furrow 18 in., replaces 541110R1 by also ordering connector, 56592C1

1шт.

17287R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 hex-hd cap

6шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 CDP hex. lock

6шт.

7

61924C2

FRAME

1шт.

FRAME ASSY, 6 in. pull, order 122701C1, replaces 543203R1 by also ordering the following, (1) mounting 56594C2, (2) screws 22465R1, (2) washers 131047, (2) nuts 220087, (1) bar 482809R1, (3) screws 17242R1, items listed above are used for attaching 6 in. pull frame to 5-1/2 in. main frame

1шт.

7

122701C1

FRAME

ASSY, pull

1шт.

8

486693R1

REINFORCEMENT

MOUNTING HOSE CLAMP, 1971 and since

1шт.

9

56594C2

FRAME

MOUNTING, pull frame, replaces 541103R2

1шт.

10

541104R2

SPACER

frame mtg

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

22832R1

BOLT,Hex, 7/8" - 9 x 8 1/2", Gr 5

SCREW, 7/8-9 x 8-1/2 znd hex-hd cap

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

11

541105R1

SPREADER, frame, for plows w/out welded spreader

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

12

471301R2

ANGLE

MOUNTING, hose clamp

1шт.

13

541111R1

BAR

stand

1шт.

14

541112R1

HANDLE

stand

1шт.

15369R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 7 1/2", Gr 2

BOLT, 3/4-10 x 7-1/2 sq-nk crg

1шт.

15

541113R1

ROD ASSY, inside frt steering, for plows equipped w/two piece steering pipe

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 C-Z std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

16

482809R1

BAR

cylinder

1шт.

17

TUBE ASSY, frt steering, not serviced, order ref no. 18

1шт.

18

547456R1

TUBE ASSY, frt steering, for 3 furrow 16 in., replaces tube, 543040R1 and rod, 541113R1

1шт.

18

547459R1

TUBE ASSY, frt steering, for 3 furrow 18 in., replaces tube, 541116R1 and rod, 541113R1

1шт.

18

547457R1

TUBE ASSY, frt steering, for 4 furrow 16 in., replaces tube, 541119R1 and rod, 541113R1

1шт.

18

547460R1

TUBE ASSY, frt steering, for 4 furrow 18 in., replaces tube, 541186R1 and rod, 541113R1

1шт.

18

547458R1

TUBE ASSY, frt steering, for 5 furrow 16 in., replaces tube, 541119R1 and rod, 541113R1

1шт.

18

547461R1

TUBE ASSY, frt steering, for 5 furrow 18 in., replaces tube, 541186R1 and rod, 541113R1

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2-1/2 C-Z std-hd

1шт.

22909R1

HEADED PIN,3/4" x 3"

PIN, 3/4 x 3 C-Z std-hd

1шт.

21645R1

PIN, 1/4 x 1-3/8 C-Z cot.

2шт.

19

541121R1

ARM ASSY, frt steering

1шт.

22218R1

SCREW

5/8-11 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

1шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF-2 str lub

2шт.

21

122878C1

DECAL

PRODUCT GRAPHIC, caution

1шт.
