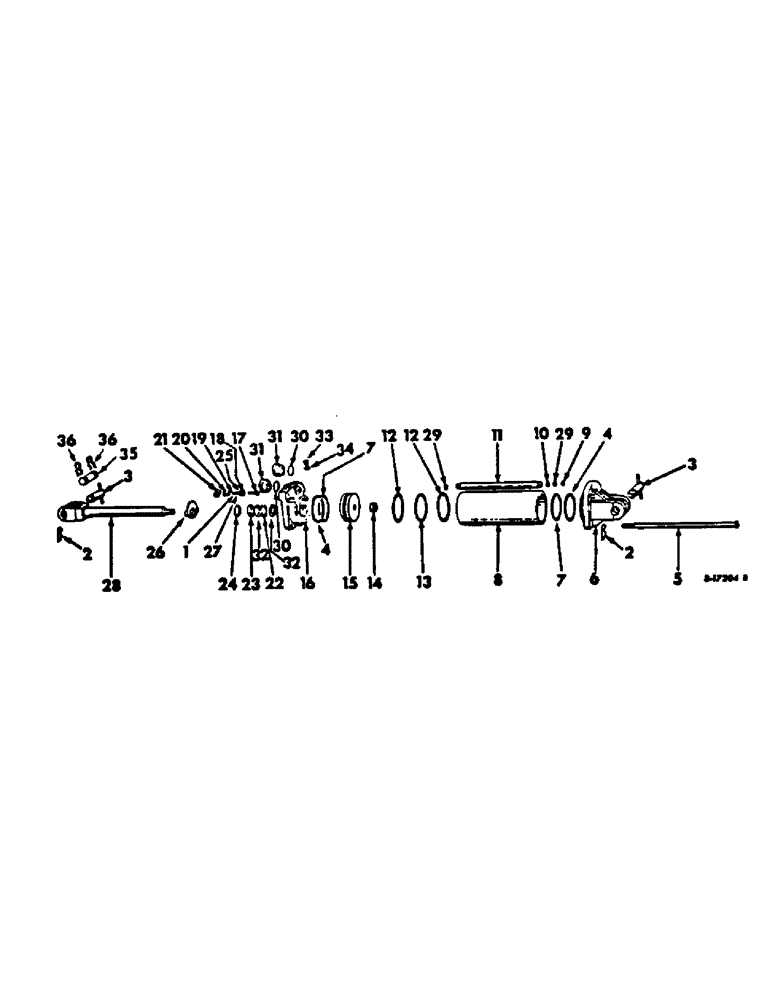

Запчасти Case IH 710 (AP-31) - HYDRAULIC CYLINDER, 2-1/2 X 8, DOUBLE ACTING

403843R92

CYLINDER ASSY, hyd

1шт.

1

404026R1

BACK-UP RING

o-ring back-up

1шт.

2

520175R1

CLIP

PIN, quick attachable cot.

2шт.

3

388695R31

PIN

ASSY, cyl pivot

2шт.

4

404036R1

WASHER, o-ring, back-up

2шт.

5

19383R1

ROD, tie

4шт.

12034871

WASHER

WASHER, LOCK, (5/8") M16

4шт.

120639

NUT, 5/8-11 hex.

8шт.

6

404041R1

HEAD, cyl rear

1шт.

7

343923R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2-1/4 x 2-1/2 x 1/8 front & rear head

2шт.

8

404042R1

SLEEVE, cyl

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back-up

2шт.

10

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

7/8 x 1-1/8 x 1/8 piston rod

1шт.

11

404023R1

TUBE

cyl return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

404040R1

WASHER, o-ring back-up

2шт.

13

21255R1

O-RING,2.1" ID x 2.52" OD x 0.21"

2 x 2-1/2 x 3/16 piston

1шт.

14

9416471

NUT

1-1/4 hex. lock

1шт.

15

404039R1

PISTON

1шт.

16

404035R1

HEAD, cyl front

1шт.

17

404029R1

LOCK VALVE

VALVE ASSY, limit stop

1шт.

18

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32 limit stop valve housing

1шт.

19

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16 limit stop valve housing

1шт.

20

404024R91

HOUSING

ASSY, limit stop valve

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

22

400744R1

RING

quad

1шт.

23

383770R1

WASHER

WIPER, piston rod

1шт.

24

383771R1

SEALING WASHER

RETAINER, piston rod wiper

1шт.

25

404028R1

BACK-UP RING

limit stop vlave housing o-ring

1шт.

26

404034R1

CLAMP

ASSY, stroke limit

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

2шт.

27

404027R1

RETAINER

limit stop valve o-ring

1шт.

28

404037R1

ROD ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 return tube

2шт.

30

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

31

941039

PINION

PLUG, front cylinder head

2шт.

32

403622R1

BACK-UP RING

WASHER, quad ring back-up

2шт.

33

404033R1

PLUG

front head

2шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

35

(Not used in this application)

1шт.

36

(Not used in this application)

1шт.

2751852R1

PRODUCT GRAPHIC, International

1шт.

2754241R1

PRODUCT GRAPHIC, hyd cyl

1шт.

527325R91

PACKAGE

1шт.

PACKAGE, hyd cyl seal ring, consists of (1) o-ring 21590R1, (1) o-ring 364839R1, (1) ring 400744R1, (2) o-ring 343923R1, (2) washer 371218R2, (2) washer 404036R1, (2) o-ring 377952R1, (1) o-ring 253070R1, (1) o-ring 21255R1, (2) washer 404040R1, (1) wiper 383770R1, (2) washer 403622R1, (1) washer 404026R1, (1) washer 404028R1, (1) o-ring 606271C1

1шт.
