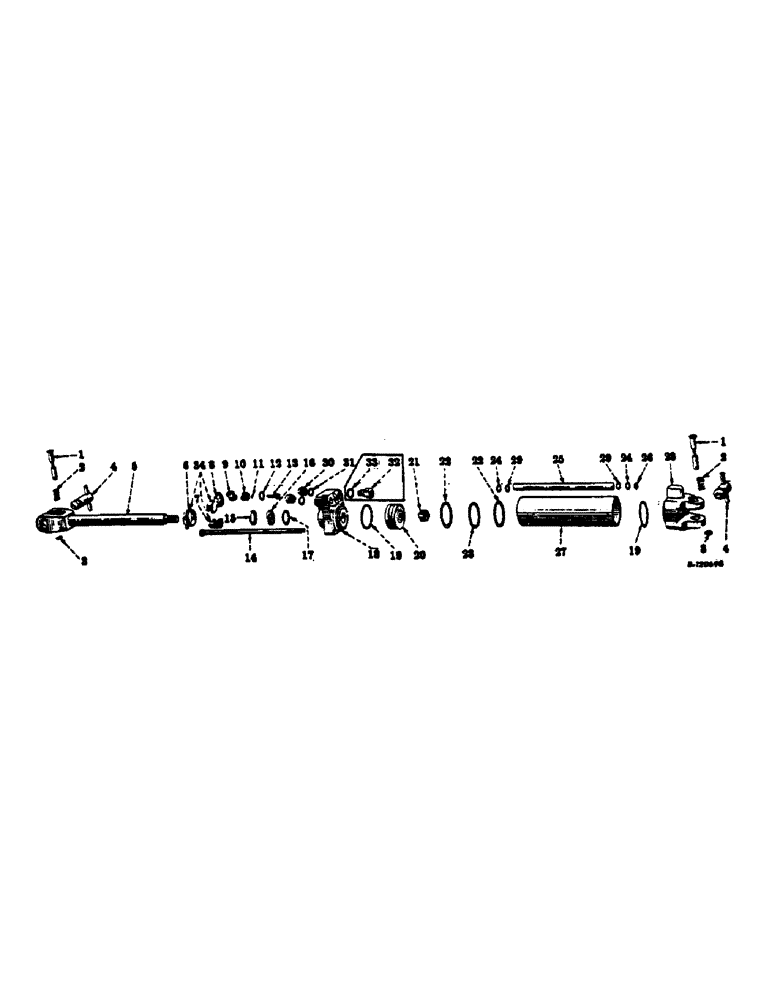

Запчасти Case IH 710 (AP-30) - HYDRAULIC CYLINDER, 2-1/2 X 8, DOUBLE ACTING

371291R97

CYLINDER

ASSY, hyd

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

354837R1

WASHER

lock pin

2шт.

4

352231R11

PIN

ASSY, pivot

2шт.

5

60784C91

ROD

ASSY, piston, replaces 361005R13 by also ordering pin 61571C1 and pin, 520175R1

1шт.

383669R1

BACK-UP RING

rod seat back up

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

61571C1

PIN

headed pivot

1шт.

6

361085R91

CLAMP

stroke limit collar

1шт.

7

360372R1

COLLAR

stroke limit plain half

1шт.

8

361010R1

COLLAR

stroke limit flanged half

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

10

361007R1

RETAINER ASSY, limit stop vlave, only serviceable item is o-ring retainer, 361008R1

1шт.

11

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16 limit stop valve

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32 limit stop valve retainer, large

1шт.

13

361006R11

VALVE

ASSY, limit stop

1шт.

14

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

7/16-14 x 12-1/8 hex-hd

4шт.

15

354049R1

RETAINER

dust seal

1шт.

16

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust piston rod

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

cylinder piston rod gland

1шт.

18

60794C91

HEAD

ASSY W/BALL AND TWO PLUGS, 50 410 DA. cylinder front, replaces 3712595R21 by also ordering washer 383669R1

1шт.

50410DA

PLUG

hydraulic cyl front

2шт.

19

343923R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2-1/4 x 2-1/2 x 1/8 class 6 hydraulic cylinder

2шт.

20

361000R1

HEAD

piston

1шт.

21

385020R1

NUT

3/4-16 hex. lock

1шт.

22

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

piston head back-up

2шт.

23

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16

1шт.

24

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 hydraulic cylinder return tube

2шт.

25

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

26

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

cylinder

1шт.

28

60791C1

HEAD

rear cylinder head, replaces 371296R3 by also ordering pin 61571C1 and pin 520175R1

1шт.

61571C1

PIN

headed pivot

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

29

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

return tube o-ring back up

1шт.

30

9410359

PLUG

front cylinder head

2шт.

31

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

32

372852R1

ADAPTER

cylinder hose, used w/head 371295R1 (NSS)

1шт.

33

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD

1шт.

34

375426R91

COLLAR

ASSY, stroke limit

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

thumb

1шт.

363137R94

PACKAGE

o-ring service, consists of (1) ring 21590R1, (2) ring 377952R1, (1) ring 350429R1, (1) ring 21255R1, (2) ring 343923R1, (1) retainer 354049R1, (1) washer 383669R1, (1) ring 354047R1, (1) seal 354048R1, (2) washer 371218R2, (2) washer 361013R1

1шт.

530708R91

PACKAGE

piston rod yoke, consists of (1) yoke 354046R4

1шт.

2751858R2

PRODUCT GRAPHIC, hyd cyl

1шт.
