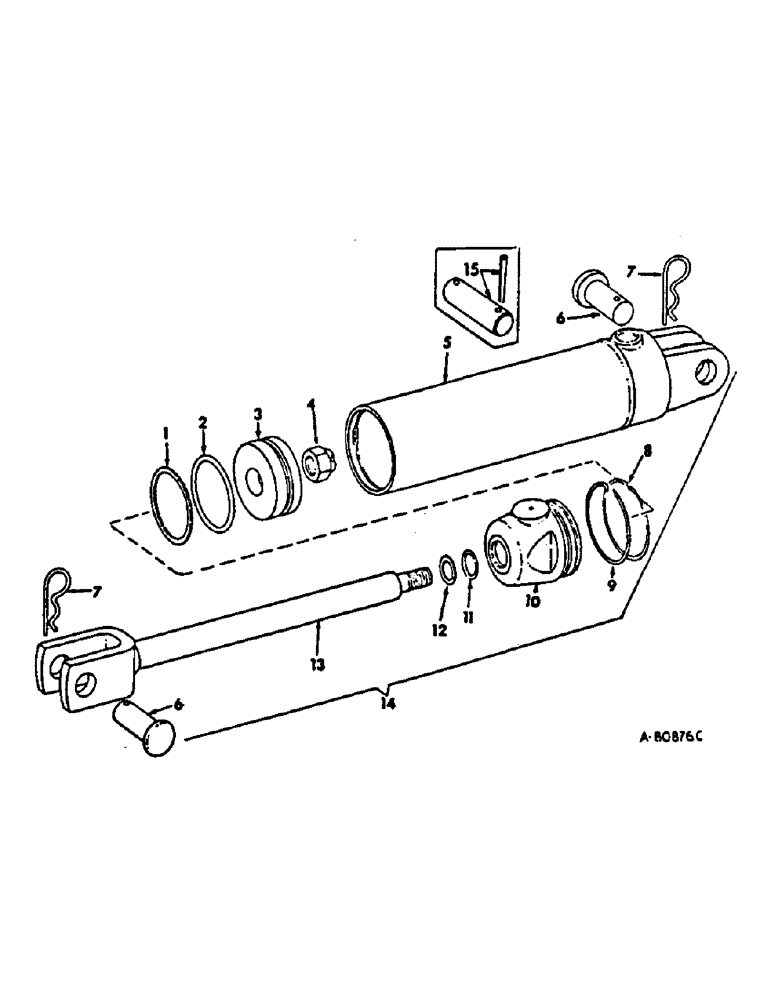

Запчасти Case IH 710 (AP-29) - HYDRAULIC CYLINDER, 3 X 8, SINGLE ACTING

1

381872R1

WASHER

piston head backup

1шт.

2

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8 x 3 x 3/16, piston head

1шт.

3

381869R1

PISTON

HEAD, piston

1шт.

4

385054R1

NUT

3/4-16 hex. lock

1шт.

5

381861R92

HYD TUBE,14.74" Length

TUBE ASSY, cylinder

1шт.

6

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 2-3/4 headed

2шт.

7

520175R1

CLIP

PIN, quick attachable type A

2шт.

8

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 x 1/8

1шт.

9

381873R1

RETAINER

cylinder end

1шт.

10

381804R21

HEAD ASSY.

HEAD ASSY, rod end

1шт.

11

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

12

354049R1

RETAINER

piston rod dust seal

1шт.

13

381842R91

ROD

ASSY, piston

1шт.

14

381853R94

CYLINDER

ASSY, hyd, 3 x 8

1шт.

15

(Not used in this application)

1шт.

386688R92

KIT

PACKAGE, hyd cyl o-ring service, consists of

1шт.

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

1шт.

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

354049R1

RETAINER

1шт.

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAR

1шт.

381872R1

WASHER

1шт.
