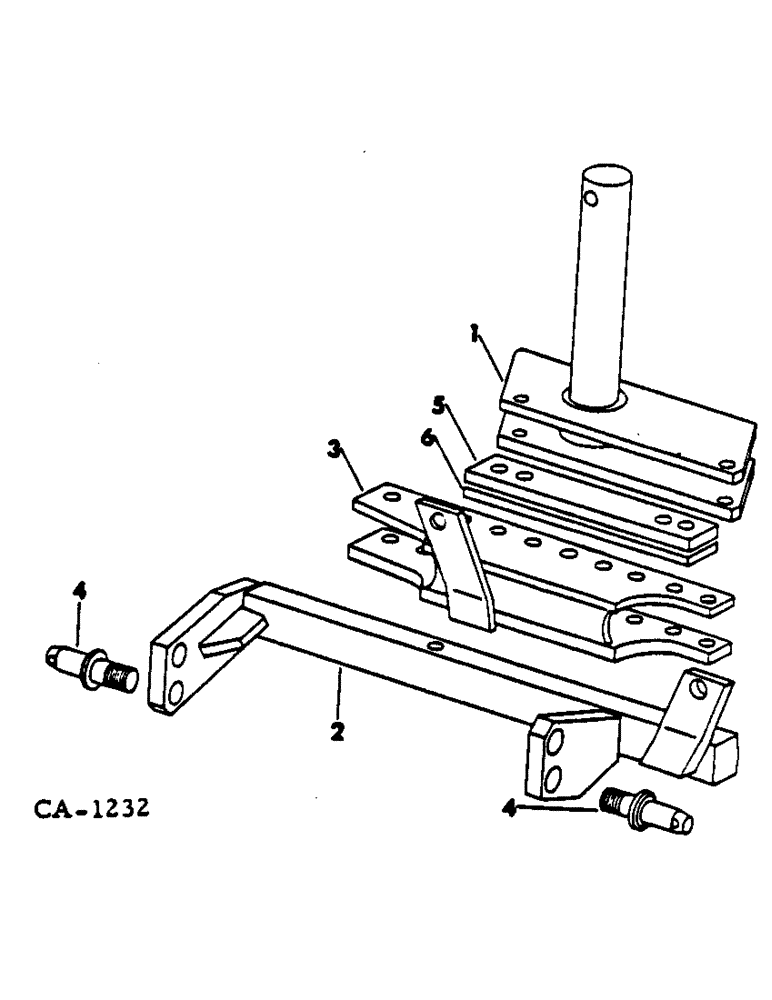

Запчасти Case IH 710 (AP-27) - THREE-POINT SHIFTING HITCH, IN THE FURROW

1

541190R1

PIVOT

ASSY, shifting hitch

1шт.

21720R1

WASHER

2-17/32 x 3-1/4 x 11 ga

3шт.

61625C1

WASHER

2.531 x 3.25 x .105 ht

1шт.

21386R1

BOLT,3/4" x 4 1/4", Gr 8

SCREW, 3/4-10 x 4-1/4 znd type 8 hex-hd cap

1шт.

22244R1

LOCK NUT

3/4-10 nylon znd insert

1шт.

2

492254R1

BAR

ASSY, shifting hitch cat, II

1шт.

3

492263R1

GUIDE

ASSY, shifting hitch

1шт.

Ref # 3 (492263R1) is a poor picture. The correct picture can be found in the 700 Moldboard Plow book on page AG-24 (in Support Pro), ref # 9. SMA 10/12/98

1шт.

21525R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 8

SCREW, 3/4-10 x 4-3/4 znd type 8 hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

16964R91

FITTING

1/4-28NS 90 deg lub

1шт.

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28NF, 2 str lub

1шт.

4

472790R1

STUD

hitch lower

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 znd hex.

2шт.

131049

HYD CONNECTOR

1-1/8 znd med lock

2шт.

5

541152R1

BAR

guide top

1шт.

6

541153R1

BAR

guide bottom

1шт.
