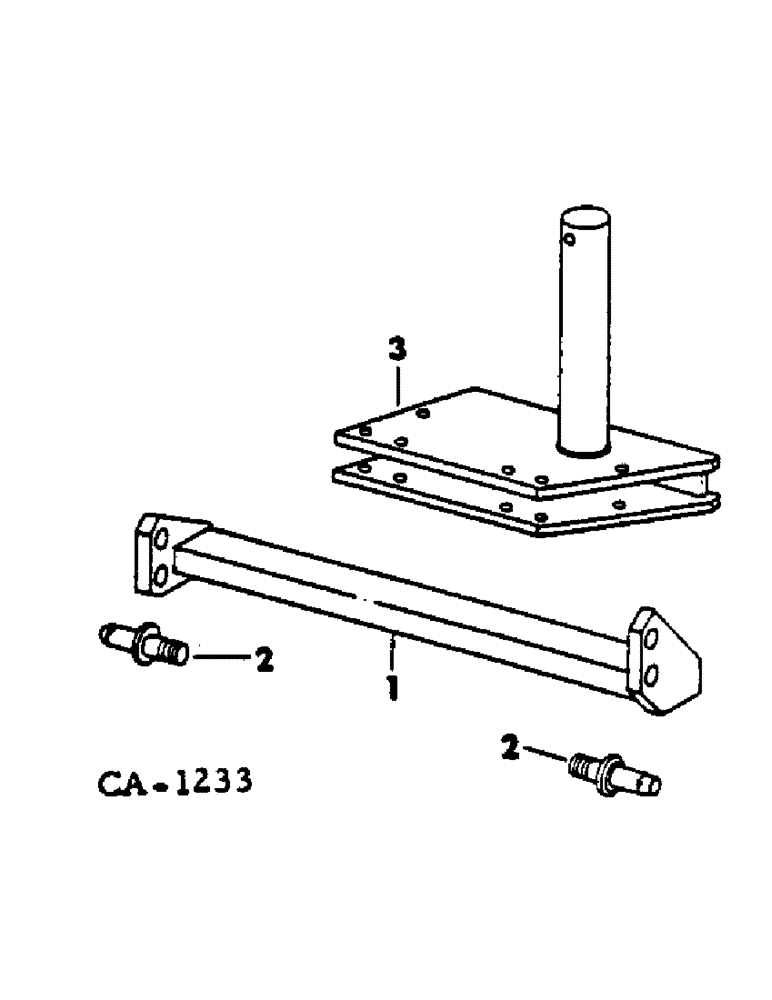

Запчасти Case IH 710 (AP-26) - THREE-POINT HITCH, RIGID

1

543273R1

BAR

ASSY, see note A

1шт.

1

543275R1

BAR

ASSY, see notes B and E

1шт.

1

541158R1

BAR

ASSY, see note C

1шт.

1

541160R1

BAR

ASSY, see note D

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

2

472790R1

STUD

hitch lower, see notes A and C

1шт.

2

483659R1

STUD

hitch lower, see notes B, D and E

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 znd hex.

2шт.

131049

HYD CONNECTOR

1-1/8 znd med lock

2шт.

3

541106R2

PIVOT

ASSY, drawbar, see notes C and D

1шт.

21720R1

WASHER

2-17/32 x 3-1/4 x 11 ga

3шт.

61625C1

WASHER

2.531 x 3.25 x .105 ht

1шт.

21386R1

BOLT,3/4" x 4 1/4", Gr 8

SCREW, 3/4-10 x 4-1/4 znd type 8 hex-hd cap

1шт.

22244R1

LOCK NUT

3/4-10 nylon zn insert

1шт.
