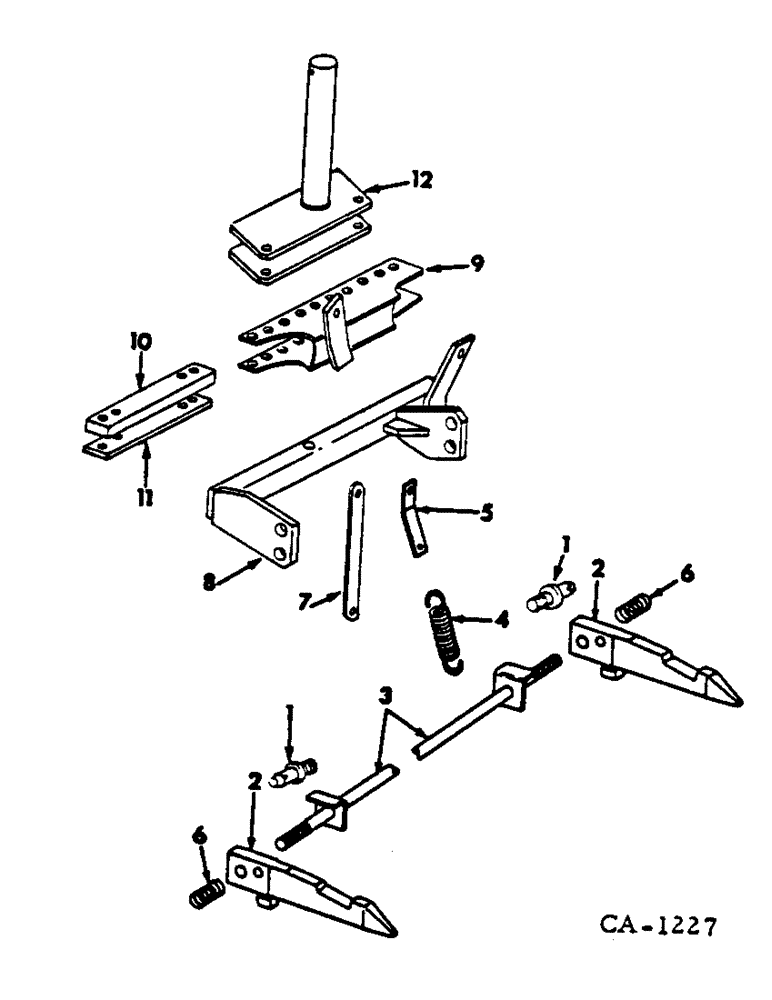

Запчасти Case IH 710 (AP-25) - TWO-POINT FAST SHIFTING HITCH

1

472790R1

STUD

hitch lower

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 znd hex.

2шт.

131049

HYD CONNECTOR

1-1/8 znd med lock

2шт.

2

471367R11

BEAM

ASSY, coupling

2шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

481000R91

ROD ASSY, tie

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

462248R1

LOCK NUT

3/4-10 hex. lock

2шт.

21657R1

PIN, 7/16 x 1-3/8 znp std-hd

2шт.

21633R1

PIN, 3/16 x 1-1/4 C-Z cot.

2шт.

4

PO193

SPRING

hold-up

1шт.

5

471369R2

LINK

hold-up spring

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

6

MA22649

SPRING

cushion 7-1/2 coils

1шт.

7

541162R1

LINK, hold-up spring

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 2 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

8

481884R92

BAR

DRAWBAR ASSY

1шт.

9

481879R92

SUPPORT ASSY.

GUIDE ASSY, shifting hitch

1шт.

21525R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 8

SCREW, 3/4-10 x 4-3/4 znd type 8 hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28NF-2 str lub

1шт.

16964R91

FITTING

1/4-28NS 90 deg lub

1шт.

10

541152R1

BAR

guide top

1шт.

11

541153R1

BAR

guide lower

1шт.

12

541190R1

PIVOT

ASSY, shifting hitch

1шт.

21720R1

WASHER

2-17/32 x 3-1/4 x 11 ga

3шт.

61625C1

WASHER

2.531 x 3.25 x .105 ht

1шт.

21386R1

BOLT,3/4" x 4 1/4", Gr 8

SCREW, 3/4-10 x 4-1/4 znd type 8 hex-hd cap

1шт.

22244R1

LOCK NUT

3/4-10 nylon zn insert

1шт.
