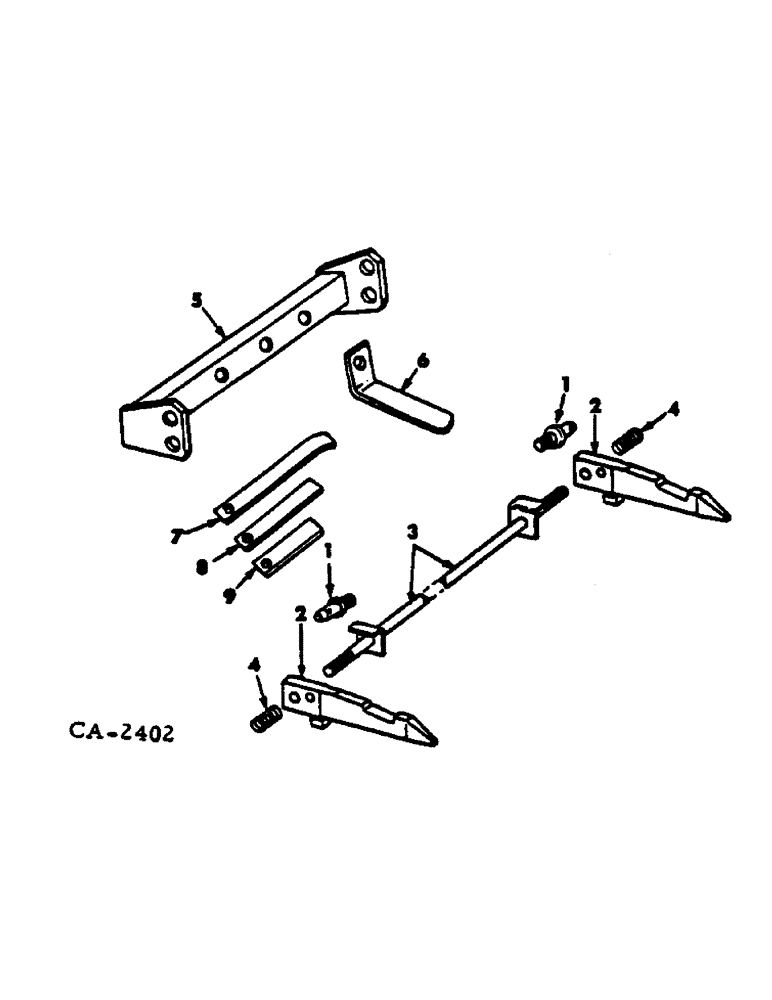

Запчасти Case IH 710 (AP-24) - TWO-POINT FAST HITCH, ON THE LAND PLOWS

1

472790R1

STUD

hitch lower

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 znd hex.

2шт.

131049

HYD CONNECTOR

1-1/8 znd med lock

2шт.

2

427367R11

BEAM ASSY, coupling

2шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 znd hex-hd cap

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

3

481000R91

ROD ASSY, tie

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

462248R1

LOCK NUT

3/4-10 hex. lock

1шт.

21657R1

PIN, 7/16 x 1-3/8 znd std hd

2шт.

21633R1

PIN, 3/16 x 1-1/4 znd std hd

2шт.

4

MA22649

SPRING

CUSHION, 7-1/2 coils

2шт.

5

543271R1

CROSSBAR ASSY

1шт.

6

543277R1

SPRING, holdup

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

543278R1

SPRING, upper support

1шт.

8

543279R1

SPRING, middle support

1шт.

9

543280R1

SPRING, lower support

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
