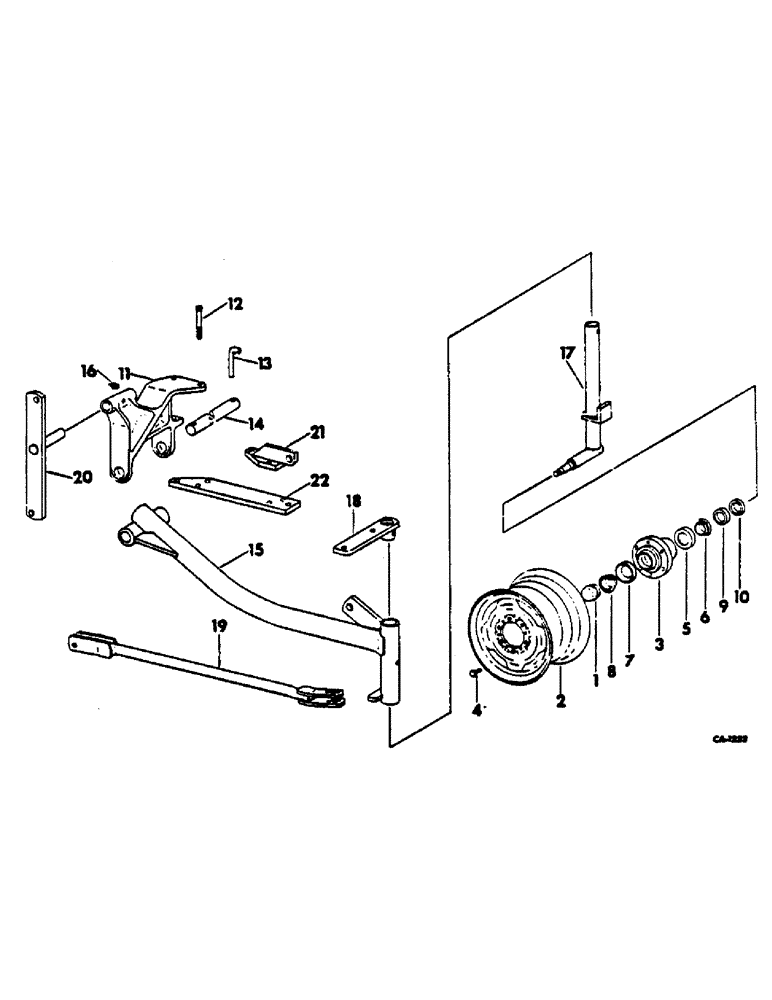

Запчасти Case IH 710 (AP-22) - SINGLE PIVOT REAR WHEEL, FOR 3 TO 4, 4 TO 5 AND 5 FURROW NON-EXTENDABLE

1

663908R1

CAP

hub

1шт.

2

622192R91

WHEEL

15 in. 6 bolt

1шт.

3

465493R2

HUB

wheel

1шт.

4

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel hub

6шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner roller

1шт.

6

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner roller cone

1шт.

7

371883R1

BEARING CUP

Wheel outer roller

1шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Wheel outer roller

1шт.

9

667564R1

RING

wear sleeve

1шт.

10

667599R91

OIL SEAL

oil

1шт.

11

541124R1

MOUNTING, rear wheel

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

23045R1

WASHER

21/32 x 1-3/4 x 16 ga znd

8шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

2шт.

20705R1

WASHER

1-25/32 x 2-1/2 x 16 ga C-Z

1шт.

21656R1

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

12

541125R1

BOLT,Spcl, Hex, 5/8" - 11 x 9"

special mtg

1шт.

13

471323R1

LINCH PIN

PIN, pivot lock

1шт.

14

541126R1

BAR, tail wheel pivot

1шт.

15

541127R1

TUBE ASSY, wheel

1шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28UNF str lub, in tubes

3шт.

17

541135R1

AXLE

SPINDLE ASSY, rear wheel

1шт.

488175R1

WASHER

2-1/32 x 3 x 16 ga C-Z

3шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

69442D

NUT

3/4-16 slt hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

18

541136R1

ARM ASSY, rear steering

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 znd hex-hd cap

1шт.

22244R1

LOCK NUT

3/4-10 zn nylon insert

1шт.

22218R1

SCREW

3/8-11 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 znd hex. jam

1шт.

19

541139R1

TUBE ASSY, rear steering

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2-1/2 C-Z std hd

2шт.

21645R1

PIN, 1/4 x 1-3/8 C-Z cot.

2шт.

517843R1

COTTER PIN

PIN, Q.A. cot.

1шт.

20

541142R1

ARM ASSY, center steering

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

1шт.

21637R1

PIN, 1/4 x 1-3/4 C-Z cot.

1шт.

21

541145R1

ANCHOR ASSY, cyl

1шт.

17242R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW, 3/4-10 x 8 hex-hd cap

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

22

541148R1

SUPPORT, mtg

1шт.

Q5109

HEADED PIN,7/8" x 4 1/4"

PIN, 7/8 x 4-1/4 std-hd

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

21224R1

WASHER

29/32 x 1-1/2 x 7 ga C-Z

10шт.

519765R1

SPACER

1 x 1-1/4 extra strong pipe

1шт.
