Запчасти Case IH 710 (AP-20) - REAR FURROW WHEEL, FOR 4 THRU 8 FURROW PLOWS EQUIPPED W/GAUGE WHEEL

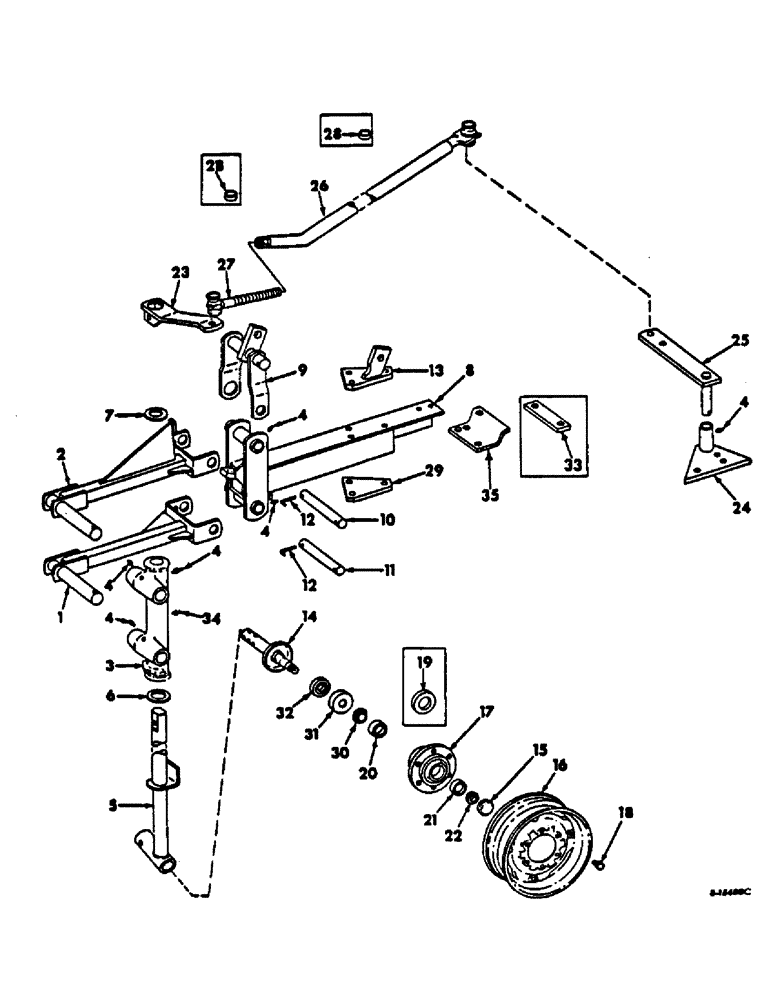

Схема запчастей Case IH 710 - (AP-20) - REAR FURROW WHEEL, FOR 4 THRU 8 FURROW PLOWS EQUIPPED W/GAUGE WHEEL

Артикул

Название

Примечание

Количество

1

484986R3

ARM

ASSY, lower

1шт.

2

484989R3

ARM

ASSY, upper

1шт.

3

482790R1

HOUSING, rear axle

1шт.

609376R1

WASHER

1-25/32 x 2-1/2 x 11 ga C-Z

2шт.

20705R1

WASHER

1-25/32 x 2-1/2 x 16 ga C-Z

2шт.

21653R1

COTTER PIN,3/8" x 2 1/4"

Pin, Split (Cotter), 3/8" x 2 1/4"

2шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 28 NF 2 str lub

9шт.

5

482791R95

AXLE

ASSY, rear

1шт.

6

488175R1

WASHER

2-1/32 x 3 x 16 ga, below rear housing

1шт.

7

488175R1

WASHER

2-1/32 x 3 x 16 ga, between rear steering arm

1шт.

8

482793R94

BRACKET ASSY, rear wheel

1шт.

485708R1

BOLT,Hex, 3/4" - 10 x 3", Full Thd

SCREW, 3/4-10 x 3 hex-hd special

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 znd hex. jam

1шт.

9

482800R91

ROCKSHAFT

ASSY

1шт.

10

482805R1

PIN

BAR, top

1шт.

11

482806R2

BAR

lower

1шт.

12

471323R1

LINCH PIN

PIN, pivot lock

2шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

2шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

2шт.

13

482807R91

BRACKET

ASSY, cyl anchor, for 5 and 6 furrow

1шт.

13

547217R2

BRACKET

ASSY, cyl anchor, for 7 and 8 furrow

1шт.

22847R1

BOLT,Hex, 3/4" - 10 x 12", Gr 8

SCREW, 3/4-10 x 12 type 8 hex-hd cap

3шт.

473244R1

LOCK NUT,3/4"-10, GB

WASHER, 3/4-10 cdp hex. lock

3шт.

14

486378R1

SPINDLE

ASSY, wheel

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

69442D

NUT

3/4-16 slt-hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

15

663908R1

CAP

hub

1шт.

16

622192R91

WHEEL

15 x 5KB rim, for 5 and 6 furrow

1шт.

16

481344R91

WHEEL

14 x 8KB rim, for 7 and 8 furrow

1шт.

17

465493R2

HUB

wheel

1шт.

18

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel hub

1шт.

19

(Not used in this application)

1шт.

20

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner roller

1шт.

21

371883R1

BEARING CUP

Wheel outer roller

1шт.

22

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Wheel outer roller

1шт.

23

482815R92

ARM

ASSY, rear steering

1шт.

271798

BOLT

3/4-NF x 3-1/4 type 5

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, znp nylon insert

1шт.

24

489852R2

BAR

ASSY, brg, for 18 in. bottoms

1шт.

24

482817R92

SUPPORT

BAR ASSY, brg, for 16 in. bottoms

1шт.

17287R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 hex-hd cap

2шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cdp hex. lock

2шт.

25

482820R91

ARM

BAR ASSY, center steering arm

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

1шт.

21637R1

PIN, 1/4 x 1-3/4 C-Z self-opening cot.

1шт.

26

489854R1

PIPE ASSY, rear steering, for spring trip

1шт.

26

489856R1

TUBE

PIPE ASSY, rear steering, for automatic trip

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 znd hex-hd cap

1шт.

522473R1

WASHER

.766 x 1.75 x .125 ht

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

1шт.

27

489858R2

LINK ASSY.

LINK ASSY, front adjustable

1шт.

516773R1

NUT

1-8 C-Z hex. jam

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

2шт.

522473R1

WASHER

.766 x 1.75 x .125 ht

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

1шт.

28

(Not used in this application)

1шт.

29

482809R1

BAR

cyl reinforcement, for 5 and 6 furrow

1шт.

29

547219R1

BAR

cyl reinforcement, for 7 and 8 furrow

1шт.

22847R1

BOLT,Hex, 3/4" - 10 x 12", Gr 8

3/4 x 12 pln type 8

3шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cdp hex. lock

1шт.

30

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner roller cone

1шт.

31

667564R1

RING

wear sleeve

1шт.

32

667599R1

SEAL, oil

1шт.

33

484993R1

BAR

tie strap, 4 furrow

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

34

16964R91

FITTING

1/4-28 NS 90 deg lub

1шт.

35

61038C1

ANCHOR

tie rod, 5, 6, 7 and 8 furrow

1шт.

NLS

NO LONGER SERVICED

SCREW 5/8-11 x 1-3/4 znd hex-hd cap

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 znd hex. lock

2шт.

Выбрано товаров: 75
