Запчасти Case IH 710 (AP-18) - FRONT FURROW WHEEL, FOR 5 THRU 8 FURROW, ON THE LAND

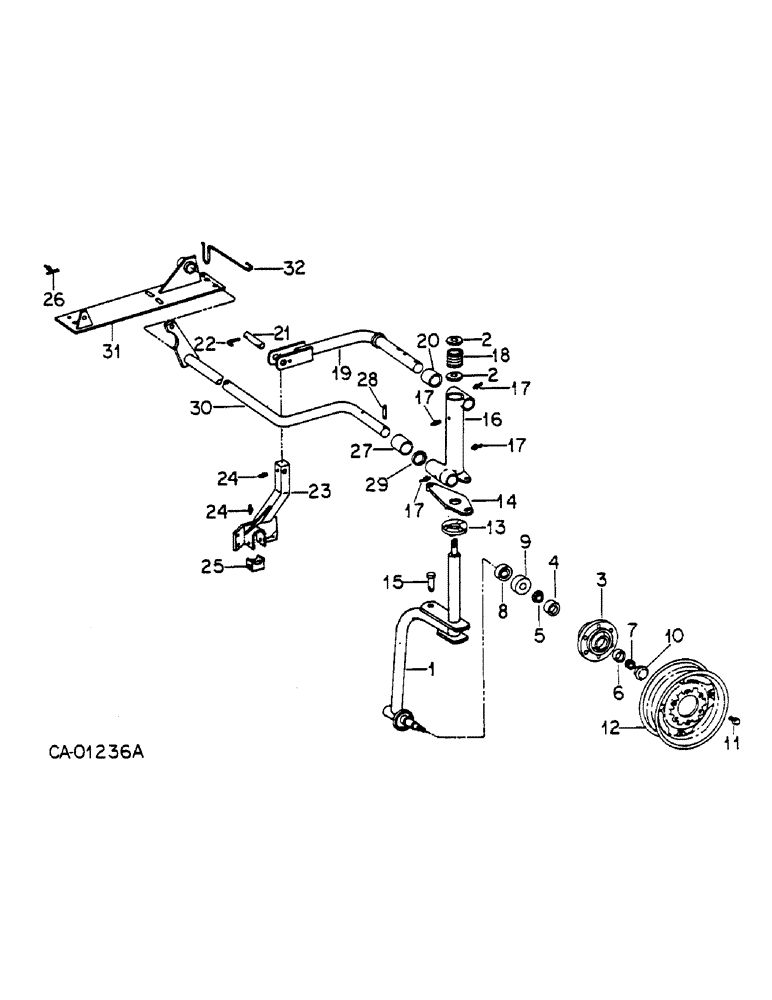

Схема запчастей Case IH 710 - (AP-18) - FRONT FURROW WHEEL, FOR 5 THRU 8 FURROW, ON THE LAND

Артикул

Название

Примечание

Количество

1

491547R1

AXLE ASSY, caster wheel

1шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z

1шт.

426898

NUT,Jam, 7/8"-9, G5

7/8-9 znd hex. jam

2шт.

2

491554R1

WASHER

retainer

2шт.

3

465496R11

HUB

ASSY, 6 bolt wheel

1шт.

4

663558R1

BEARING CUP

BEARING, wheel hub inner cup

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, wheel hub inner cone

1шт.

6

651817R1

BEARING CUP

BEARING, wheel hub outer cup

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub outer cone

1шт.

8

654674R91

OIL SEAL

wheel hub oil

1шт.

9

654675R1

RING

oil seal wear

1шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 ga

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

10

663906R1

CAP

hub

1шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 wheel

6шт.

12

622192R91

WHEEL

15 in.

1шт.

13

491555R1

CAM

caster wheel bottom

1шт.

14

491556R1

CAM

caster wheel top

1шт.

15

(Not used in this application)

1шт.

16

491558R1

HOUSING, front caster wheel

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

1шт.

20033R1

LOCK NUT

NUT, 5/8-11 cdp nylon insert

1шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub

4шт.

18

U13661

VALVE SPRING

SPRING, axle compression

1шт.

19

485647R3

ARM

ASSY, frt furrow wheel

1шт.

21719R1

WASHER

2-1/32 x 2-3/4 x 11 ga C-Z

5шт.

20

488439R1

SPACER

front furrow wheel arm

1шт.

20

493745R1

SPACER

front furrow wheel arm

1шт.

21

485644R1

PIN

front furrow

1шт.

21656R1

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

22

471323R1

LINCH PIN

PIN, front furrow wheel arm lock

1шт.

21652R1

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

23

543252R2

SUPPORT

ASSY, axle

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 znd hex-hd cap

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

3шт.

130999

WASHER,5/8"

11/16 x 1-3/4 x .108 znd

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

2шт.

25

482872R1

CAP

BEARING, outer block

1шт.

26

543261R1

SCREW

ASSY, cyl thumb

1шт.

27

488438R1

SPACER

front lift axle

1шт.

27

547216R1

SPACER

axle, used adjacent to lift arm on 7 and 8 furrow plows

1шт.

28

482877R1

PIN

front axle

2шт.

21629R1

PIN, 1/8 x 7/8 C-Z cot.

4шт.

29

482876R1

WASHER

front lift

6шт.

21654R1

PIN, SPLIT (COTTER),3/8" x 3"

1шт.

30

543258R1

AXLE

ASSY, front furrow, for 5 and 6 furrow

1шт.

30

547214R1

AXLE

ASSY, front furrow, for 7 and 8 furrow

1шт.

31

543262R1

BEARING ASSY

ASSY, axle

1шт.

32

(Not used in this application)

1шт.

Выбрано товаров: 52
