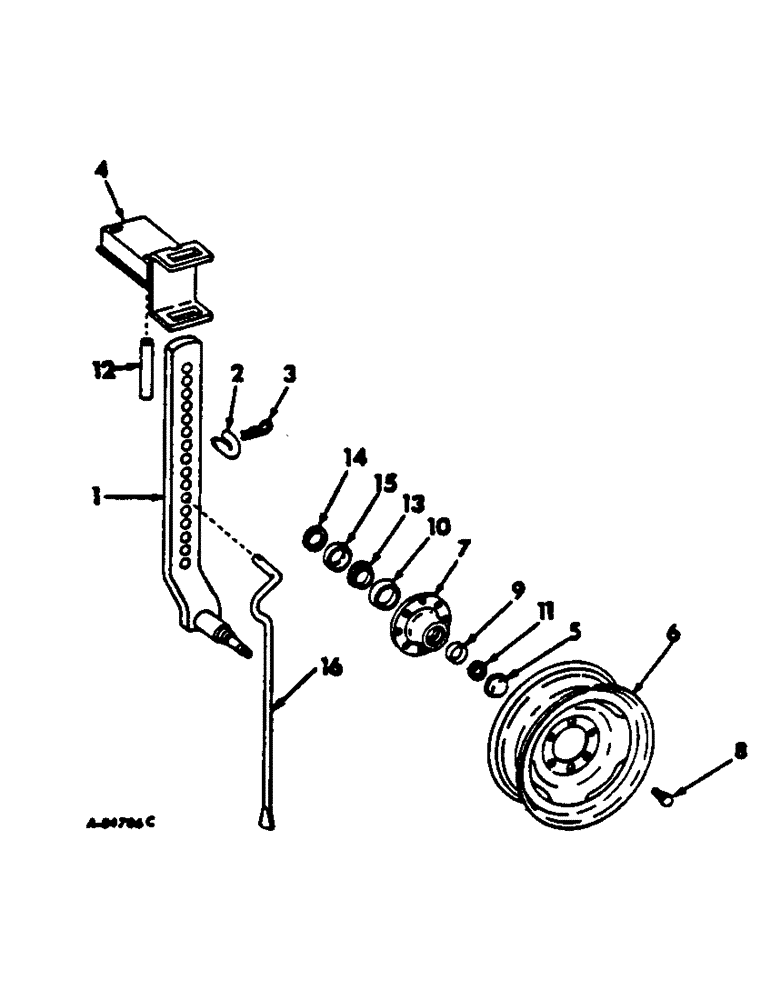

Запчасти Case IH 710 (AP-17) - GAUGE WHEEL, FOR 4 THRU 8 FURROW

1

484996R4

SUPPORT ASSY.

STAND ASSY

1шт.

396857R1

WASHER

1шт.

69442D

NUT

3/4-16 slt-hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

520620R1

AXLE PIN

PIN, standard retaining, for 5 and 6 furrow

1шт.

3

517843R1

COTTER PIN

PIN, quick attachable cot., for 5 and 6 furrow

1шт.

4

547221R1

BRACKET

ASSY, will work for 482945R94

1шт.

25663

SCREW, 3/8-11 x 10-1/2 hex-hd cap

1шт.

note: under item #4 , 25663 bolt, this is a 5/8-11 by 10-1/2" bolt that is an invalid part. 413-10160 is a 5/8-11 by 10" that may work. djo 5/14/97

1шт.

464623R1

WASHER

21/32 x 11 ga C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

5

663908R1

CAP

hub

1шт.

6

481344R91

WHEEL

14 in., for 5 thru 8 furrow, recommend 9.5L-14 6 ply tire

1шт.

6

622192R91

WHEEL

15 in., for 5 and 6 furrow

1шт.

7

465493R2

HUB

wheel

1шт.

110046R91

FITTING, 1/4-28 str lub

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

6шт.

9

371883R1

BEARING CUP

Outer

1шт.

10

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

11

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

1шт.

12

484994R1

SPACER

bracket, for 5 and 6 furrow

1шт.

25663

SCREW, 5/8-11 x 10-1/2 hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

12

547224R1

SPACER, bracket, for 7 and 8 furrow

1шт.

13

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, inner cone

1шт.

14

667599R91

OIL SEAL

oil

1шт.

15

667564R1

RING

wear sleeve

1шт.

16

490680R1

ROD

BAR, gauge wheel, for 5 and 6 furrow

1шт.
