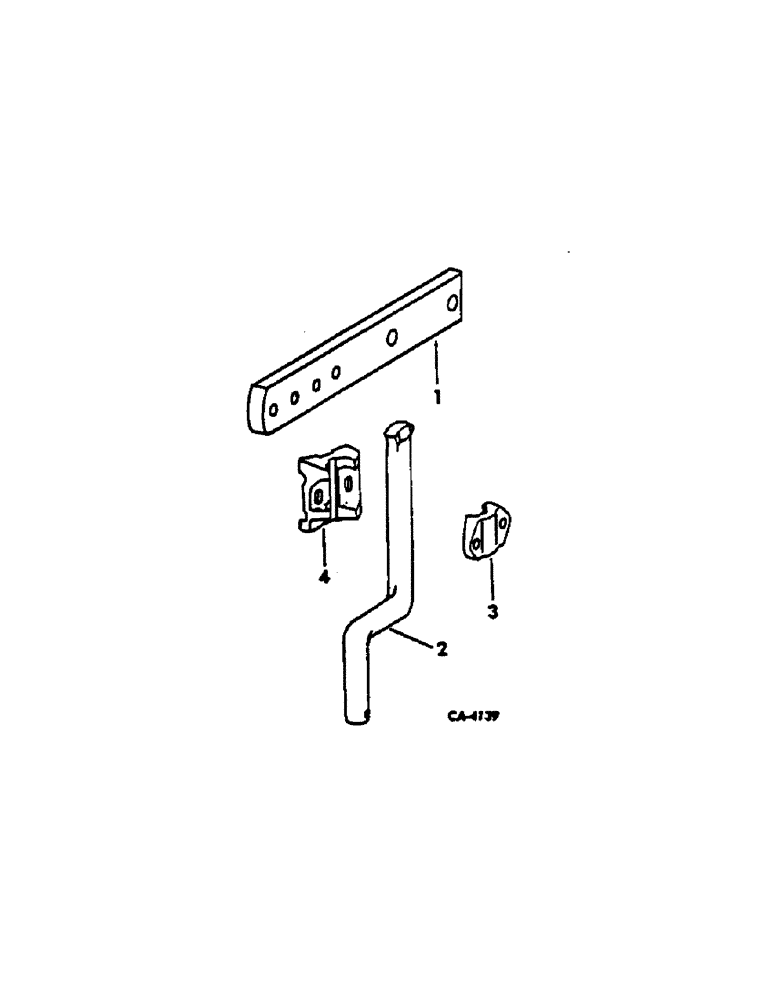

Запчасти Case IH 710 (AP-15) - COLTER ATTACHING PARTS, FLAT COLTER RAIL, ONE PER COLTER

1

60985C1

RAIL

BAR, colter

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap, 2 for automatic trip

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 znd hex-hd cap, 2 for spring trip

1шт.

280954

NUT,3/4"-10, G5

1 per screw 3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per screw

1шт.

2

488792R1

SHANK

colter

1шт.

21641R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), , self-opening 5/16" x 2 1/4"

1шт.

3

524492R1

CLAMP

CAP, clamp, for rear colter

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 znd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

4

524456R3

CLAMP

colter

1шт.
